ABS analog controller, 2 ch, 65 W (LS-CTL-0505)

Model LS-CTL-0505

Channels2
Output24V
Total output65 W
Controlno
TriggerLevel trigger

$259.00

Ships in 2-3 weeks

0.7 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Controller section 'ABS analog controller' of the light controller selection manual (cards P19-P20).

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0505
Working mode	0: normally off, 1: on
Manual page code	P19
Control	Analog knob (stepless)

Interfaces and I/O

Communication baud rate	no

Light

Connected light source type	10mA~1A 24V power supply
Brightness levels	Stepless
Luminous mode	Normally on / normally off

Environment and compliance

Operating temperature	-5~50 C

Electrical

Output voltage	24V
Number of channels	2
Built-in power supply	65W
Max input voltage	220VAC
Max output voltage	24V
Max current per channel	1A
Overheat protection	No
Short-circuit protection	No
Millisecond strobe time	no
Microsecond strobe time	no
Trigger mode	Level trigger
Driving mode	Stepless analog constant voltage
Total output (W)	65

Mechanical

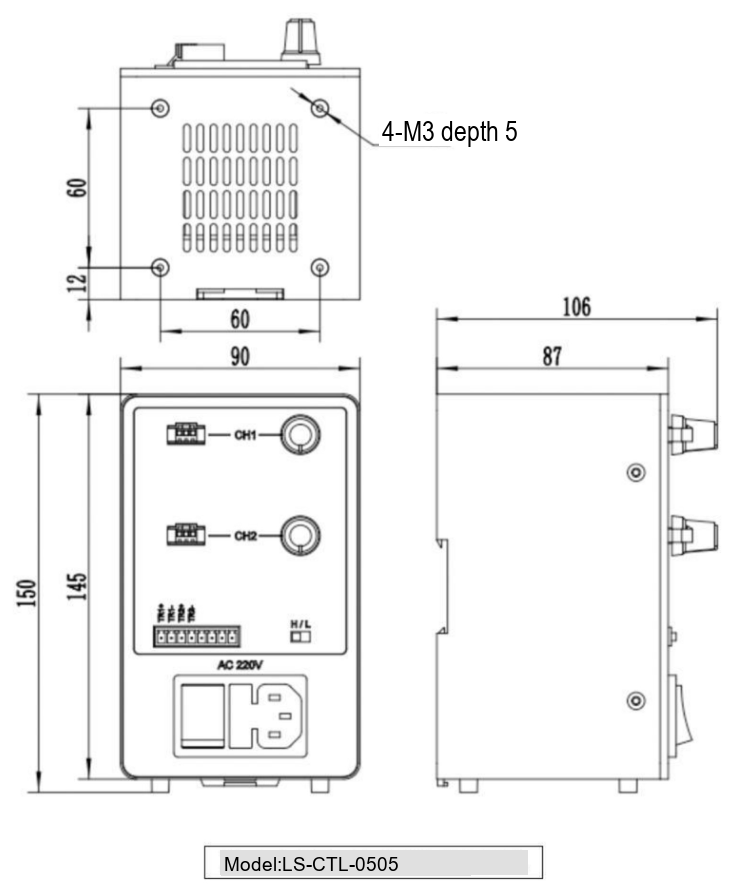

Dimension	90 x 106 x 150 mm
Mounting	Screw or C45 rail installation
Shipping weight	0.70 kg
