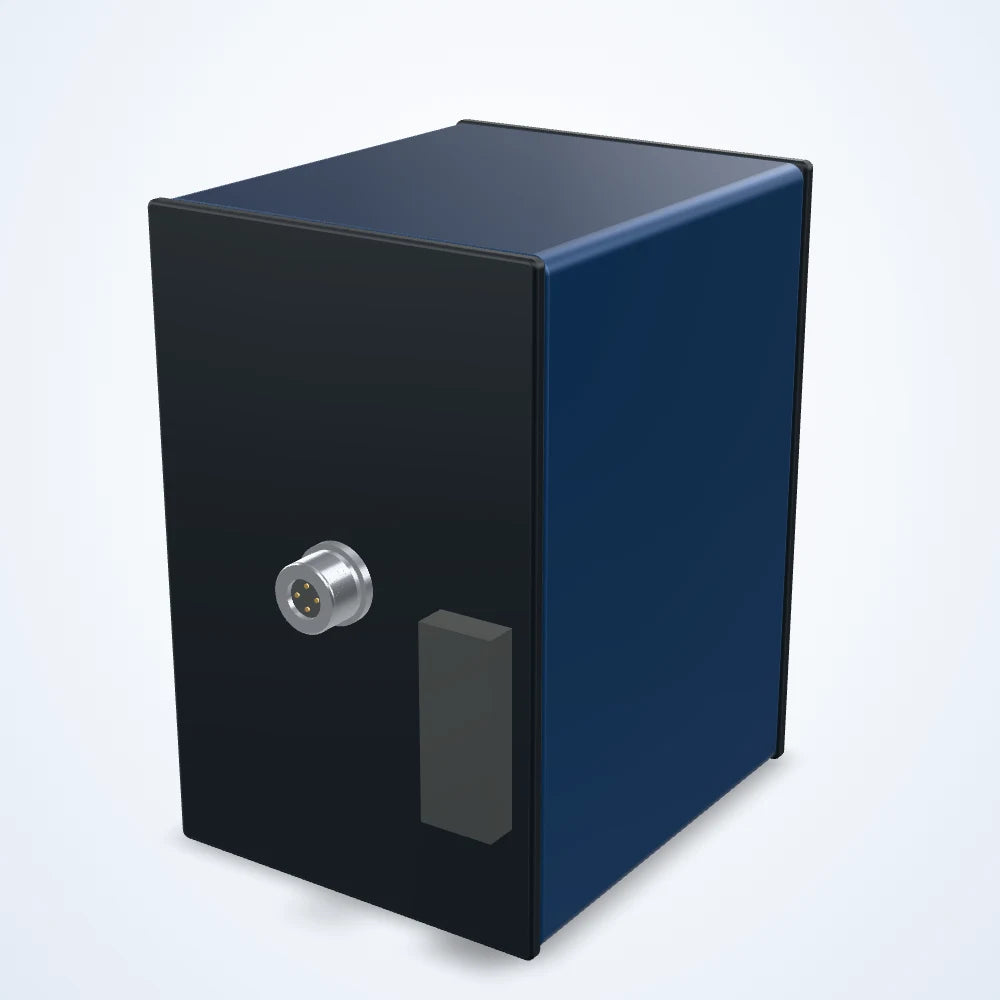

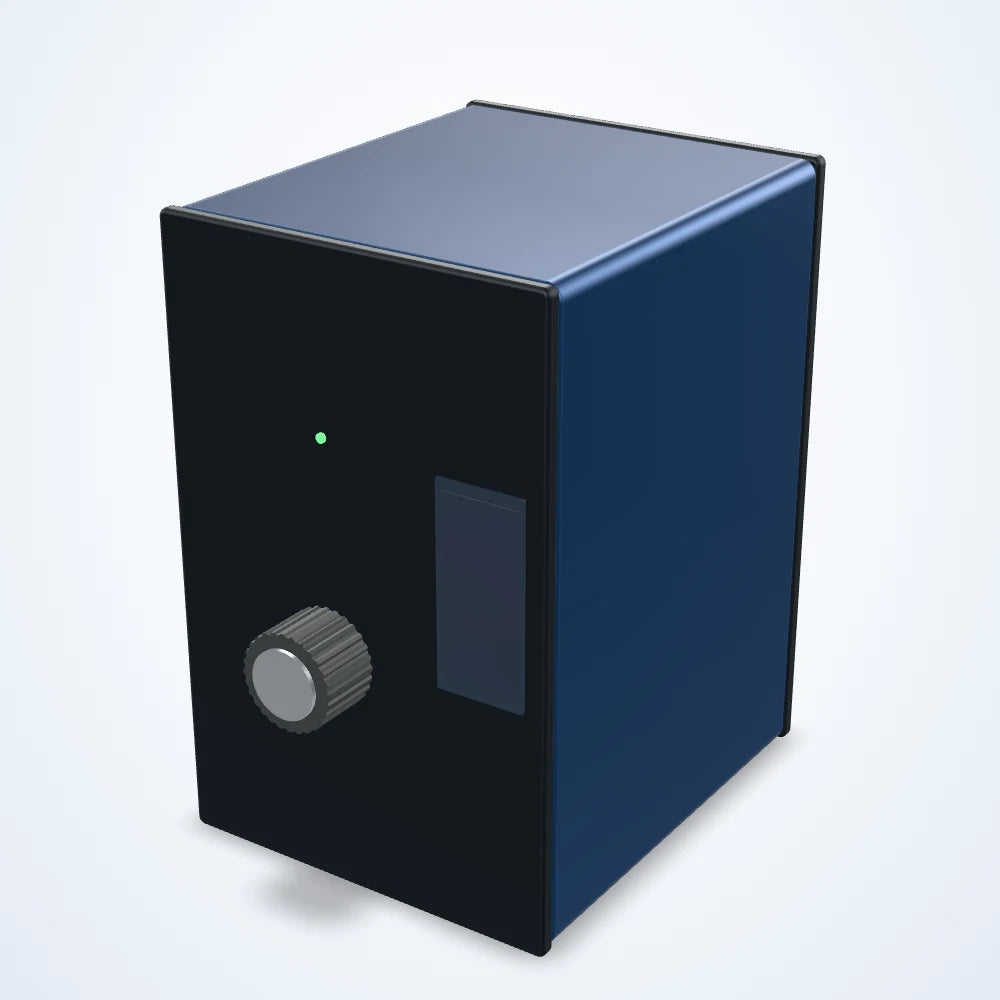

Rendered illustration: the actual product may differ in appearance.
Light controllers
2-channel 48 V analog line light controller, 600 W (LS-CTL-0466)
Model LS-CTL-0466
- Channels2
- Output48 V
- ControlAnalog
- Output power600 W
$725.00
Ships in 3-4 weeks
3.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Analog line light controller for powering, dimming and strobing LED lights. 2 output channel(s).
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0466 |
|---|---|
| Light Control | Panel Button / Serial Port |
| Manual Adjustment Level | 256 Levels |
| Remote Control | RS232 Serial Communication |
| Cooling method | Forced cooling |
Interfaces and I/O
| Connector | 19M-6 |
|---|
Environment and compliance
| Operating environment | Temperature: 0 ~ 40 °C Humidity: 20~85%RH (non-condensation) |
|---|---|
| Storage environment | Temperature: -20~+60 °C Humidity: 20~85%RH(non-condensation) |
Electrical
| Output power | 600 W |
|---|---|
| Output voltage | 48 V |
| Channels | 2 |
| Supply voltage | AC180-240 V 50/60 Hz 700VA |
| Output Type | Constant Current |
| Power | ≤600 W |
| Trigger Delay | <150 us |
| External Trigger Voltage | DC5V-24 V(Maximum Current 5.6 mA) |
| Drive mode | Constant Current |
| Output current | Total:12A Single:6A |
Mechanical
| Shipping weight | 3.00 kg |
|---|
Other models in the Analog line light controllers (LS-CTL-S94) series
See all 10 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CTL-0460 | 2 ch | $120.00 | Ships in 3-4 weeks | View |
| LS-CTL-0461 | 4 ch | $150.00 | Ships in 3-4 weeks | View |
| LS-CTL-0462 | 1 ch, 300 W | $480.00 | Ships in 3-4 weeks | View |
| LS-CTL-0463 | 2 ch, 300 W | $640.00 | Ships in 3-4 weeks | View |
| LS-CTL-0464 | 1 ch, 600 W | $695.00 | Ships in 3-4 weeks | View |
| LS-CTL-0465 | 2 ch, 600 W | $695.00 | Ships in 3-4 weeks | View |
| LS-CTL-0467 | 1 ch, 800 W | $725.00 | Ships in 3-4 weeks | View |
| LS-CTL-0468 | 2 ch, 800 W | $1,020.00 | Ships in 3-4 weeks | View |
| LS-CTL-0469 | 1 ch, 1200 W | $1,070.00 | Ships in 3-4 weeks | View |
