Analog LED light controller (series view)

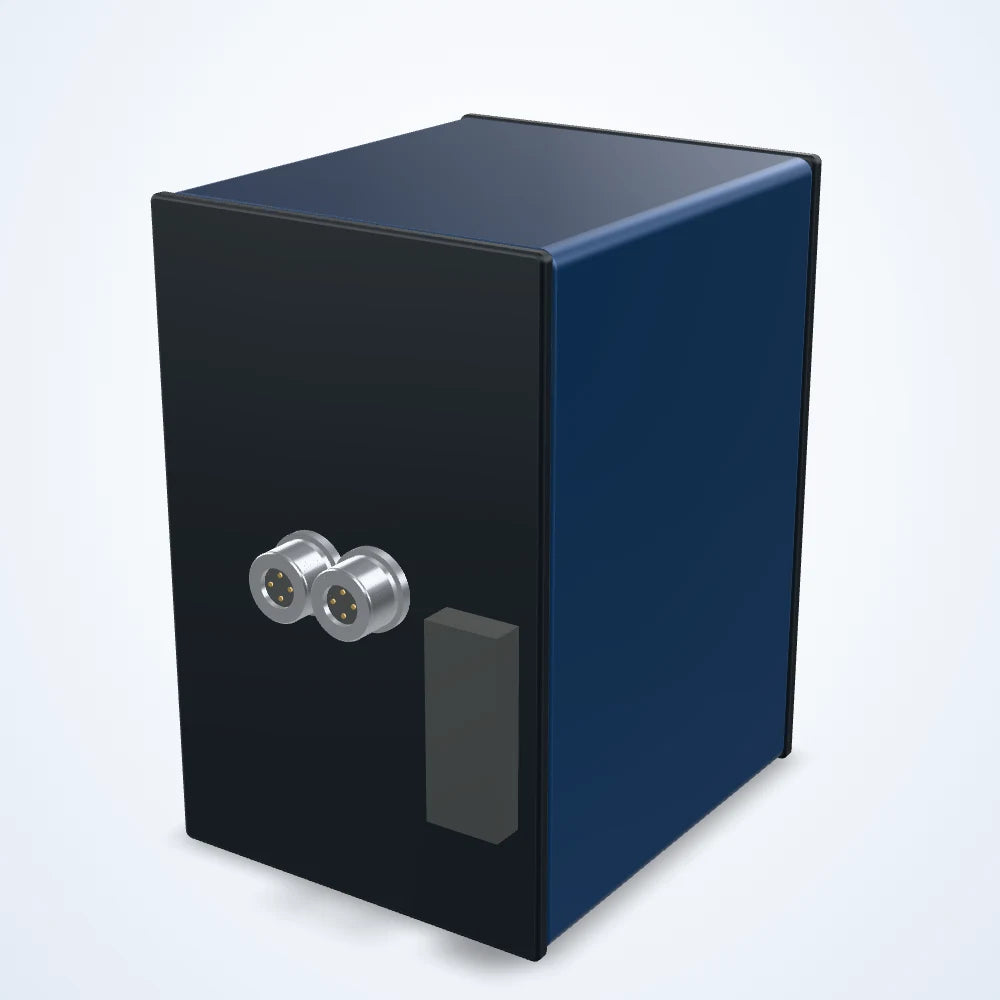

  • Analog LED light controller (series view)

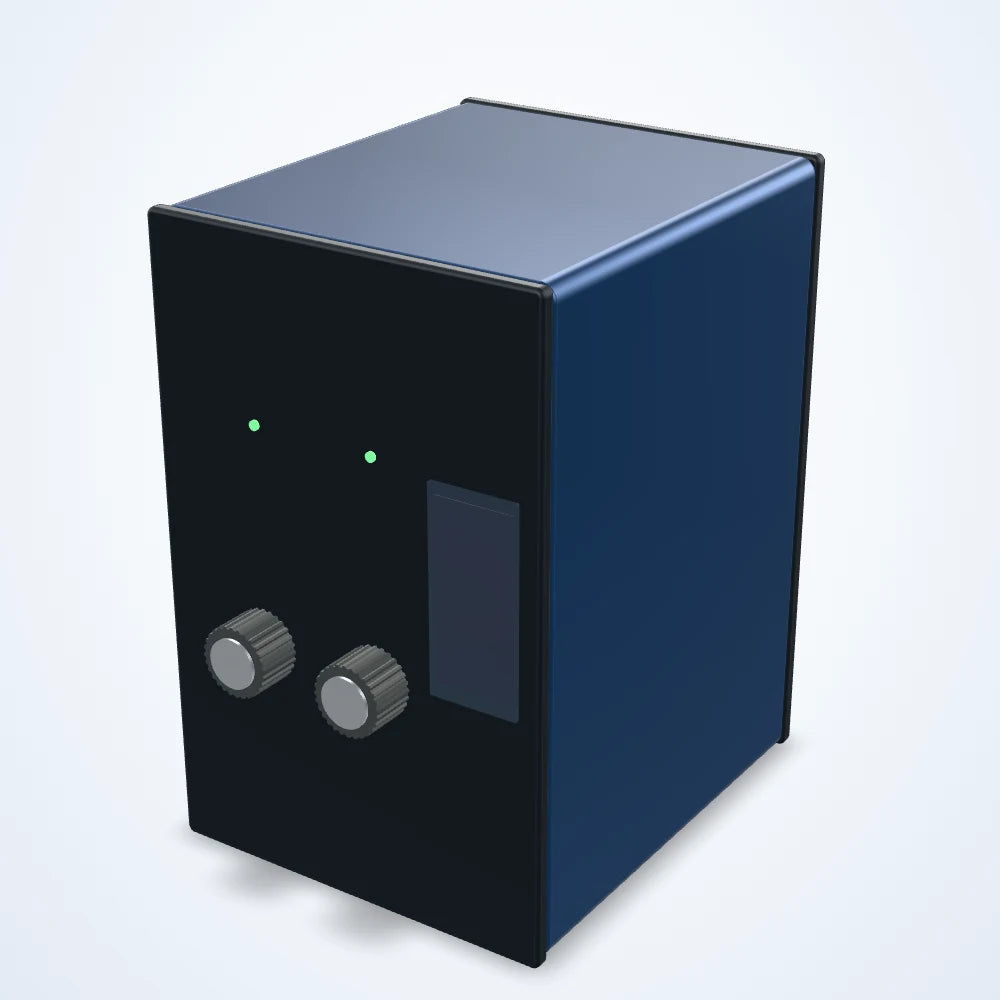

  • Analog LED light controller (series view)
  • 2-channel 5 V analog LED light controller

Rendered illustration: the actual product may differ in appearance.

Light controllers

2-channel 5 V analog LED light controller (LS-CTL-0460)

Model LS-CTL-0460

  • Channels2
  • Output5 V
  • TriggerPositive/Negative
  • ControlAnalog
$120.00

Ships in 3-4 weeks

3.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2-channel 5 V analog LED light controller (LS-CTL-0460)LS-CTL-0460

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Analog LED light controller for powering, dimming and strobing LED lights. 2 output channel(s).

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0460
PMW Frequency47~63 Hz
Constant Precision≤2%
Knob Adjust Angle300°
SurfacingSpray-paint

Interfaces and I/O

ConnectorSMP-03 V

Environment and compliance

Operating temperature0 ~ 40 °C
Storage temperature-10 ~ 50 °C

Electrical

Output voltage5 V
Channels2
Supply voltage88~264VAC
Output TypeConstant Current
Output Adjustable Range0~3 W
Mini Cut-off Current0 mA
Trigger modePositive/Negative
Trigger level3.3~12 V
Drive modeConstant Current
PowerTotal:6 W Single:3 W

Mechanical

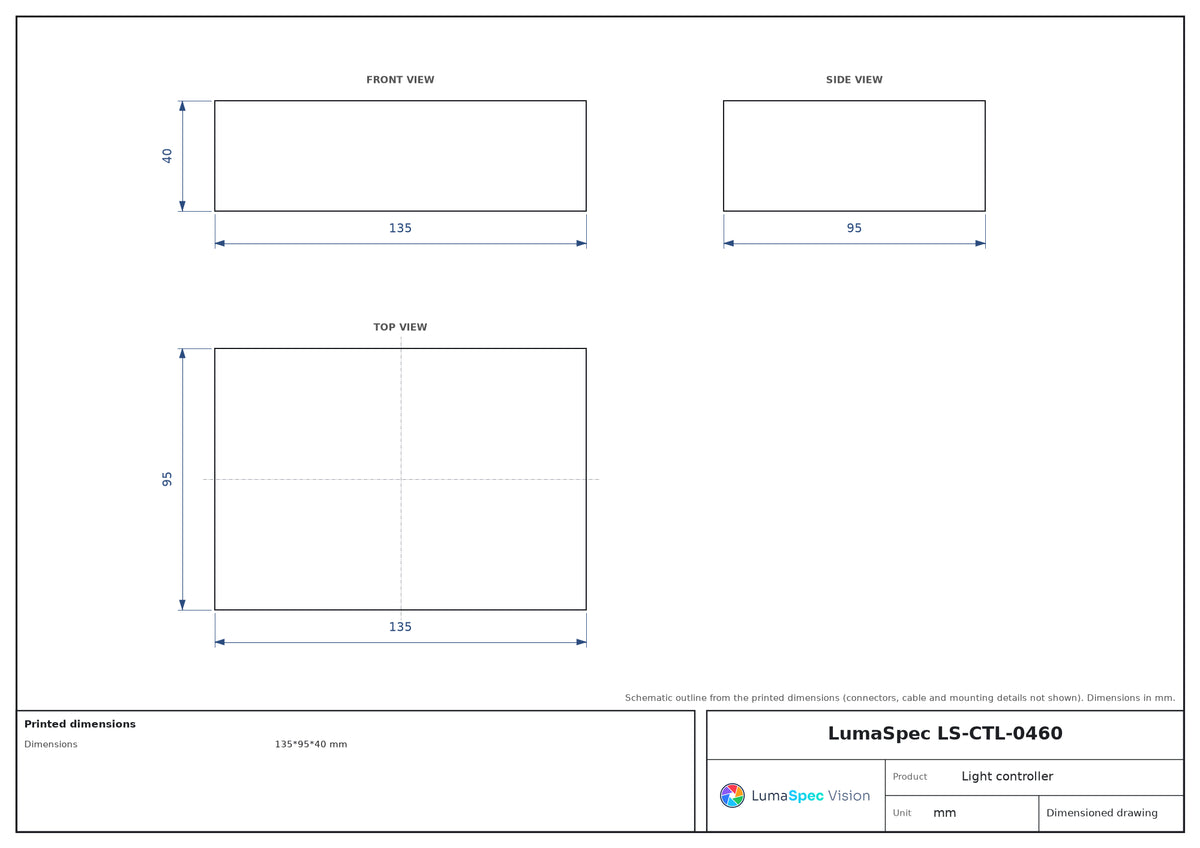

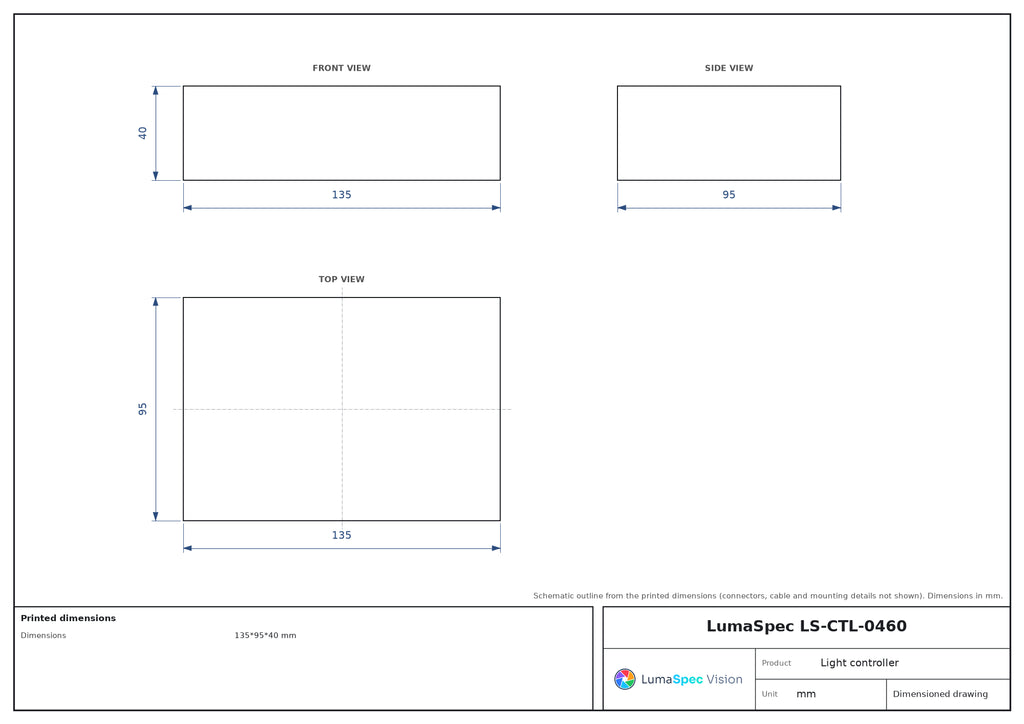

Dimensions (mm)135*95*40 mm
Shipping weight3.00 kg

LS-CTL-0460

See this component from every angle.

Representative component form. Housing dimensions or proportions are inferred from comparable components; this is not a dimensioned product model. Use the printed specifications and drawing.

Explore the visual library
LS-CTL-0460 — Light controllers, View 1 Concept illustration

FROM THE PRINTED SPECIFICATIONS

Output voltage
5 V
Channels
2
Connector
SMP-03 V

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Analog LED light controllers (LS-CTL-S94) series

See all 10 models
ModelSize / key dataPriceAvailabilityLink
LS-CTL-0461 4 ch $150.00 Ships in 3-4 weeks View
LS-CTL-0462 1 ch, 300 W $480.00 Ships in 3-4 weeks View
LS-CTL-0463 2 ch, 300 W $640.00 Ships in 3-4 weeks View
LS-CTL-0464 1 ch, 600 W $695.00 Ships in 3-4 weeks View
LS-CTL-0465 2 ch, 600 W $695.00 Ships in 3-4 weeks View
LS-CTL-0466 2 ch, 600 W $725.00 Ships in 3-4 weeks View
LS-CTL-0467 1 ch, 800 W $725.00 Ships in 3-4 weeks View
LS-CTL-0468 2 ch, 800 W $1,020.00 Ships in 3-4 weeks View
LS-CTL-0469 1 ch, 1200 W $1,070.00 Ships in 3-4 weeks View
