Light controllers

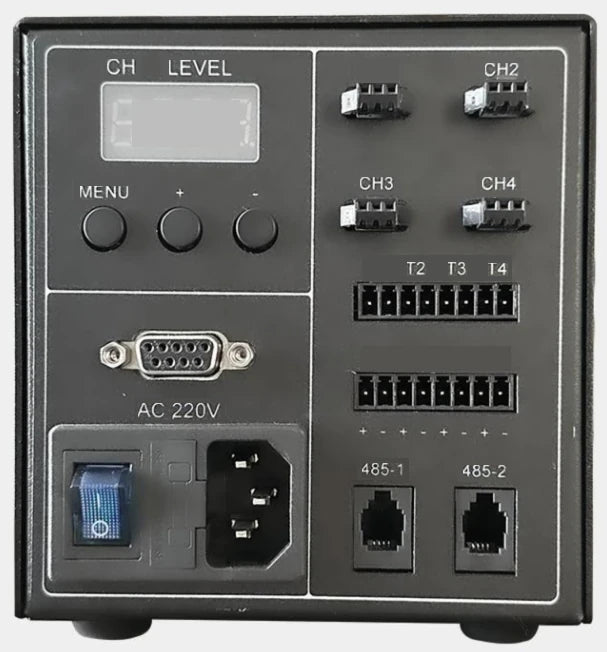

Constant current brightness enhancement strobe controller, 4 ch, 65 W (LS-CTL-0450)
Model LS-CTL-0450
- Channels4
- Output48V
- Total output65 W
- ControlAnalog
$719.00
Ships in 2-3 weeks
1.45 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Strobe controller with built-in 48V switching power supply, high current output, adjustable brightness enhancement factor, temperature-controlled heat dissipation and RS232/RS485 communication.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0450 |
|---|---|
| Control | Digital (4-digit display, buttons), RS232, RS485 serial port |
| Operating modes | Always on / internally triggered / externally triggered |
| Response speed | 500ns |
Light
| Connected light source type | Light source with a current of 10mA~700mA greater than 24V |
|---|
Environment and compliance
| Operating temperature | -5~50°C |
|---|
Electrical
| Baud rate | 9600-115200bps optional |
|---|---|
| Built-in power supply power | 65W |
| Internal trigger cycle | 10~999ms |
| Max input voltage | AC220V |
| Max output current per channel | Instantaneous 20A |
| Max output voltage | 48V |
| Overheat protection | Yes |
| Strobe delay time | 0~999us |
| Strobe pulse width | 10~999us |
| Trigger | External/internal trigger, edge; synchronous signal output |
| Trigger method | Edge |
| Number of channels | 4 |
| Total output (W) | 65 |

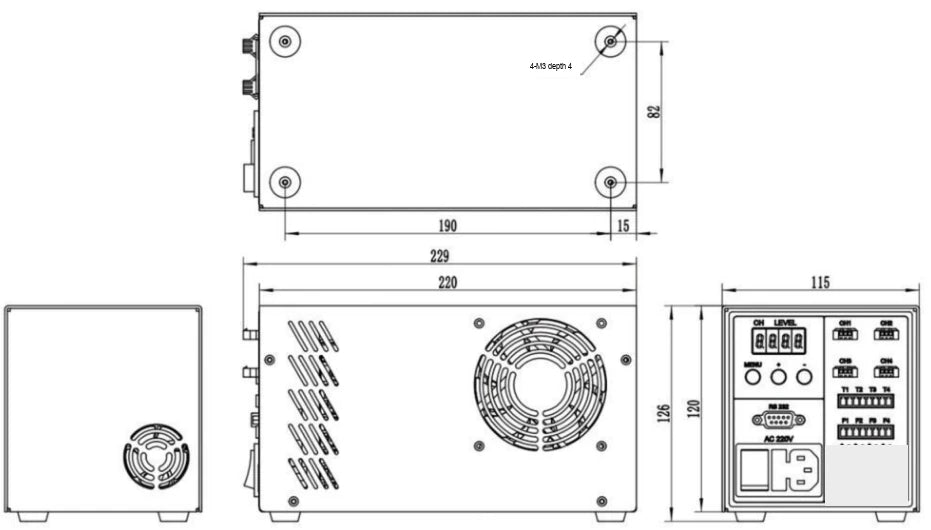

Mechanical
| Dimensions (mm) | 115 x 229 x 126 |
|---|---|
| Shipping weight | 1.45 kg |
