Representative photo of this series
Light controllers
Two / four channel mini digital controller, 4 ch, 120 W (LS-CTL-0232)
Model LS-CTL-0232
- Channels4
- OutputDC14.0~24.0V
- InputDC24V
- Total output120 W
- Control9600
$349.00
Ships in 2-3 weeks
0.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Second generation mini digital constant-current controller, 2 or 4 channels, DC24V input, key and RS232 (PC software) brightness control in 255 levels, passive external trigger. The controller provides power to the light source and controls its brightness and lighting state (on, off); a trigger signal to the controller strobes the light source and prolongs its life. Digital controllers can be controlled remotely by PC equipment.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0232 |
|---|---|
| Control mode | Constant current |
| Manual adjustment | yes (adjust by key) |
| Remote adjustment | yes (through the upper computer software) |
Interfaces and I/O
| RS232 communication baud rate | 9600 |
|---|
Light
| Luminance level memory | yes (memory automatically remembered 8 seconds after adjustment) |
|---|---|
| Adjustable brightness level | Level 255 (long press rough adjustment, short press fine adjustment; also adjustable by PC software) |
Environment and compliance
| Work environment | Temperature: -10~50 °C, Humidity: 20~80% |
|---|---|
| Storage environment | Temperature: -20~70 °C, Humidity: 10~90% |
Electrical
| Input voltage | DC24V |
|---|---|
| Output voltage range | DC14.0~24.0V |
| External trigger mode | Passive triggering (effective trigger voltage range 5-24V DC) |
| External trigger delay time | H, ON→OFF <15us; H, OFF→ON <15us (H = high level trigger) |
| External trigger frequency | <1/T (determined by the strobe time, e.g. T=1ms gives at most 1KHz) |
| Standby power consumption | <1W |
| Power/CH | 30W |
| Output voltage | 24V |
| External trigger | yes |
| Input power | >=120W |
| Channels | 4 |
| Total output (W) | 120 |
Mechanical

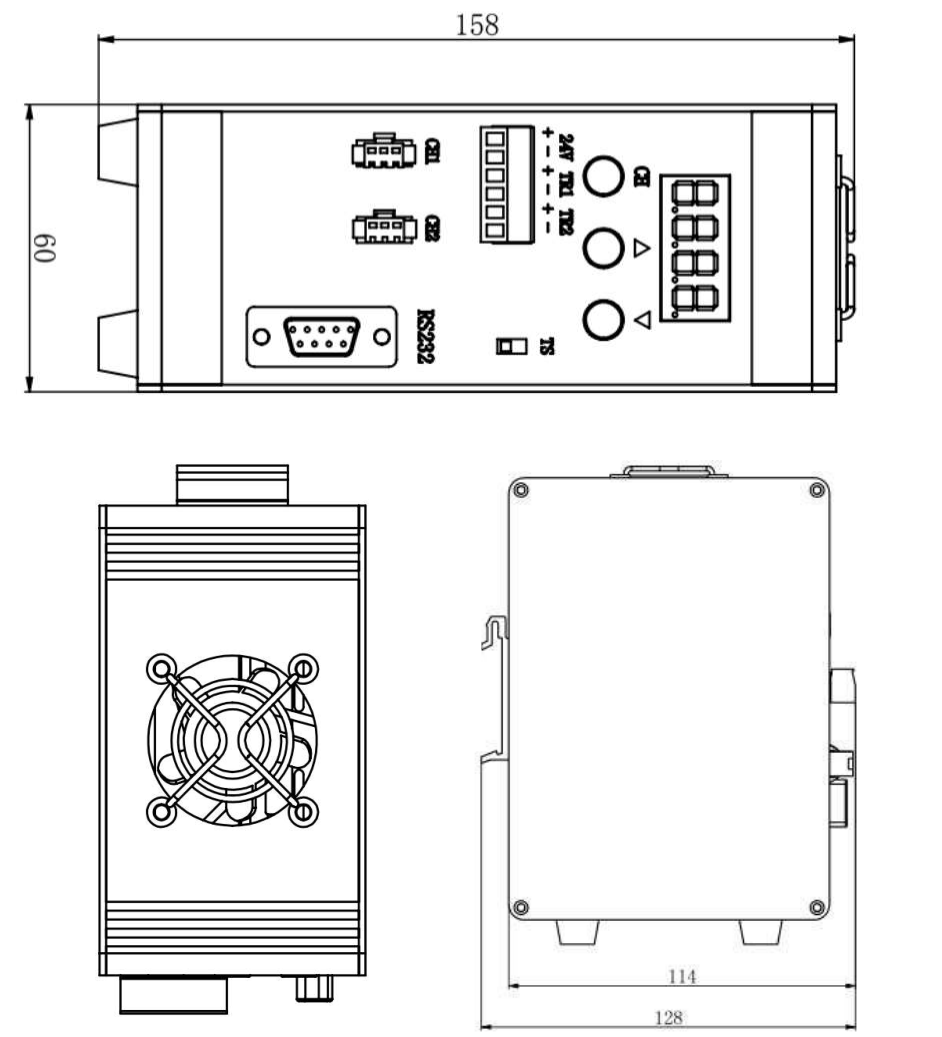

| Boundary dimension (mm) | 128x60x158mm (LxWxH) |
|---|---|
| Weight | 0.7Kg |
