Light controllers

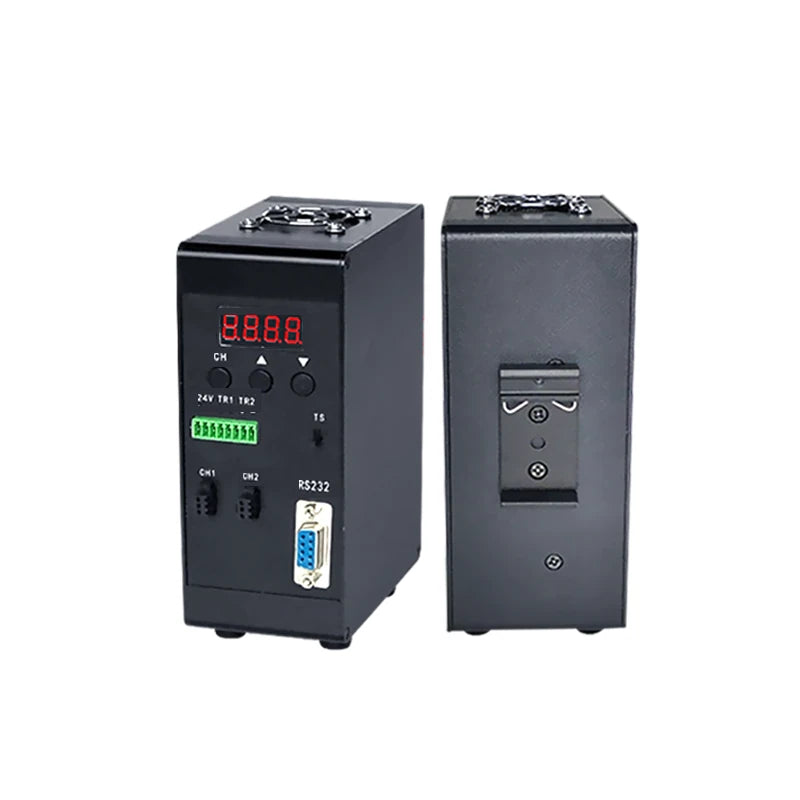

Two / four channel mini digital controller, 2 ch, 6 W (LS-CTL-0225)

Model LS-CTL-0225

Channels2
OutputDC14.0~24.0V
Total output6 W
Control9600

$229.00

Ships in 2-3 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Second generation mini digital constant-current controller, 2 or 4 channels, DC24V input, key and RS232 (PC software) brightness control in 255 levels, passive external trigger. The controller provides power to the light source and controls its brightness and lighting state (on, off); a trigger signal to the controller strobes the light source and prolongs its life. Digital controllers can be controlled remotely by PC equipment.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CTL-0225
Control mode	Constant current
Manual adjustment	yes (adjust by key)
Remote adjustment	yes (through the upper computer software)
Type	Digital Mini

Interfaces and I/O

RS232 communication baud rate	9600

Light

Luminance level memory	yes (memory automatically remembered 8 seconds after adjustment)
Adjustable brightness level	Level 255 (long press rough adjustment, short press fine adjustment; also adjustable by PC software)

Environment and compliance

Work environment	Temperature: -10~50 °C, Humidity: 20~80%
Storage environment	Temperature: -20~70 °C, Humidity: 10~90%
Operating temperature	-10~50 ℃
Operating humidity	20~80%
Storage temperature	-20~70℃
Storage humidity	10~90%

Electrical

Output voltage range	DC14.0~24.0V
External trigger mode	Passive triggering (effective trigger voltage range 5-24V DC)
External trigger delay time	H, ON→OFF <15us; H, OFF→ON <15us (H = high level trigger)
External trigger frequency	<1/T (determined by the strobe time, e.g. T=1ms gives at most 1KHz)
Standby power consumption	<1W
Current	DC
Channel	2
Output Volt	5V
Output Power Per Channel	3W
Trigger	Yes
Channel	4
Power/CH	3W
Output voltage	5V
External trigger	yes
Input power	>=60W
Channels	2
Total output (W)	6

Mechanical

Boundary dimension (mm)	128x60x158mm (LxWxH)
Weight	0.7Kg

Downloads

Datasheet (PDF)LS-CTL-0225 · 1.9 MB

Features

Exquisite appearance
Easy installation
Add guide buckle (DIN rail clip)
Easy operation
Operation panel front
Noiseless fan
High power
Strong heat dissipation
Constant current stable output/no strobe
Adjust by key or upper computer software (RS232)
Luminance level memory
After adjustment, the brightness level is automatically remembered after 8S.
Support remote adjustment through the host computer.
Operation panel front, more convenient to use.
Silent fan, good heat dissipation performance.
Very stable output and no flicker.
Exquisite appearance, easy installation.

Applications

Powering machine vision LED light sources, brightness control and strobe (trigger) control
