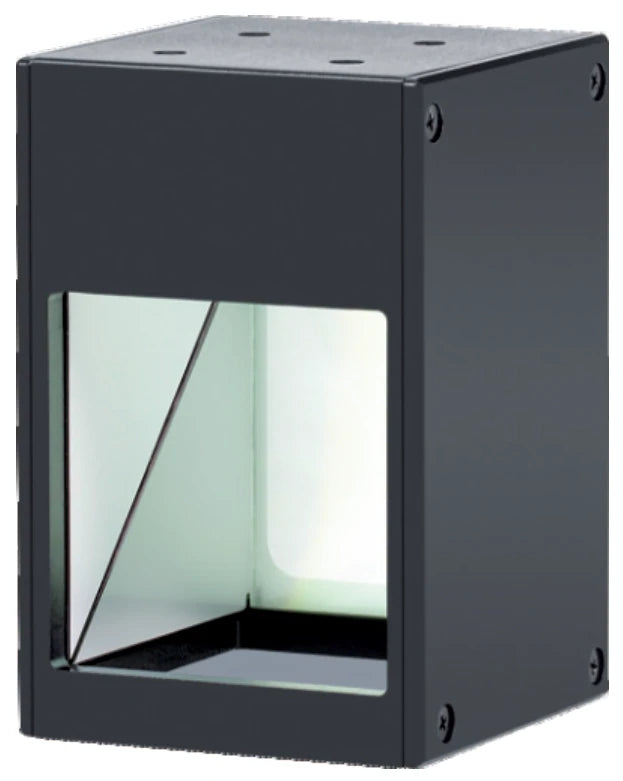

Representative photo of this series
Coaxial lights
80 x 80 mm Coaxial light (LS-CP80M80)
Model LS-CP80M80
- ColourRed, Green, Blue, White
- Emitting area80 x 80 mm
- Voltage24 V
- Wavelength red620-630 nm
$219.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.75 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Coaxial light with an added brightness enhancement film for higher brightness; better light directivity makes it more suitable for surface defect inspection. High uniformity, efficient heat dissipation and a specially coated beam splitter.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CP80M80 |
|---|---|
| Optional accessories | Extension cable, diffuse plate |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |

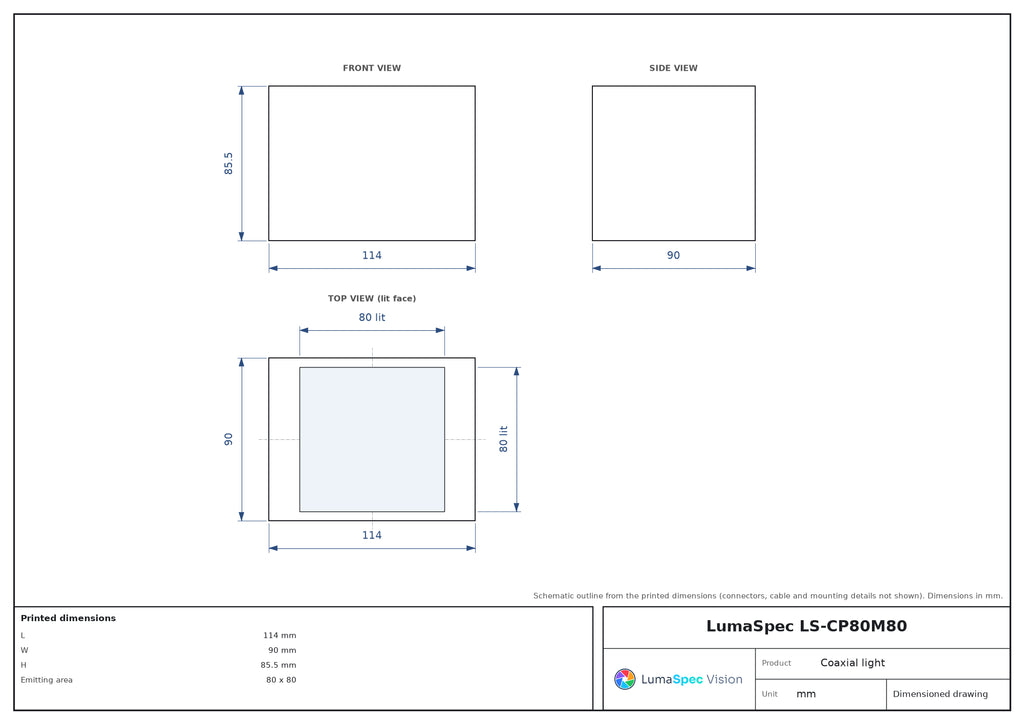

| L (mm) | 114 |
| W (mm) | 90 |
| H (mm) | 85.5 |
Interfaces and I/O
| Cable length | 500 mm (drawings) |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Emitting area (mm) | 80 x 80 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-DPS series, LS-APS series, LS-SPS series (the selected controller should match the power of the light source) |
|---|---|
| Power R (W) | 9 |
| Power G/B/W (W) | 14 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-DPS, LS-APS |
Mechanical
| Shipping weight | 0.75 kg |
|---|
Other models in the Coaxial light (CP series) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CP40M40 | 39 x 38 mm | $99.00 | 15 in stock | View |
| LS-CP60M60 | 60 x 61 mm | $159.00 | 14 in stock | View |
