Representative photo of this series
Coaxial lights

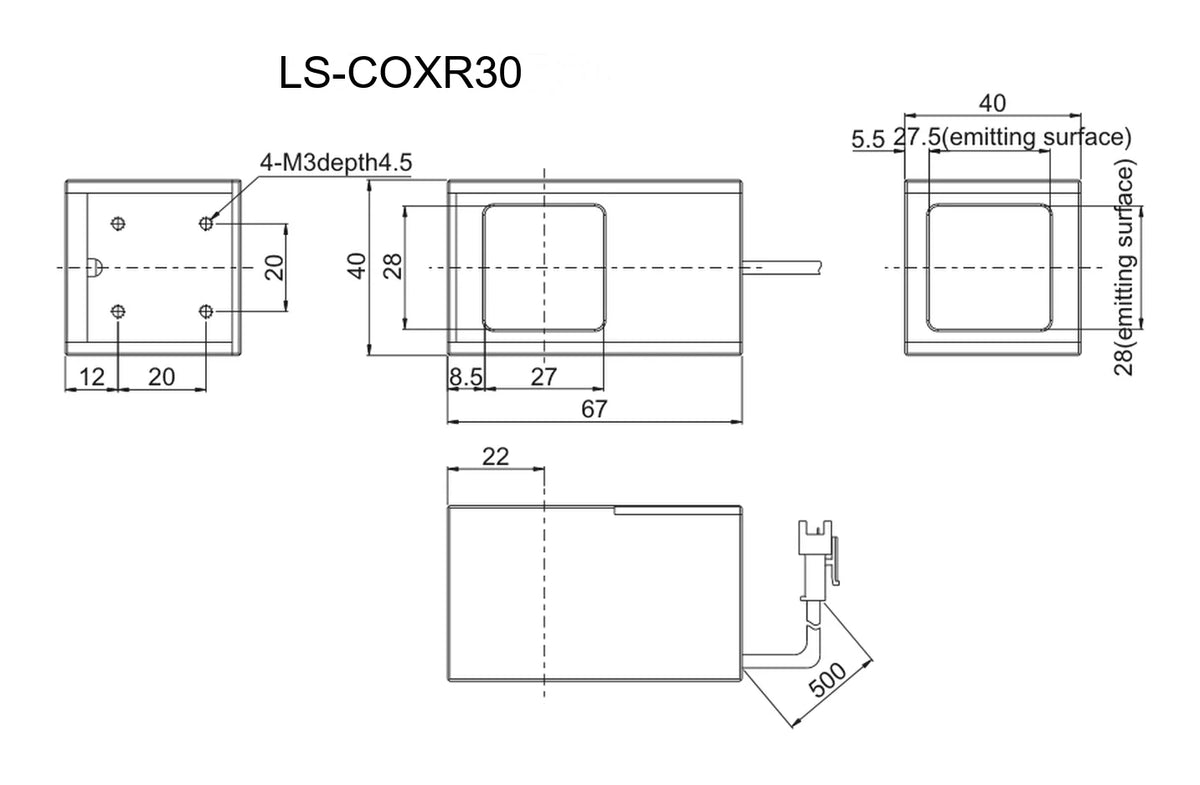

27.5 x 28 mm Right-angle coaxial light (LS-COXR30)
Model LS-COXR30
- ColourRed, Green, Blue, White
- Emitting area25 mm x 19 mm
- Voltage24 V
- Max. emitting area100 mm x 100 mm
$79.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Right-angle coaxial light: compact and space saving, with the light ray at 90 degrees to the CCD camera for a compact structure.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-COXR30 |
|---|---|
| FOV | 1mm~45mm |
Optics
| Recommended working distance | 5mm~150mm |
|---|
Interfaces and I/O
| Cable length | 500 mm |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and high-temperature resistant, for use inside equipment); high-flexibility extension cable (harder, more abrasion resistant, for drag-chain production lines) |
Light
| Min. emitting area | 25 mm x 19 mm |
|---|---|
| Max. emitting area | 100 mm x 100 mm |
| Colour temperature of white | 6600 K |
| Emitting surface (mm) | 27.5 x 28 |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory default luminance) |
Electrical
| Voltage | 24 V |
|---|---|
| Adapted controllers | Strobe controller, analog controller, digital controller |
| Power (R) | 2.0W |
| Power (G/B/W) | 2.2W |
Mechanical
| Weight | 116 g |
|---|
Other models in the Right-angle coaxial light (COXR) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-COXR2520 | 19 x 25 mm | $79.00 | 14 in stock | View |
| LS-COXR3520 | 19 x 35 mm | $99.00 | 10 in stock | View |
| LS-COXR40 | 38 x 38 mm | $99.00 | 15 in stock | View |
| LS-2COXR60 | 59 x 56 mm | $149.00 | 14 in stock | View |
| LS-2COXR100 | 100 x 100 mm | $289.00 | 14 in stock | View |
