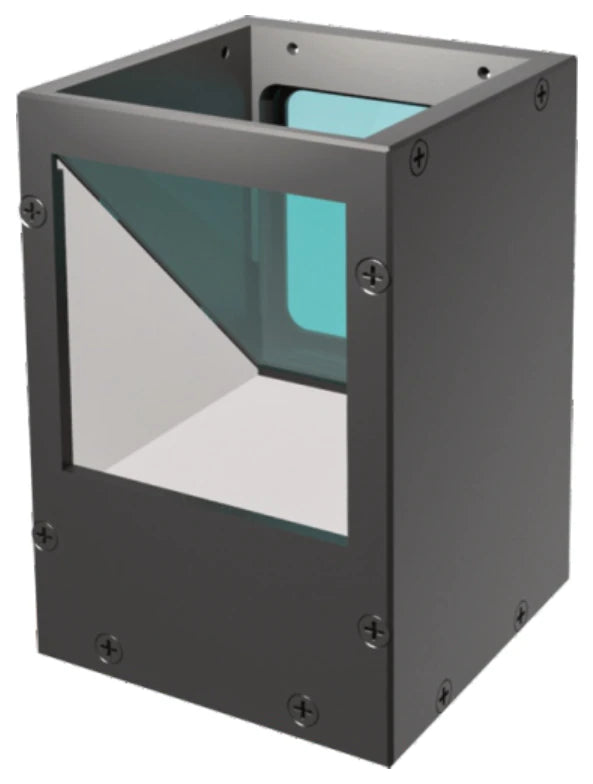

Representative photo of this series
Coaxial lights
32 x 25 mm Corner coaxial light (LS-COSC3225)
Model LS-COSC3225
- ColourRed, Green, Blue, White
- Emitting area32 x 25 mm
- Voltage24 V
- Cable length500 mm (drawings)
$89.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Corner coaxial light with a high-density LED array for high brightness and clear imaging. Its special coating eliminates image ghosting, and the camera mounts from the side to save installation space.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-COSC3225 |
|---|---|

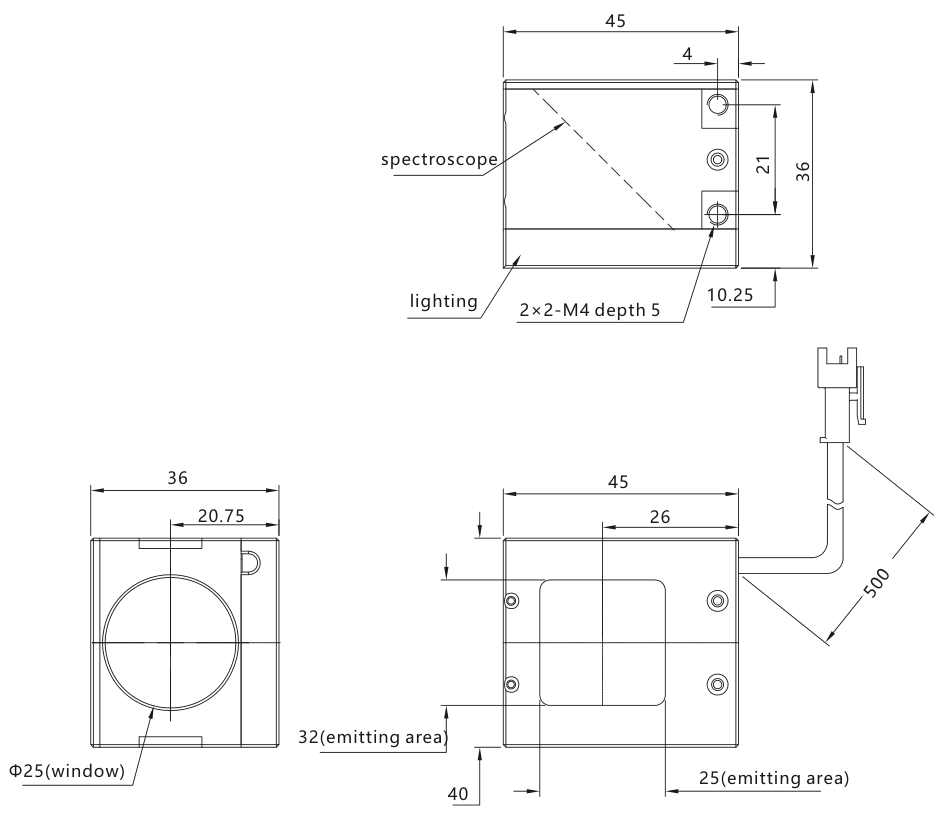

| Window | dia. 25 mm (LS-COSC24, LS-COSC3225 drawings) |
| L (mm) | 45 |
| W (mm) | 40 |
| H (mm) | 36 |
Interfaces and I/O
| Cable length | 500 mm (drawings) |
|---|
Light
| Emitting area (mm) | 32 x 25 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
Electrical
| Power R (W) | 2.3 |
|---|---|
| Power G/B/W (W) | 4.6 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-DPS, LS-APS |
Mechanical
| Shipping weight | 0.25 kg |
|---|
