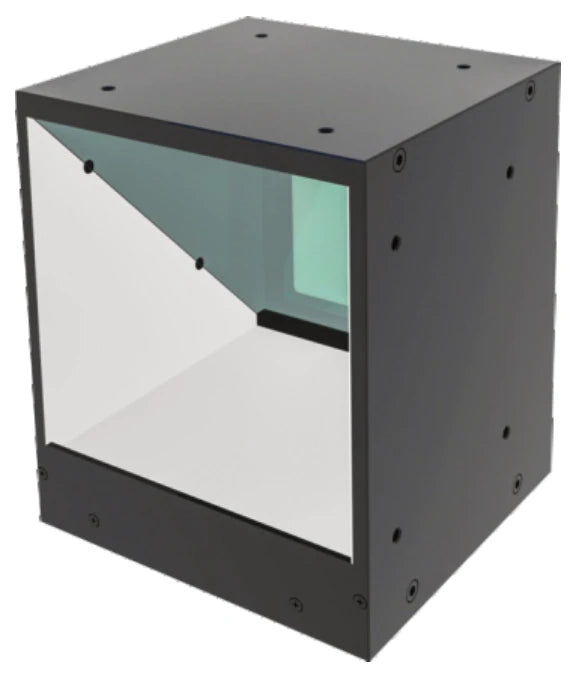

Representative photo of this series
Coaxial lights
140 x 140 mm Coaxial light, 192 x 150 x 146 mm (LS-COS140-W)
Model LS-COS140-W
- ColourWhite
- Wavelength red620-630 nm
- Wavelength green520-530 nm
- Wavelength blue465-475 nm
$459.00
In stock - ships the same business day (5 available, order by 2 PM ET)
1.75 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Coaxial light with high uniformity and clear imaging; efficient heat dissipation prolongs life, and a specially coated beam splitter reduces light loss. It highlights unevenness on the object surface and eliminates reflection.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-COS140-W |
|---|---|
| Optional accessories | Extension cable |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| L (mm) | 188 |
| W (mm) | 150 |
| H (mm) | 146 |
Interfaces and I/O
| Cable length | 500 mm (drawings) |
|---|---|
| Cable | 500 mm |
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Luminous size (mm) | 140 x 140 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-APS2 series, LS-DPS2 series, SPS series (the selected controller should match the power of the light source) |
|---|---|
| Power R (W) | 33 |
| Power G/B/W (W) | 36 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
Mechanical
| Overall size (mm) | 192 x 150 x 146 (emitting area 140 x 140, window 110 x 110) |
|---|---|
| Mounting | 4-M4 depth 4 (top); 2X4-M3 depth 3.5 (side) |
| Shipping weight | 1.75 kg |
Other models in the Coaxial light (COS series) series
See all 16 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-COS14 | 16 x 14.6 mm | $59.00 | 15 in stock | View |
| LS-COS18 | 19 x 19 mm | $59.00 | 13 in stock | View |
| LS-COS25 | 26 x 25 mm | $79.00 | 13 in stock | View |
| LS-COS30 | 30 x 30 mm | $89.00 | 16 in stock | View |
| LS-COS40 | 39 x 38 mm | $99.00 | 13 in stock | View |
| LS-COS5540 | 55 x 40 mm | $139.00 | 12 in stock | View |
| LS-COS60 | 61 x 60 mm | $159.00 | 16 in stock | View |
| LS-COS7040 | 70 x 40 mm | $189.00 | 13 in stock | View |
| LS-COS80 | 80 x 80 mm | $219.00 | 15 in stock | View |
| LS-COS100 | 102 x 100 mm | $299.00 | 14 in stock | View |
| LS-COS120 | 120 x 120 mm | $369.00 | 15 in stock | View |
| LS-COS12065 | 120 x 65 mm | $369.00 | 15 in stock | View |
| LS-COS140 | 140 x 140 mm | $459.00 | 13 in stock | View |
| LS-COS180130 | 180 x 130 mm | $669.00 | 12 in stock | View |
| LS-COS49065-EX | 490 x 59 mm | $3,679.00 | 11 in stock | View |
