Representative photo of this series
Coaxial lights
60 x 60 mm Coaxial parallel light (LS-COPS60)
Model LS-COPS60
- ColourRed, Green, Blue, White
- Emitting area60 x 60 mm
- Wavelength red620-630 nm
- Wavelength green520-530 nm
$159.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.7 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Coaxial parallel light with high brightness, high uniformity and a high degree of parallelism.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-COPS60 |
|---|---|
| Optional accessories | Extension cable |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| L (mm) | 151 |
| W (mm) | 70 |
| H (mm) | 68 |
Interfaces and I/O

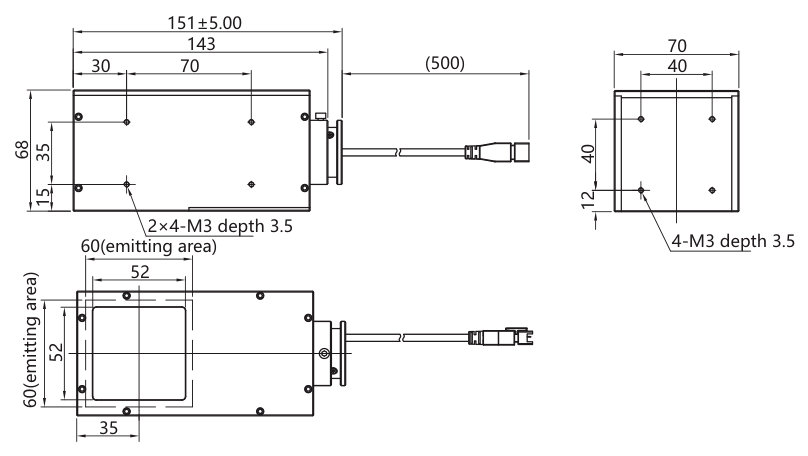

| Cable length | 500 mm (drawings) |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Emitting area (mm) | 60 x 60 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CPL0520A-4TD |
|---|---|
| Power R (W) | 3 |
| Power G/B/W (W) | 3 |
| Recommended controller | LS-CPL0520A-4TD |
Mechanical
| Shipping weight | 0.70 kg |
|---|
