Representative photo of this series
Coaxial lights
33 x 33 mm Collimated coaxial light (LS-COPA40)
Model LS-COPA40
- ColourRed, Green, Blue, White
- Emitting area33 x 33 (window), emitting 38 x 43.4
- SizeL105.5xW46xH47(mm)
- Power3W
$159.00
Ships in 2-3 weeks
0.45 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Coaxial light with a special optical path design for high parallelism, using high-power LEDs for high luminance; the uniform light rays are easy for software to recognize.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-COPA40 |
|---|---|
| Light spot (LS-COPA50-W) | WD 25: dia. 50, 16350 lx; WD 100: dia. 52, 9330 lx; WD 200: dia. 55, 6435 lx |
| Customizable | viewport, length and width, colour and colour temperature, cable length, installation method |
| Note | UV & IR light can be customized as required. |
Interfaces and I/O

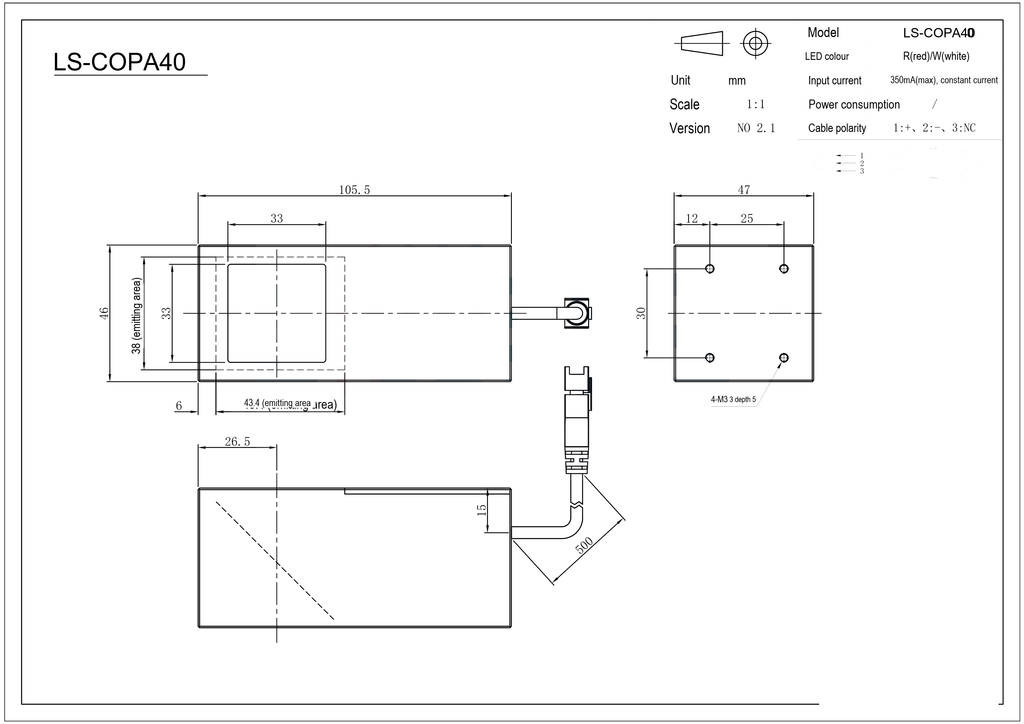

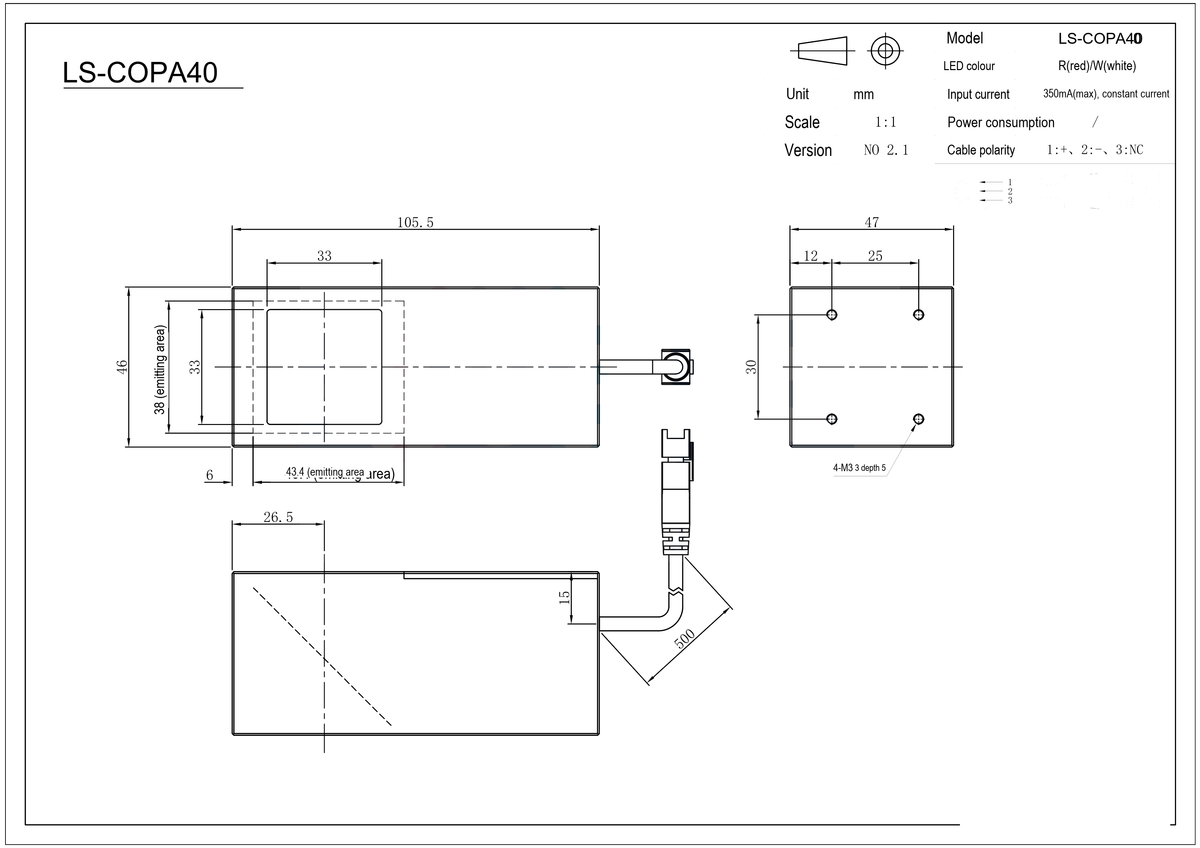

| Cable (mm) | 500 (drawings) |
|---|---|
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| Cable polarity | 1: +, 2: -, 3: NC |
Light
| Custom wavelengths | UV & IR light can be customized as required |
|---|---|
| Emitting surface (mm) | 33 x 33 (window), emitting 38 x 43.4 |
| LED colour | R(red)/W(white) |
Environment and compliance
| Operating temperature | 0-50 °C |
|---|---|
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
Electrical
| Adapted controller | Constant current controller |
|---|---|
| Power, R (W) | 3 |
| Power, G/B/W (W) | 3 |
| Current | 1000mA |
| Power | 3W |
| Supply voltage (derived) | 24 V DC, derived: all 58 coaxial lights of this range that state a voltage are rated 24 V |
Mechanical
| Weight (g) | 234 |
|---|---|
| Mounting | 4-M3 depth 5 |
| Dimension | L105.5xW46xH47(mm) |
| Mounting holes | 4-M3 depth 5 |
