Coaxial lights

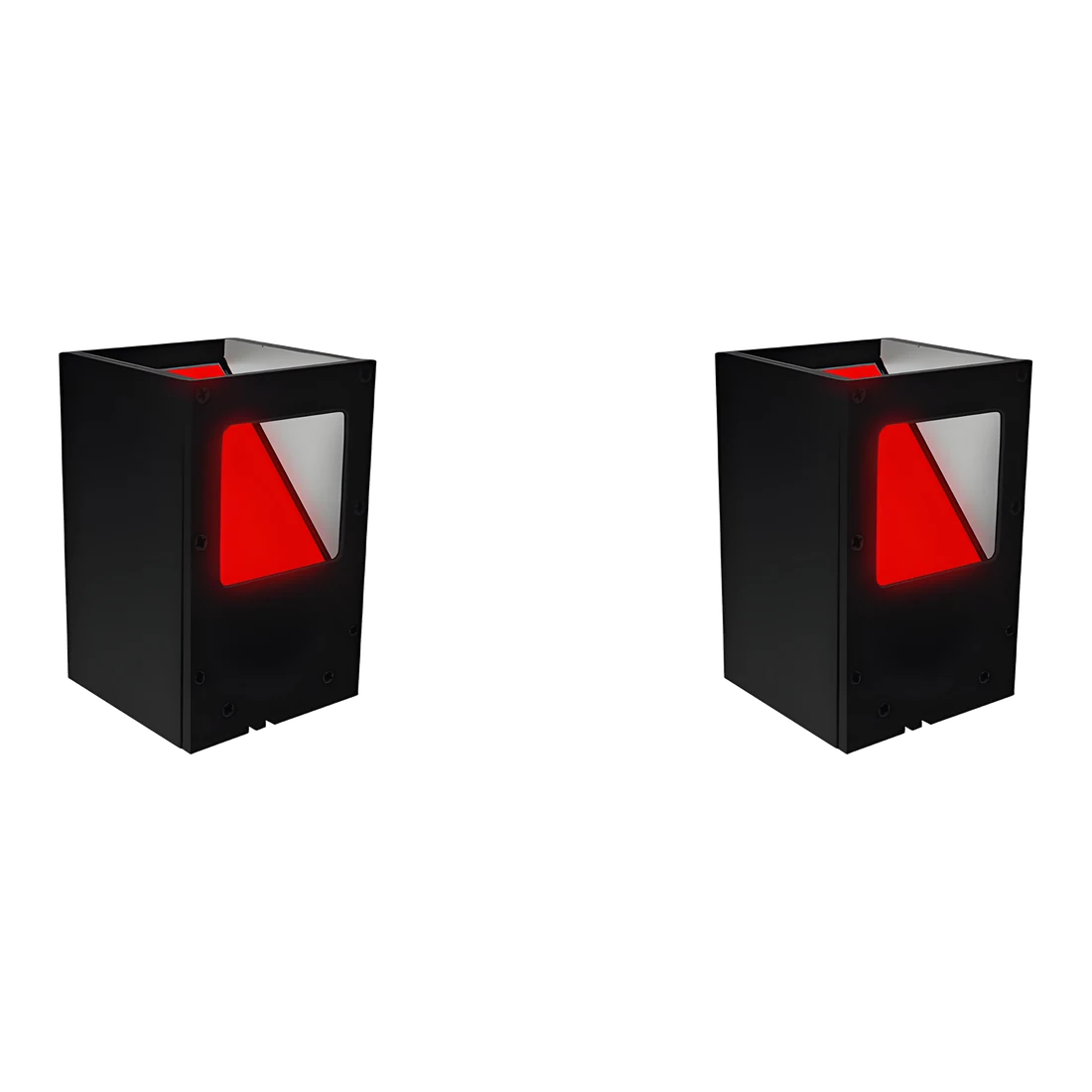

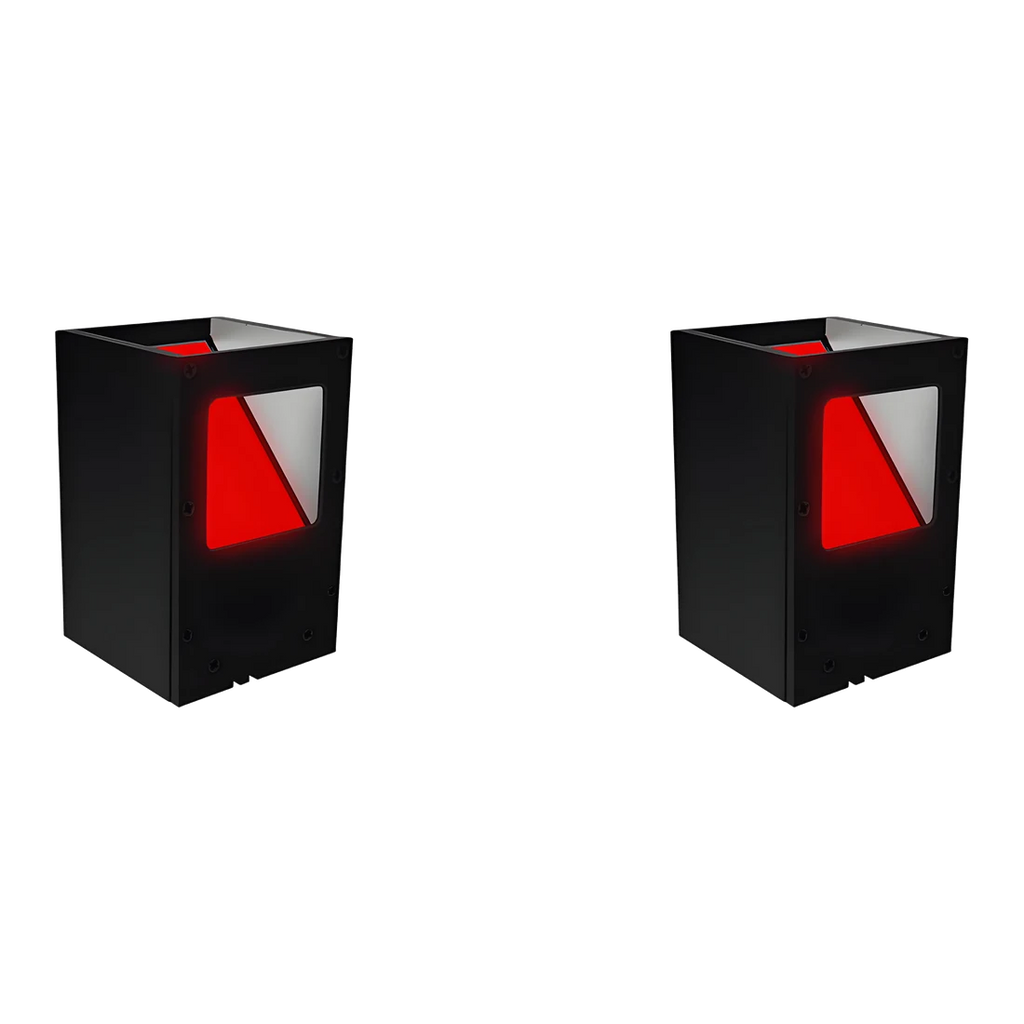

26 x 26 mm Ring-Angle Coaxial Light (LS-CONR-26)
Model LS-CONR-26
- ColourRed, Green, Blue, White
- Emitting area26x26 mm
- Size45x40x43 mm
- Voltage24 V
$89.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.25 kg shipping weight
Volume pricing, Net 30 or a formal quote?
26 x 26 mm Ring-Angle Coaxial Light. Ring angle coaxial light with 90 degrees between the light path and the camera, giving a compact, space-saving structure with high uniformity and high luminance. Coding: LS-CONR-<emitting area>-<colour>, e.g. LS-CONR-40-W.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CONR-26 |
|---|
Light
| Emitting area (mm) | 26x26 |
|---|---|
| Colours | Red, Green, Blue, White |
| Illuminance (LS-CONR-67, read from curve) | approx. 10,000 lx at 10 mm falling to approx. 1,200 lx at 130 mm working distance |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 3 |
| Power G/B/W (W) | 3 |
Mechanical

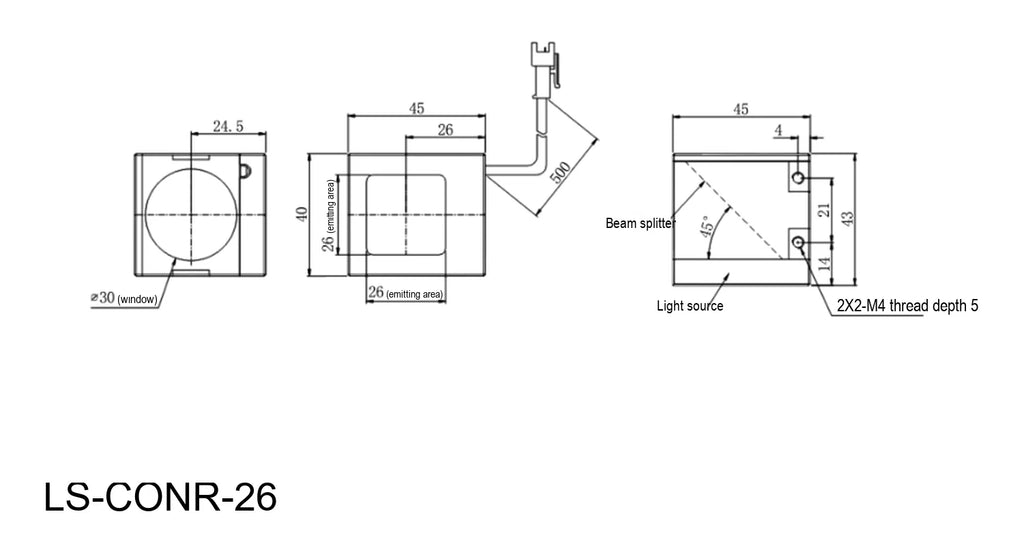

| Outer size L x W x H (mm) | 45x40x43 |
|---|---|
| Shipping weight (estimated) | 0.25 kg |
Other models in the Ring angle coaxial light (CONR series) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CONR-40 | 40 x 40 mm | $129.00 | 13 in stock | View |
| LS-CONR-67 | 67 x 67 mm | $209.00 | 13 in stock | View |
| LS-CONR-80 | 80 x 80 mm | $259.00 | 17 in stock | View |
