Coaxial lights
60 x 60 mm Collimated Coaxial Light (LS-CONP-60)
Model LS-CONP-60
- ColourRed, Green, Blue, White
- Emitting area60x60 mm
- Size131x68x70 mm
- Voltage24 V
- Power4.5 W (R/G/B/W, every size)
$219.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.65 kg shipping weight
Volume pricing, Net 30 or a formal quote?
60 x 60 mm Collimated Coaxial Light. Coaxial light with parallel (collimated) illumination that suppresses light diffraction to achieve high-precision imaging. Coding: LS-CONP-<emitting area>-<colour>, e.g. LS-CONP-50-R.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CONP-60 |
|---|
Interfaces and I/O

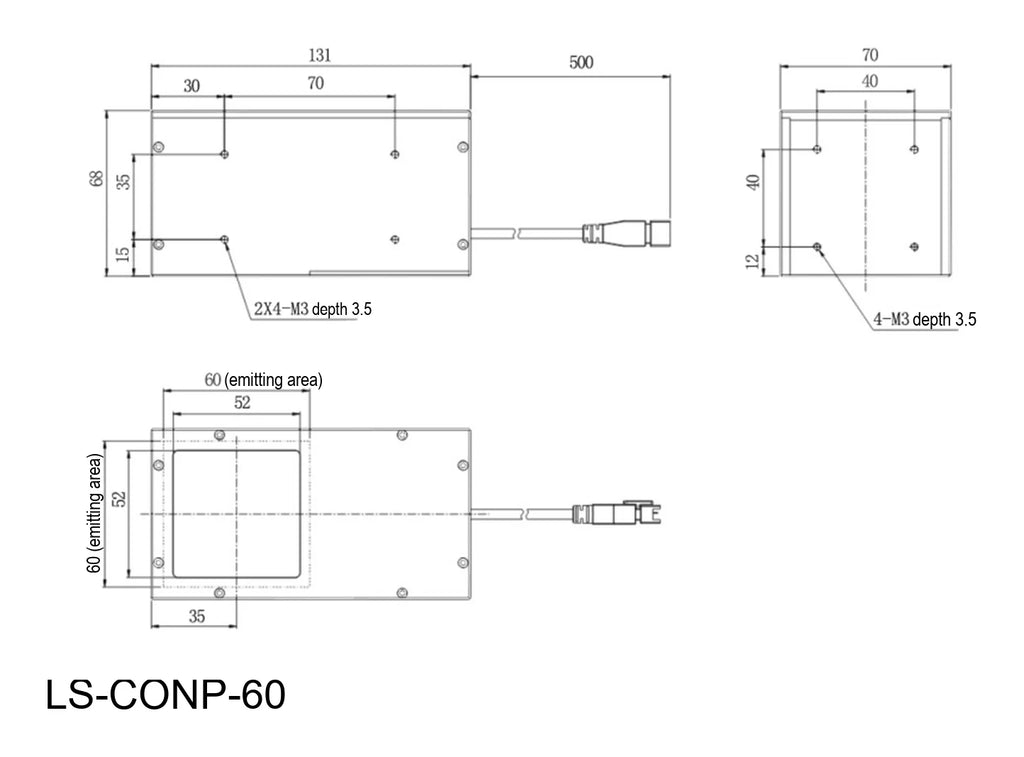

| Cable length (drawing) | 500 mm |
|---|
Light
| Emitting area (mm) | 60x60 |
|---|---|
| Colours | Red, Green, Blue, White |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R/G/B/W (W) | 4.5 |
| Power | 4.5 W (R/G/B/W, every size) |
Mechanical
| Outer size L x W x H (mm) | 131x68x70 |
|---|---|
| Shipping weight (estimated) | 0.65 kg |
Other models in the Collimated coaxial light (CONP series) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CONP-30 | 30 x 30 mm | $119.00 | 15 in stock | View |
| LS-CONP-40 | 40 x 40 mm | $149.00 | 18 in stock | View |
