Coaxial lights

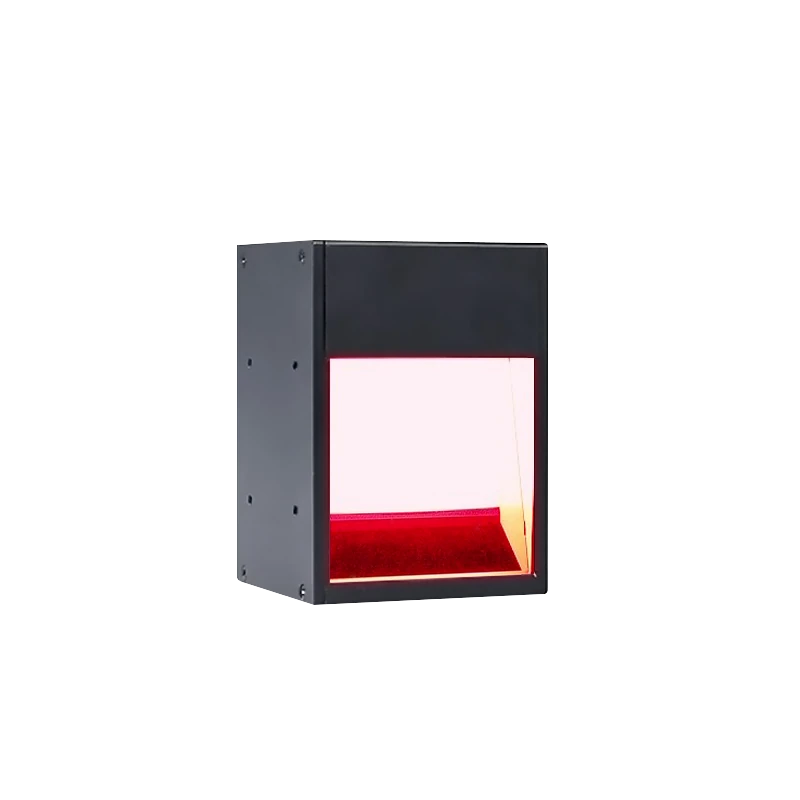

35 x 35 mm Coaxial light, standard type (LS-CO2.0-3535)
Model LS-CO2.0-3535
- ColourRed, Blue, White
- Voltage24 V
- Connector3-pin flat
- LED typeSMD
$99.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Coaxial light consists of uniformly distributed LED light emitting units and special lenses. Support customized color, wavelength, luminescent surface size, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CO2.0-3535 |
|---|---|
| Light type | Standard type |
| Category | Coaxial light |
| Terminal Plug | Flat head 3PIN2 pin |
| Cooling | Naturalair cooling |
| Electrical insulation capacity | DC500V Insulation resistance>20 megohms |
| Pressure Resistance Requirements | AC1000 V10mA/5S |
| Flammability Rating | IEC60707 |
| Value-added Services | One year free technical support |
Interfaces and I/O
| Cable length | 0.5m |
|---|---|
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. |
| Mating cable (optional) | 1.Light source extension cable 2.Connector adapter cable |
Light
| LED type | SMD |
|---|---|
| Luminous size (mm) | 35x35 |
| Color | Red/Blue/White |
| Wavelength | red: 620-635nm; white: —; blue: 465-470nm |
| Color temperature | red: —; white: 6000-6500K; blue: — |
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller |
Environment and compliance
| Operating Temperature and Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) |
|---|---|
| Lifespan | Under our specified conditions of use,30000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
Electrical
| Power tolerance | actual product power within ±10% of the table is the normal range |
|---|---|
| Voltage (V) | 24 |
| Power red (W) | 2.6 |
| Power blue/white (W) | 3.4 |
Mechanical
| Shell material | Aluminum Alloy (Oxidative blackened surface) |
|---|---|
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |

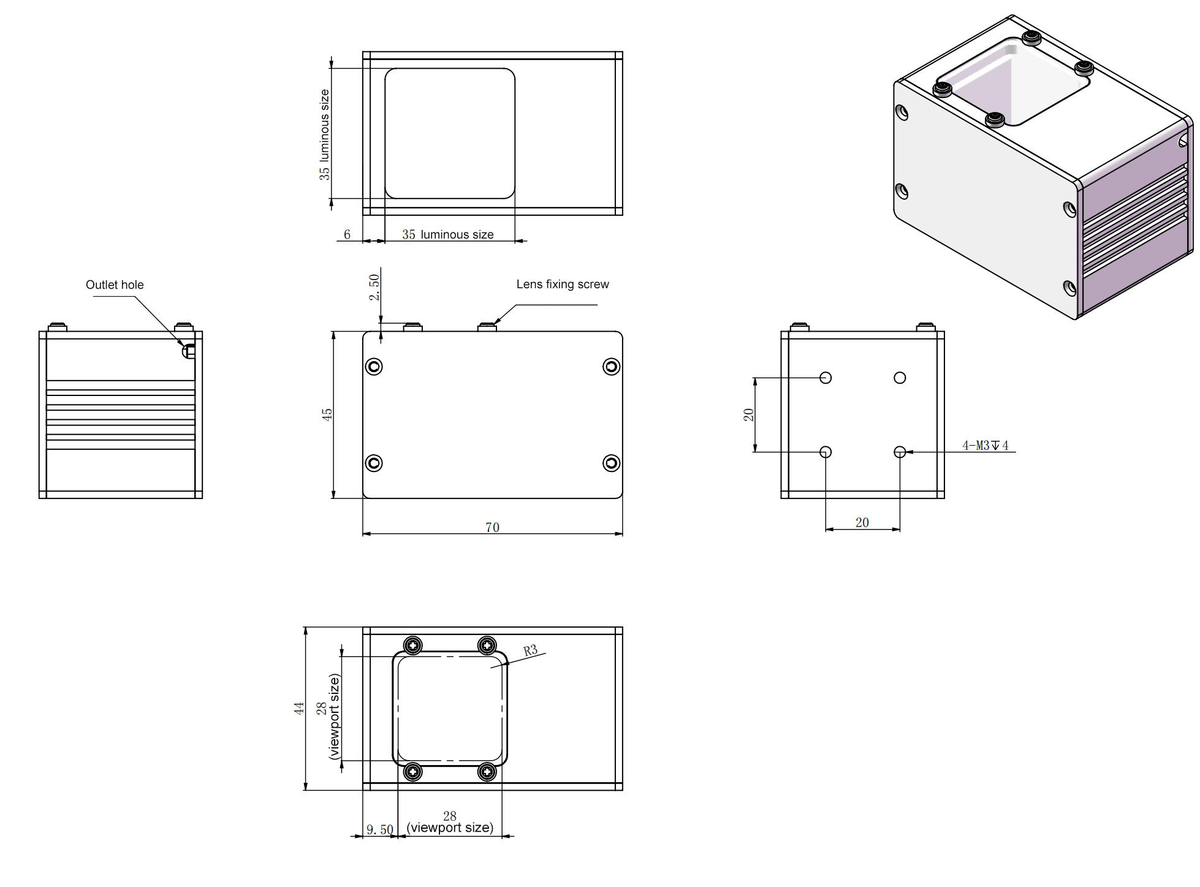

| Boundary dimension L x W x H (mm) | 70x44x47.5 |
| Shipping weight | 0.30 kg |
