Area scan cameras

2048 x 1536 10GigE SWIR camera, IMX993, 173 fps (LS-CMR-0524)

Model LS-CMR-0524

Resolution2048 × 1536
Sensor1/1.8”(7.07x5.3)
Interface10GigE
Lens mountC-mount
Pixel size3.45 μm

$23,145.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

2.0 kg shipping weight

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

3.1 MP SWIR camera for inspection, measurement and guidance on the production line. IMX993 sensor; 2048 x 1536 pixels; up to 173 frames per second; 10GigE interface; spectral range 400-1700 nm.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0524
Spectral range	400-1700 nm

Sensor and imaging

Resolution	2048 × 1536
Sensor model	IMX993
Max. frame rate	173 fps @ 2048 × 1536; 328 fps @ 1024 × 768
Shutter	Global
Sensor size	1/1.8”(7.07x5.3)
Pixel size	3.45 μm
Dynamic range	51.5 dB
SNR	48.5 dB
Pixel bit depth	8 bit / 12 bit

Interfaces and I/O

Data interface	10GigE
Digital I/O	1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O

Light

Color Type	SWIR

Environment and compliance

Operating temperature	-40~85 °C (Storage), -20~60°C ( Operating )

Computing

Operating system	Windows, Linux

Electrical

Trigger mode	● Soft Trigger ● Hardware Trigger ● Free Run
Power supply	12 V

Mechanical

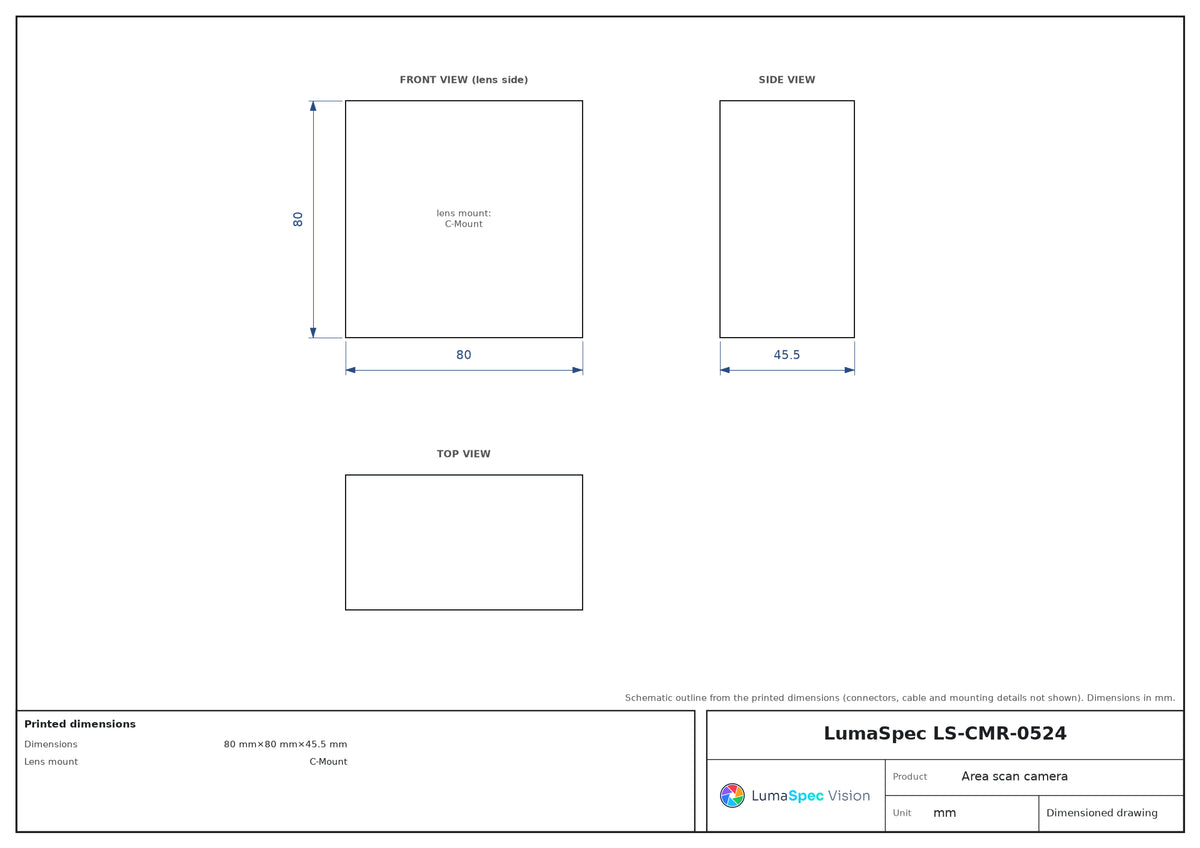

Dimensions	80 mm×80 mm×45.5 mm
Lens mount	C-Mount
Weight	390g
