1280 x 1024 10GigE SWIR camera, 1.5", 200 fps, M42, 1280x1024 10GigE

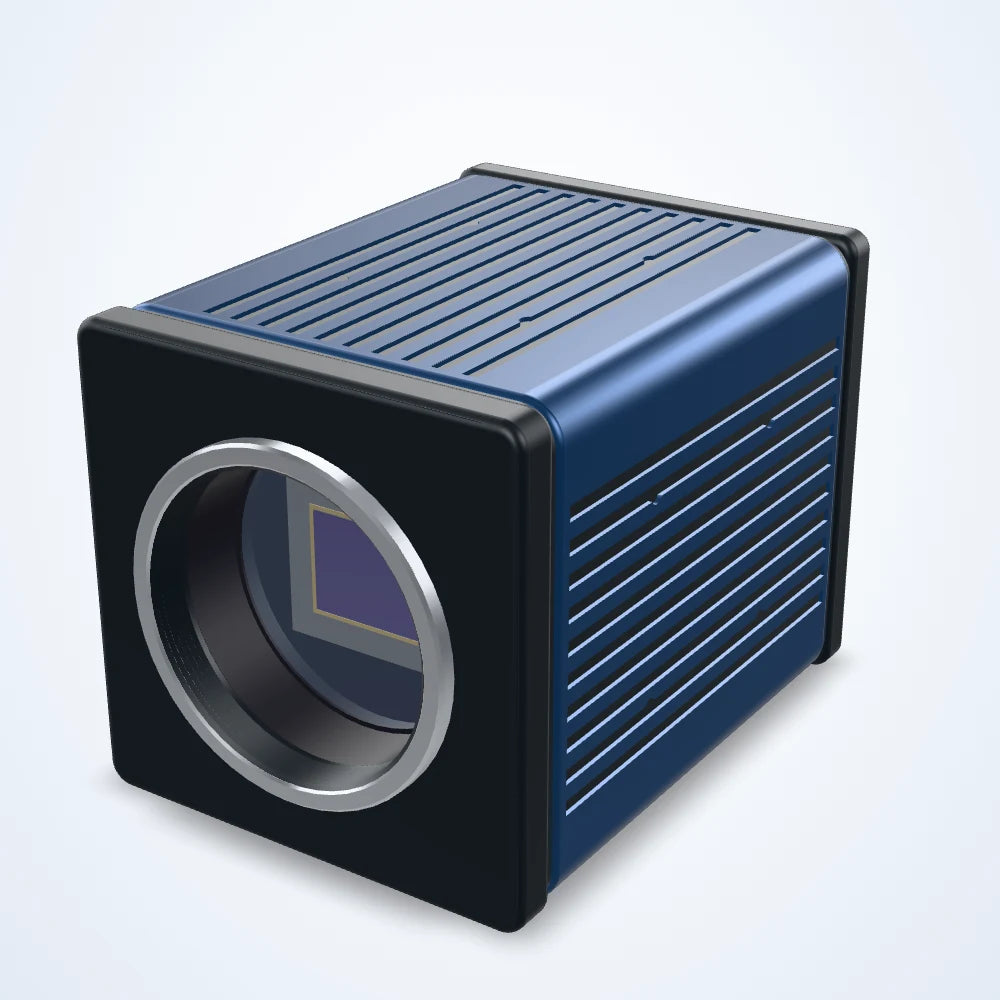

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

1280 x 1024 10GigE SWIR camera, 1.5", 200 fps, M42, 1280x1024 10GigE (LS-CMR-0522)

Model LS-CMR-0522

Resolution1280x1024
SensorInGaAs CMOS Image Sensor
Interface10GigE
Speed200
Lens mountM42
Pixel size15 μm

$38,520.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

0.78 kg shipping weight

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

1.3 MP SWIR camera for inspection, measurement and guidance on the production line. InGaAs CMOS image sensor (1.5"); 1280 x 1024 pixels of 15 μm; up to 200 frames per second; 10GigE interface; M42 lens mount; spectral range 900-1700 nm.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0522
Spectral range	900 nm-1700 nm
Quantum efficiency	≥ 70@1.55 μm
Readout Noise	69.2 dB(LG), 63.2 dB(MG), 57.4 dB(HG) (For reference only)
Cooling	40° C below ambient temperature
Spectral Band	0.9-1.7um

Sensor and imaging

Resolution	1280x1024
Sensor type	InGaAs CMOS Image Sensor
Pixel size	15 μm
Sensor size	1.5"
Max. frame rate	200
Conversion Gain	1μV/e- (LG), 16μV/e- (MG), 53.3μV/e- (HG)
Exposure time	16 μs~1s
Pixel format	Mono 8 / Mono 14
Dynamic range	69.2 dB(LG), 63.2 dB(MG), 57.4 dB(HG)
Pixel bit depth	14 bit

Interfaces and I/O

Data interface	10GigE

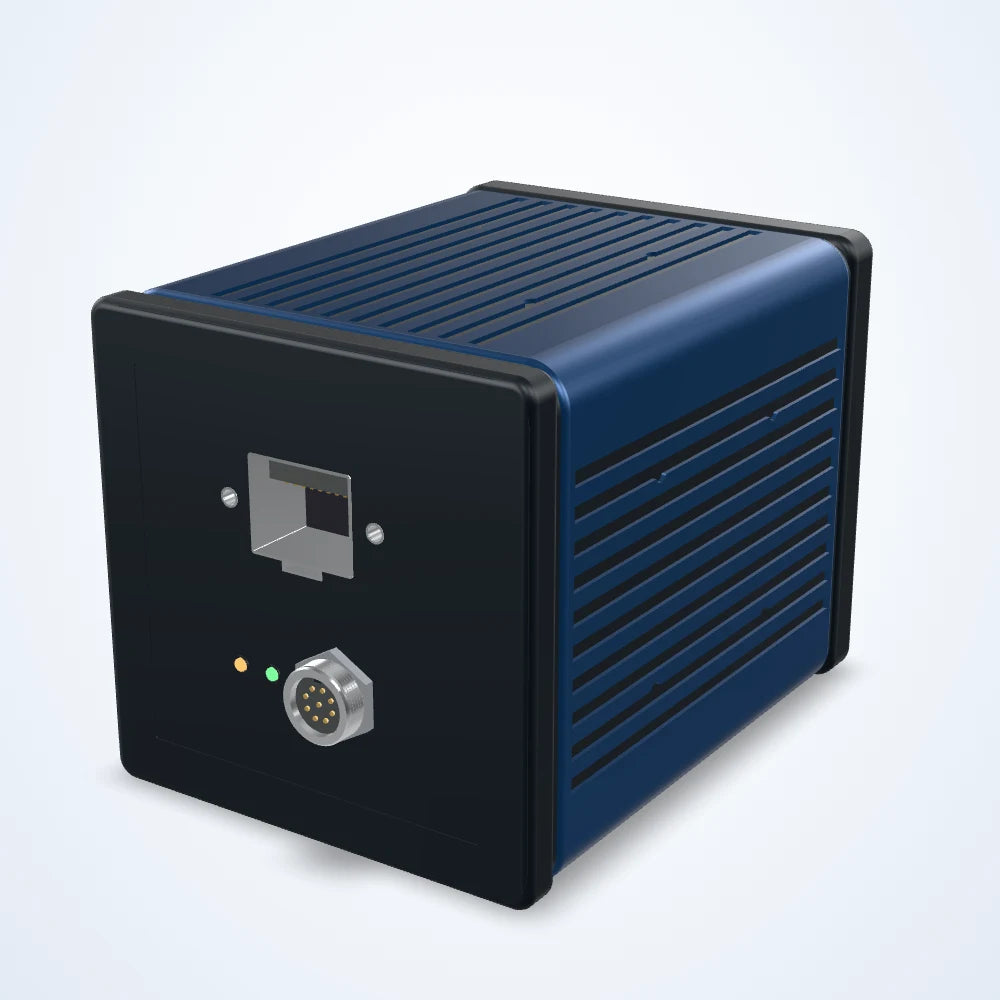

Digital I/O	1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O

Environment and compliance

Storage temperature	-40~85 °C
Operating temperature	-30~60 °C
Humidity	20%–80% RH, non-condensing

Electrical

Power supply	DC 12 V
Power consumption	8.4 W(TEC OFF)/ <16 W(TEC ON)

Mechanical

Lens mount	M42-Mount

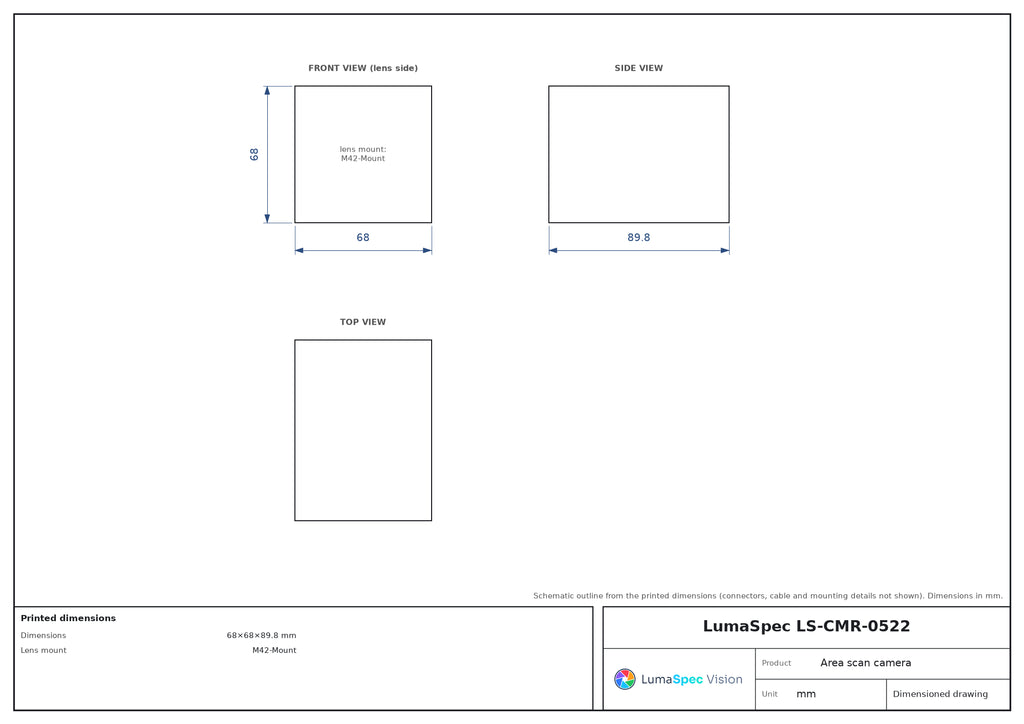

Dimensions	68×68×89.8 mm (485g)
Weight	485g
