Representative photo of this series
Area scan cameras
Area scan camera, 1.6 MP, GigE, Mono (LS-CMR-0247)
Model LS-CMR-0247
- Resolution1440 x 1080
- InterfaceGigE, PoE
- Speed65
- Lens mountC-mount
- Pixel size3.45 x 3.45
$299.00
Ships in 2-3 weeks
0.59 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High cost-performance area scan cameras with resolutions from 0.3 MP to 20 MP.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0247 |
|---|---|
| Optical format | 1/2.9" |
Sensor and imaging
| Resolution | 1440 x 1080 |
|---|---|
| Frame rate (FPS) | 65 |
| Sensor | IMX296 |
| Pixel size (μm) | 3.45 x 3.45 |
| Shutter | Global |
| Sensor format | 1/2.9" |
Interfaces and I/O
| Interface | GigE, PoE |
|---|
Light
| Mono / colour | M |
|---|
Mechanical

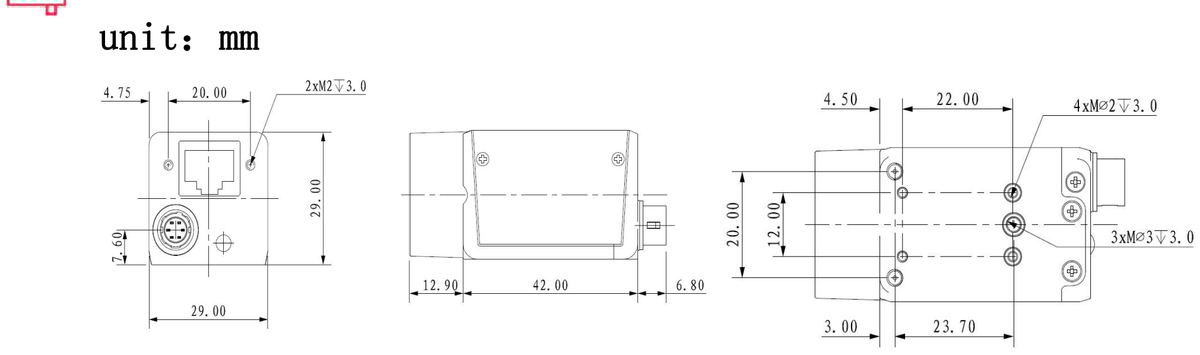

| Camera size (mm) | 29 x 29 x 42 |
|---|---|
| Lens mount | C |
| Shipping weight | 0.59 kg |
Other models in the Area scan camera ( industrial camera) (LS-CMR-S15) series
See all 28 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0259 | 5.0 MP, GigE, Mono | $149.00 | Ships in 2-3 weeks | View |
| LS-CMR-0258 | 5.0 MP, GigE, Color | $149.00 | Ships in 2-3 weeks | View |
| LS-CMR-0261 | 6.3 MP, GigE, Mono | $219.00 | Ships in 2-3 weeks | View |
| LS-CMR-0260 | 6.3 MP, GigE, Color | $219.00 | Ships in 2-3 weeks | View |
| LS-CMR-0243 | 0.3 MP, GigE, Mono | $299.00 | Ships in 2-3 weeks | View |
| LS-CMR-0242 | 0.3 MP, GigE, Color | $299.00 | Ships in 2-3 weeks | View |
| LS-CMR-0269 | 1.2 MP, GigE, Mono | $299.00 | Ships in 2-3 weeks | View |
| LS-CMR-0268 | 1.2 MP, GigE, Color | $299.00 | Ships in 2-3 weeks | View |
| LS-CMR-0245 | 1.3 MP, GigE, Mono | $299.00 | Ships in 2-3 weeks | View |
| LS-CMR-0267 | 0.3 MP, GigE, Mono | $299.00 | Ships in 2-3 weeks | View |
| LS-CMR-0244 | 0.4 MP, GigE, Mono / Colour | $299.00 | Ships in 2-3 weeks | View |
| LS-CMR-0246 | 1.3 MP, GigE, Mono | $299.00 | Ships in 2-3 weeks | View |
| LS-CMR-0248 | 2.0 MP, GigE, Mono / Colour | $329.00 | Ships in 2-3 weeks | View |
| LS-CMR-0250 | 2.3 MP, GigE, Mono | $349.00 | Ships in 2-3 weeks | View |
| LS-CMR-0249 | 2.3 MP, GigE, Color | $349.00 | Ships in 2-3 weeks | View |
| LS-CMR-0255 | 5.3 MP, GigE, Mono | $449.00 | Ships in 2-3 weeks | View |
| LS-CMR-0254 | 5.3 MP, GigE, Color | $449.00 | Ships in 2-3 weeks | View |
| LS-CMR-0253 | 5.0 MP, GigE, Mono | $509.00 | Ships in 2-3 weeks | View |
| LS-CMR-0252 | 5.0 MP, GigE, Color | $509.00 | Ships in 2-3 weeks | View |
| LS-CMR-0251 | 3.1 MP, GigE, Mono / Colour | $509.00 | Ships in 2-3 weeks | View |
| LS-CMR-0264 | 12 MP, GigE, Mono | $559.00 | Ships in 2-3 weeks | View |
| LS-CMR-0263 | 12 MP, GigE, Color | $559.00 | Ships in 2-3 weeks | View |
| LS-CMR-0266 | 20 MP, GigE, Mono | $559.00 | Ships in 2-3 weeks | View |
| LS-CMR-0265 | 20 MP, GigE, Color | $559.00 | Ships in 2-3 weeks | View |
