Area scan cameras

Area scan camera, 0.3 MP, GigE, Mono, 4.8 μm pixels (LS-CMR-0243)

Model LS-CMR-0243

Resolution640 x 480
SensorCMOS
InterfaceGigE, POE
Speed300
Lens mountC-mount
Mono / colourMono

$299.00

Ships in 2-3 weeks

0.22 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

High cost-performance area scan cameras with resolutions from 0.3 MP to 20 MP.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0243
Image format	Mono8/10/10Packed
ROI	Support
Gamma	Range 0~4, support LUT
Image acquisition mode	Software trigger/hardware trigger/free run
SPC	Support
FPN	Support

Sensor and imaging

Resolution	640 x 480
Frame rate (FPS)	300
Sensor	PYTHON 300
Sensor type	CMOS
Shutter type	Global
Bit depth	10
Mono/color	Mono
Sensor size	1/4"
Resolution (MP)	0.3MP
SNR	>38dB
Dynamic range	60dB
Binning	Support
Decimation	Support
Gain	X1~X32
Shutter exposure	1μS~1S
Image buffer	64MB
Pixel size (μm)	4.8

Interfaces and I/O

Data interface	GigE, POE
GPIO interface	6 core Hirose interface:Opto-isolated input x 1, opto-isolated output x 1, Input and output can be configured without optocoupler isolation x 1
I/O connector pinout (pin, signal, description)	1 Power +6~26V camera power; 2 Line 1 Opto-coupled IO input line 1; 3 Line 2 Optional IO input/output port; 4 Line 0 Opto-coupled IO output; 5 IO GND Ground for opto-coupled I/O lines; 6 GND Ground for camera power

Environment and compliance

Temperature	Storage temperature: -30℃~+80℃; Working temperature: -30℃~+50℃

Computing

Storage	Storage parameters x 2

Electrical

Power supply	PoE / Hirose interface,voltage 6V~26V
Power consumption	12V≈3.2W

Mechanical

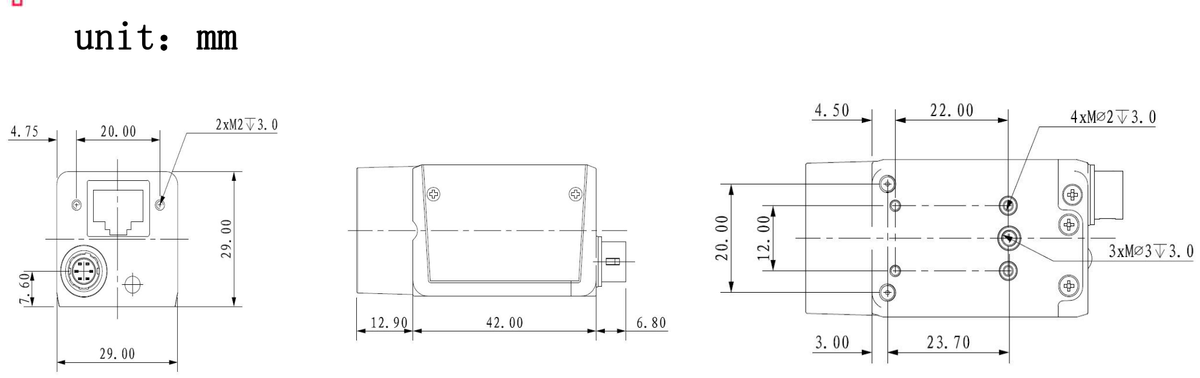

Dimension	29mm29mm42mm(Don't included lens holder and rear housing interface )
Weight	88g
Lens mount	C
