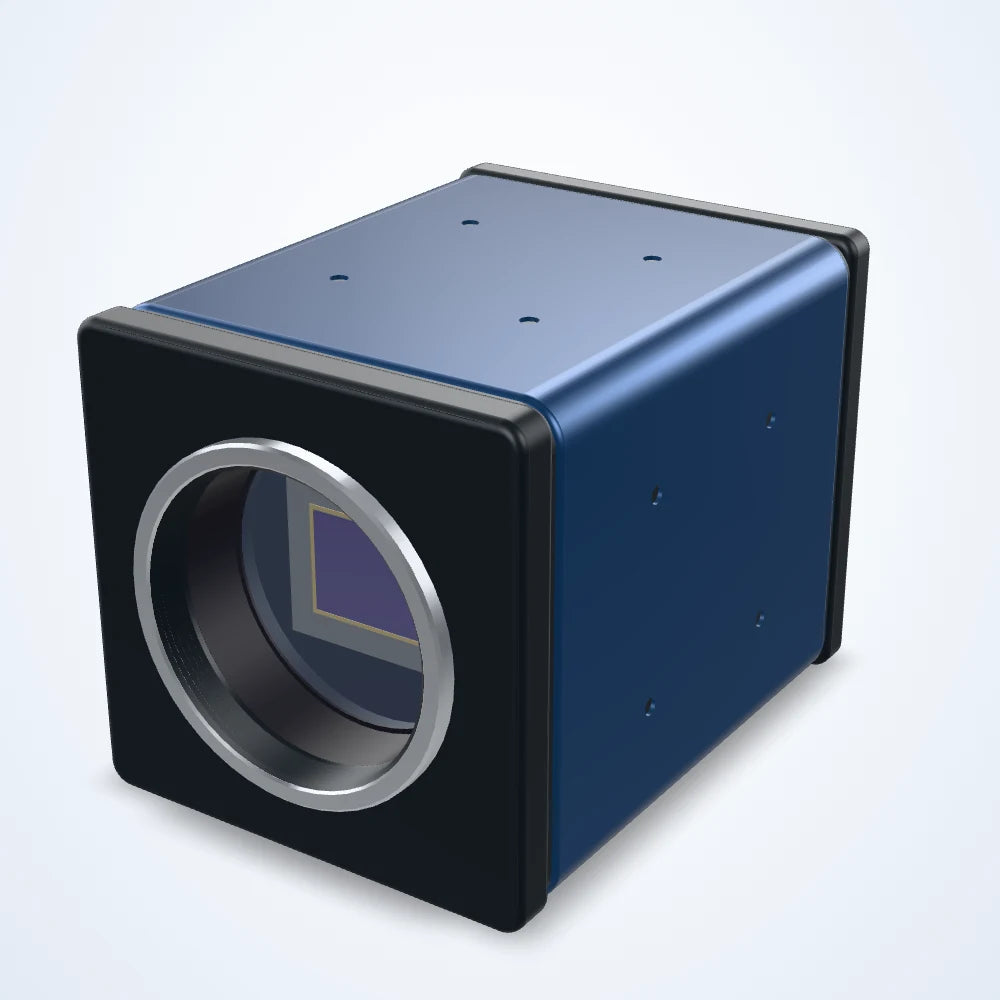

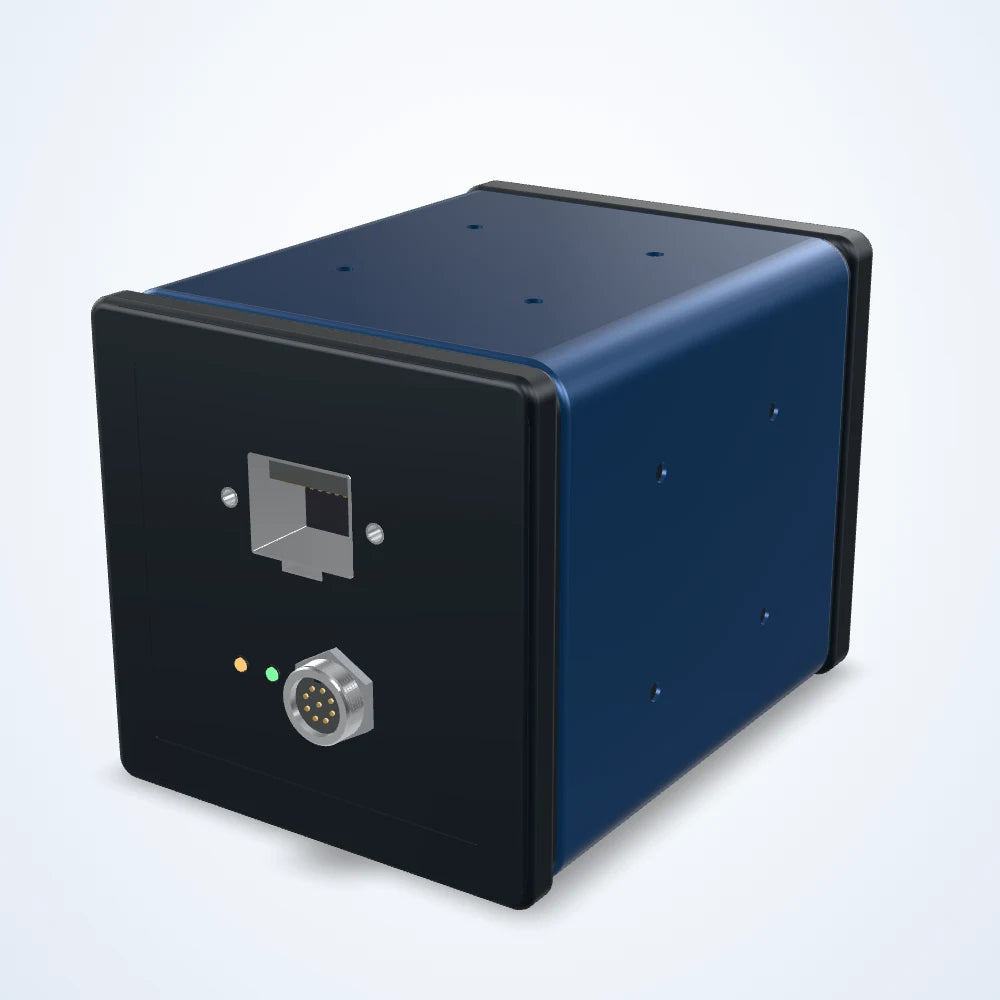

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
4.2 MP UV 10GigE area scan camera, Gsense2020BSI, 1.2" rolling shutter, 100 fps, M42 (LS-CMR-0186)
Model LS-CMR-0186
- Resolution2048×2048
- Sensor1.2"
- Interface10GigE
- Speed100 fps
- Lens mountM42
- Pixel size6.5
$6,250.00
Ships in 3-4 weeks
3.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
4.2 MP area scan camera for inspection, measurement and guidance on the production line. Gsense2020BSI sensor (1.2"); 2048 x 2048 pixels of 6.5 μm; up to 100 frames per second; rolling shutter; 10GigE interface; M42 lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0186 |
|---|---|
| Quantum efficiency | 93.7%@550 |
Sensor and imaging
| Sensor model | GSENSE2020BSI |
|---|---|
| Resolution | 2048×2048 |
| Max. frame rate | 100 fps |
| Sensor size | 1.2" |
| Pixel size | 6.5 |
| Dynamic range | 81.6 |
| Exposure time | 12 μs~60s |
| Shutter | Rolling |
| Sensor make | GPixel |
| Sensor type | CMOS |
| Pixel bit depth | 8/12 bit/HDR16 |
Interfaces and I/O
| Data interface | 10GigE |
|---|---|
| Digital I/O | 1 input(opto-isolated), 1 output(opto-isolated), 2 bi-directional custom non-isolated I/O |
Light
| Color Type | UV |
|---|
Environment and compliance
| Operating temperature | -10 - 50°C(Operating), -30 - 70°C(Storage) |
|---|
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
|---|---|
| Power supply | DC12 V |
Mechanical
| Lens mount | M42 |
|---|---|

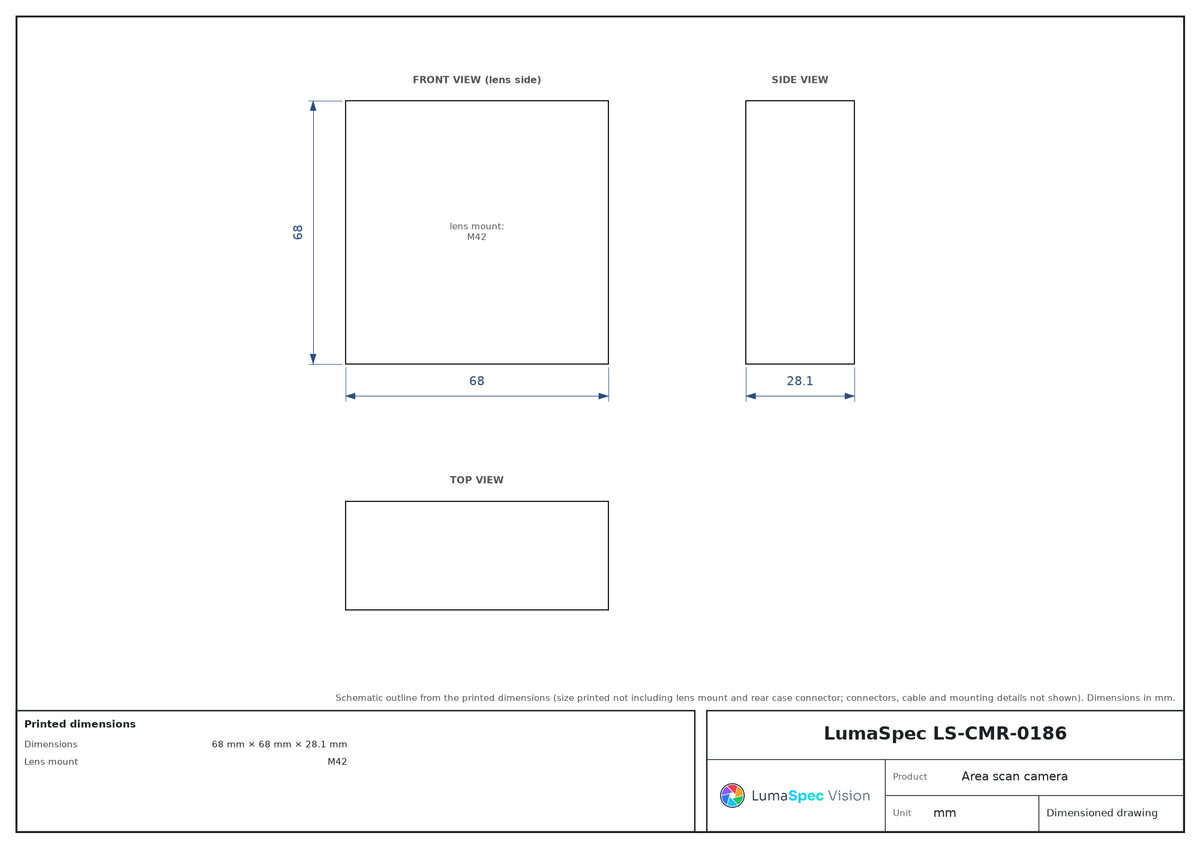

| Dimensions | 68 mm × 68 mm × 28.1 mm(not including lens mount and rear case connector) |
| Weight | 270g |
Other models in the UV 10GigE area scan cameras (LS-CMR-S12) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0185 | 4.2 MP, 2.0", 10GigE | $8,350.00 | Ships in 3-4 weeks | View |
