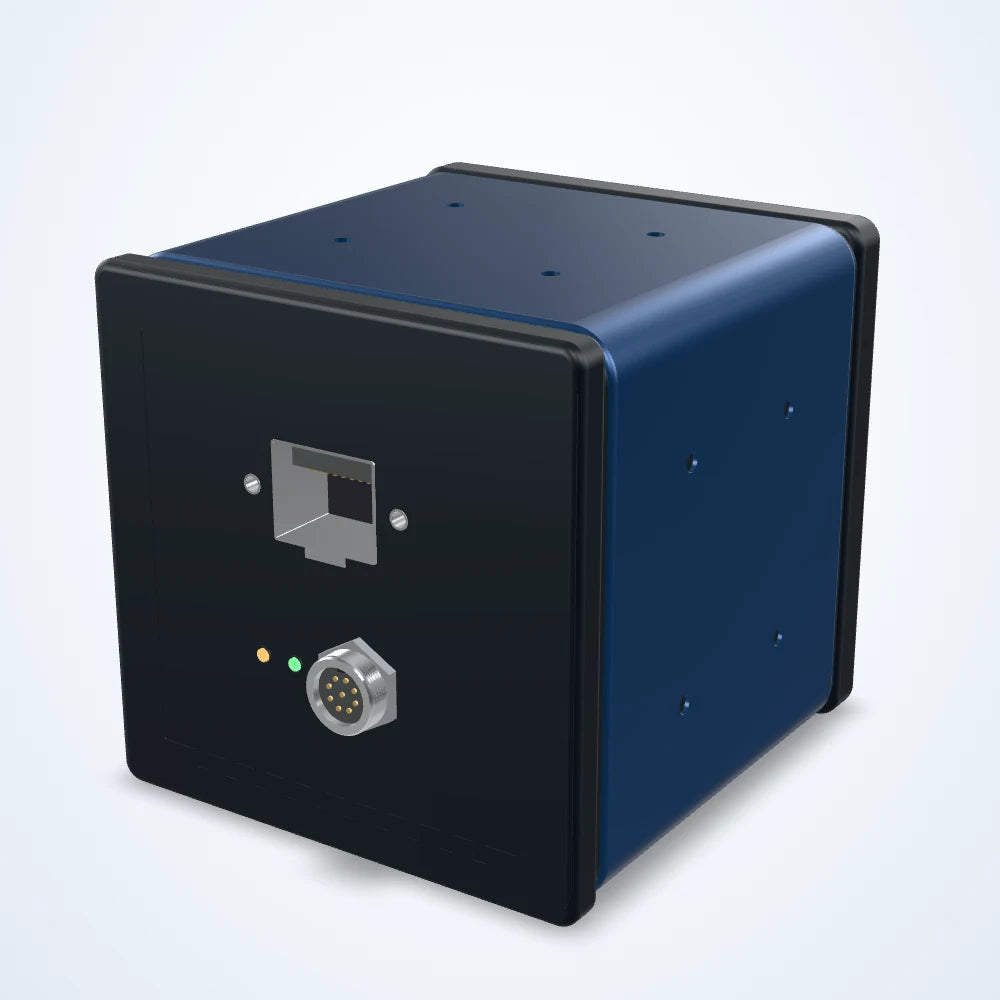

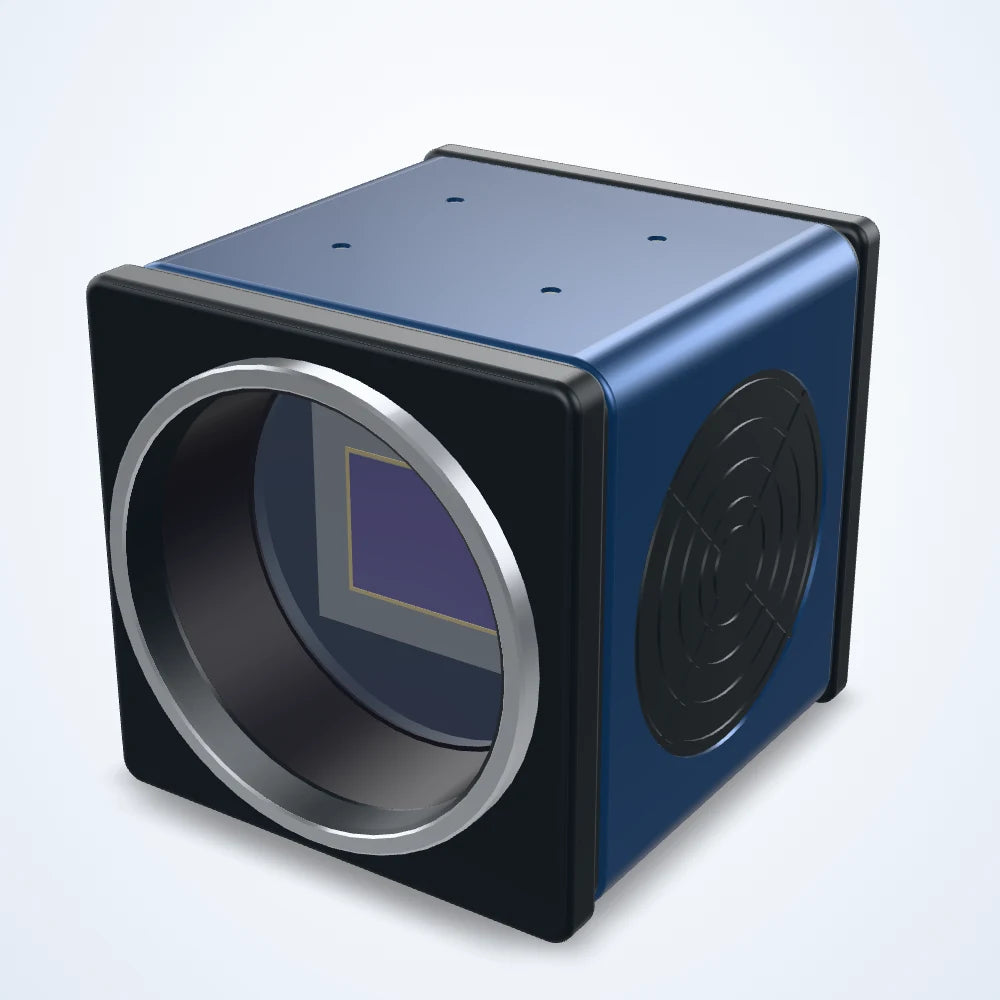

Rendered illustration: the actual product may differ in appearance.
Area scan cameras
26.2 MP NIR 10GigE area scan camera, GMAX0505, 1.2" global shutter, 41.5 fps, M58 (LS-CMR-0096)
Model LS-CMR-0096
- Resolution5120 × 5120
- Sensor1.2”
- Interface10 GigE
- Speed41.5 fps
- Lens mountM58
- Pixel size2.5 × 2.5 μm
$3,650.00
Ships in 3-4 weeks
4.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
26.2 MP area scan camera for inspection, measurement and guidance on the production line. GMAX0505 CMOS sensor (1.2"); 5120 x 5120 pixels of 2.5 μm; up to 41.5 frames per second; global shutter; 10GigE interface; M58 lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0096 |
|---|
Sensor and imaging
| Resolution | 5120 × 5120 |
|---|---|
| Pixel size | 2.5 × 2.5 μm |
| Max. frame rate | 41.5 fps |
| Sensor make | Gpixel |
| Sensor model | GMAX0505 |
| Shutter | Global Shutter |
| Sensor size | 1.2” |
| Sensor type | CMOS |
| Pixel bit depth | 12 bit |
| Dynamic range | 63 dB |
Interfaces and I/O
| Data interface | 10 GigE |
|---|---|
| Digital I/O | Opto-isolated input x 1, opto-isolated output x 1, bi-directional custom non-isolated I/O x 1,RS232 x 1 |
Environment and compliance
| Operating temperature | -30~70 °C (Storage), 0~50°C (Working) |
|---|---|
| Certification | GigE Vision and GenICam |
Computing
| Operating system | Windows |
|---|
Electrical
| Trigger mode | Via hardware trigger, software trigger or free run mode |
|---|---|
| Power supply | DC 9 - 24 V |
Mechanical
| Dimensions | M58/C-Mount(With fan): 74 × 74 × 78.7 mm |
|---|---|
| Lens mount | M58 |
| Shipping weight | 4.00 kg |
Other models in the NIR 10GigE area scan cameras (LS-CMR-S06) series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0095 | 26.2 MP, 1.2", 10GigE | $3,650.00 | Ships in 3-4 weeks | View |
