Rendered illustration: the actual product may differ in appearance.
Area scan cameras

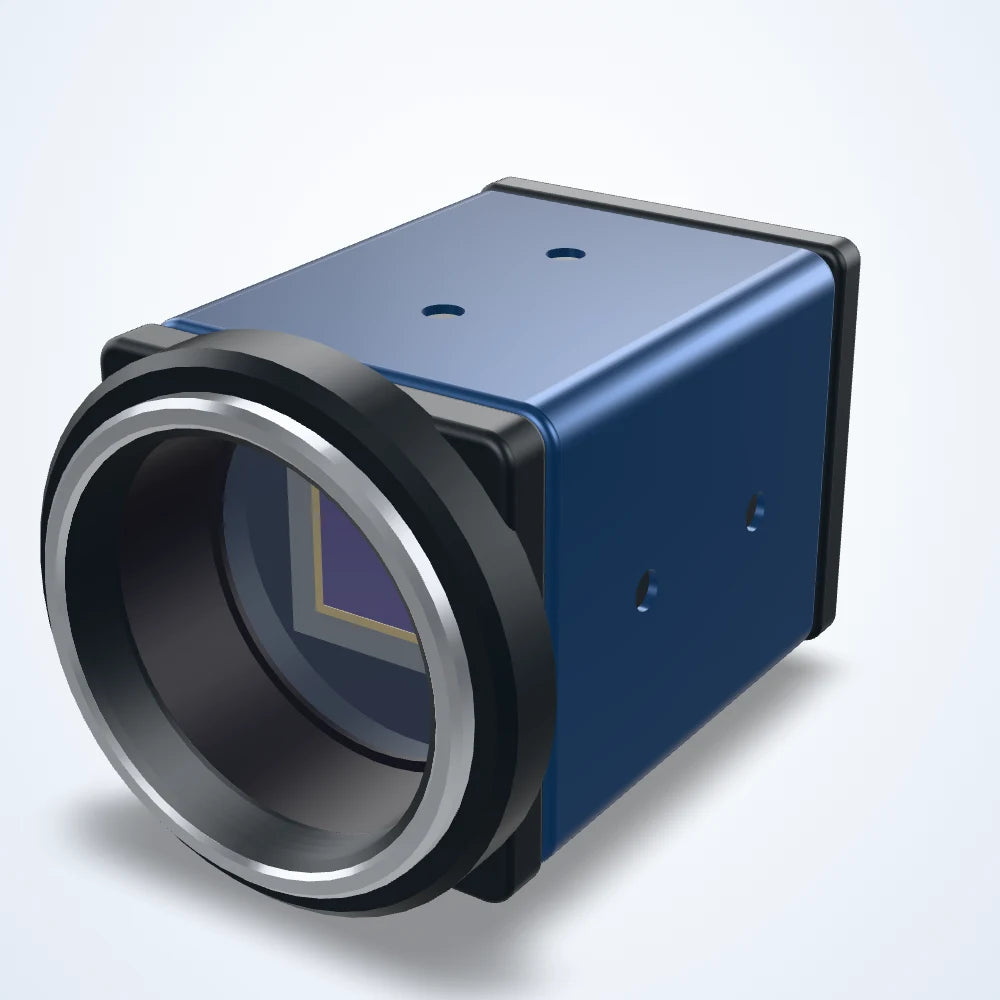

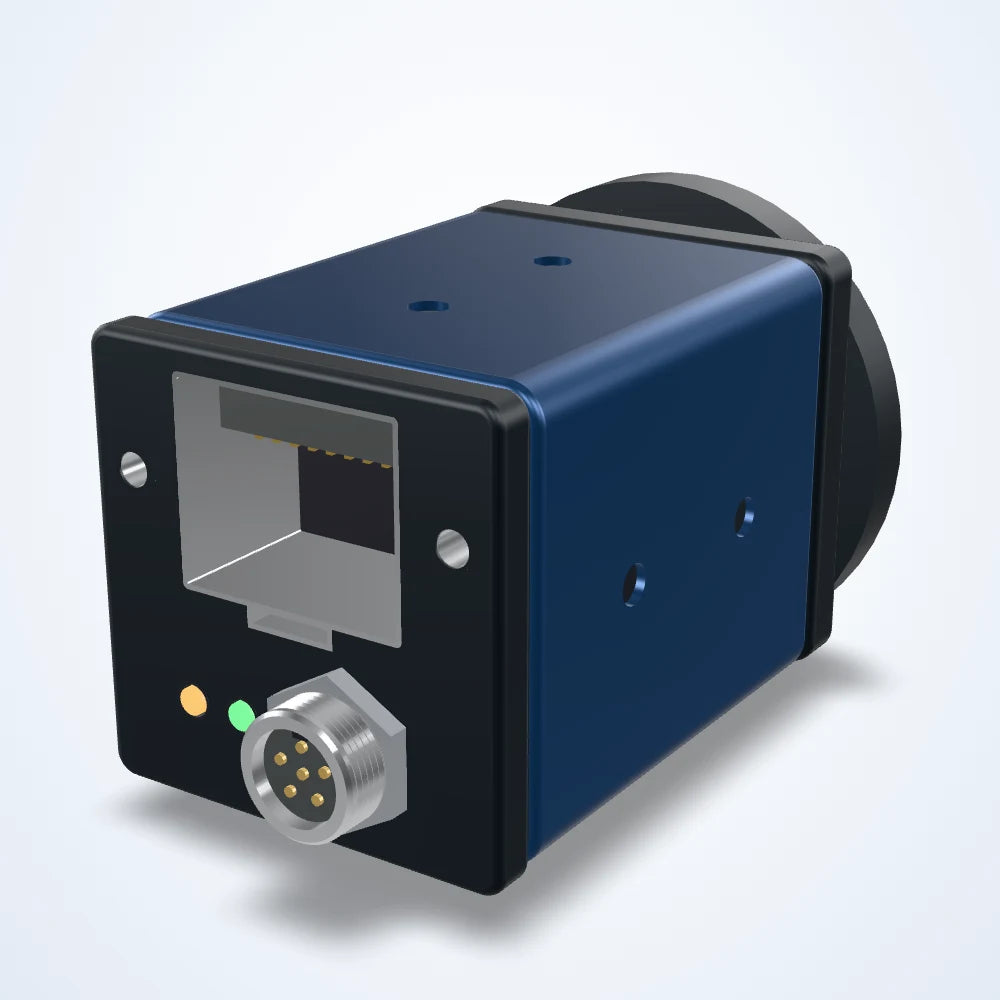

2.3 MP NIR GigE area scan camera, PYTHON2000, 2/3" global shutter, 50 fps (LS-CMR-0091)
Model LS-CMR-0091
- Resolution1920 px x 1200 px
- Sensor2/3"
- InterfaceGigE
- Speed50 fps
- Lens mountC-mount
- Pixel size4.8 μm x 4.8 μm
$717.00
Ships in 3-4 weeks
0.26 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
2.3 MP area scan camera for inspection, measurement and guidance on the production line. PYTHON2000 CMOS sensor (2/3"); 1920 x 1200 pixels of 4.8 μm; up to 50 frames per second; global shutter; GigE interface; C-mount lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0091 |
|---|
Sensor and imaging
| Resolution | 1920 px x 1200 px |
|---|---|
| Pixel size | 4.8 μm x 4.8 μm |
| Max. frame rate | 50 fps |
| Sensor make | ON Semiconductor |
| Sensor model | PYTHON 2000 |
| Shutter | Global Shutter |
| Sensor size | 2/3" |
| Sensor type | CMOS |
| Dynamic range | 60.0 dB |
| SNR | >38.5 dB |
| Pixel bit depth | 8 / 10 bits |
Interfaces and I/O
| Data interface | GigE |
|---|---|
| Digital I/O | 1 input(opto-isolated),1 output(opto-isolated) |
Environment and compliance
| Operating temperature | -30 - 50°C(Operating), -30 - 80°C(Storage) |
|---|---|
| Certification | GigE Vision and GenICam |
Computing
| Operating system | Windows, Linux |
|---|
Electrical
| Trigger mode | Soft Trigger,Hardware Trigger,Free Run |
|---|---|
| Power supply | PoE or 6-24 VDC |
Mechanical

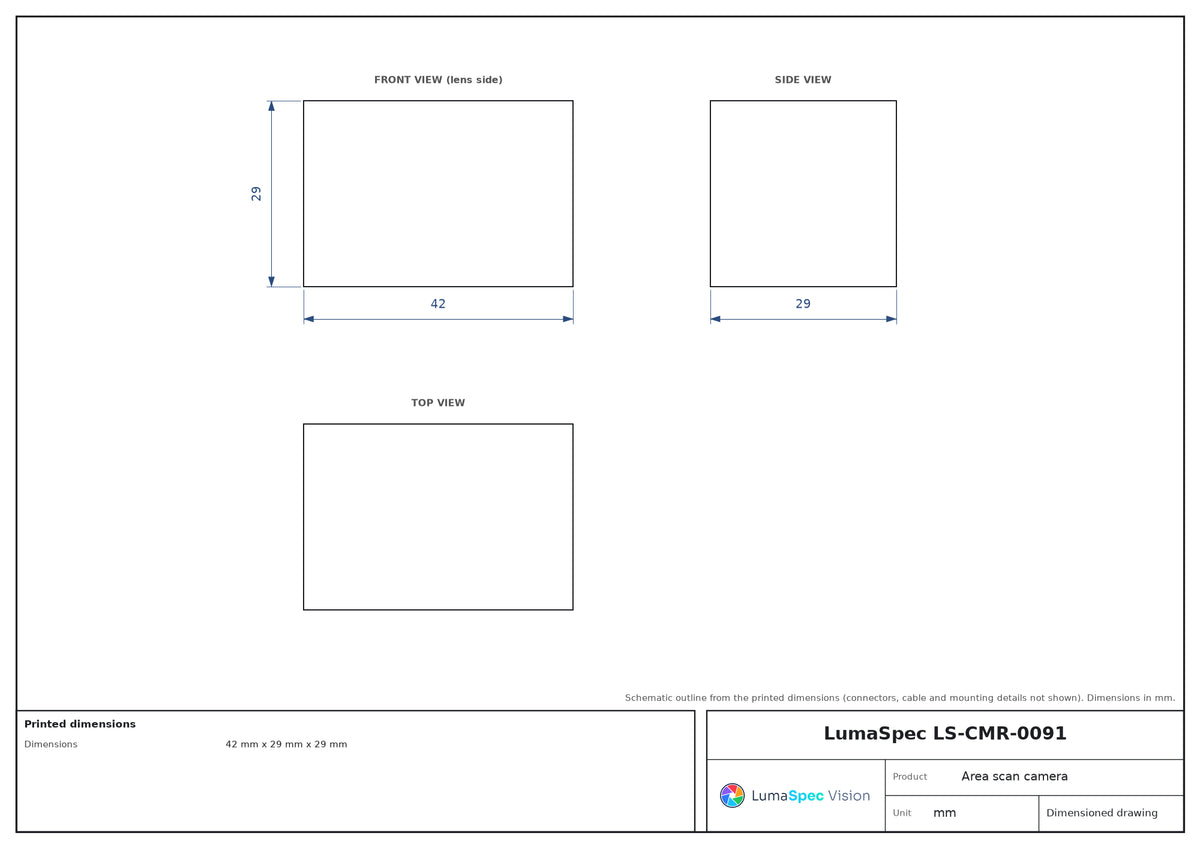

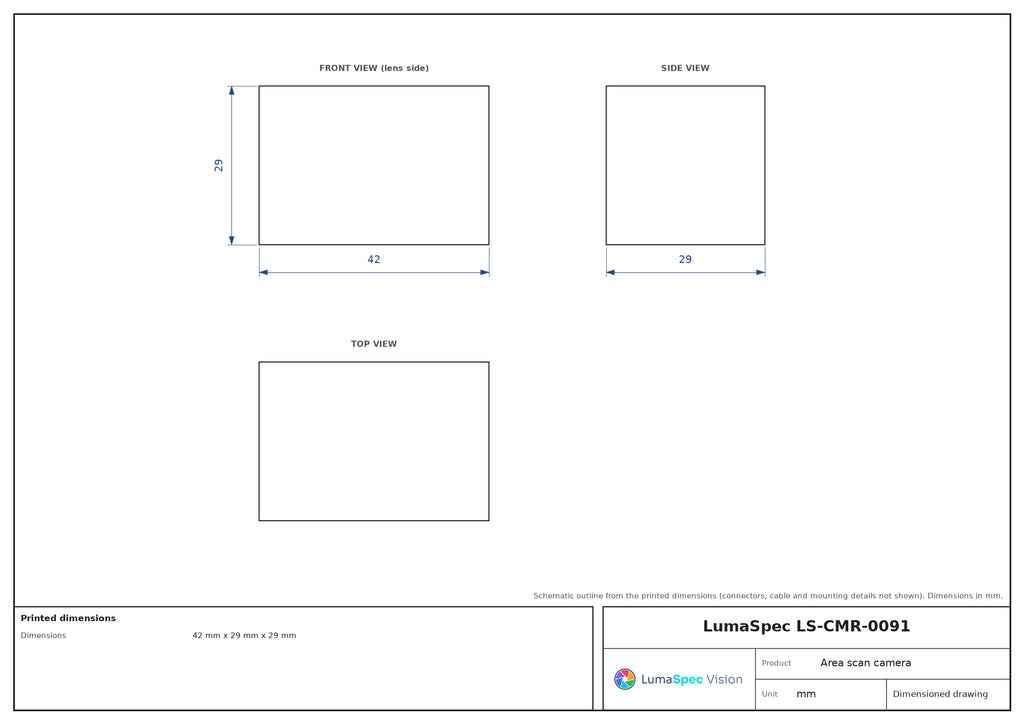

| Dimensions | 42 mm x 29 mm x 29 mm |
|---|---|
| Lens mount | C-mount (CS-Mount can be customized ) |
| Weight | 88g |
Other models in the NIR GigE area scan cameras (LS-CMR-S05) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CMR-0090 | 1.3 MP, 1/2", GigE | $589.00 | Ships in 3-4 weeks | View |
| LS-CMR-0089 | 1.3 MP, 2/3", GigE | $830.00 | Ships in 3-4 weeks | View |
| LS-CMR-0092 | 5.3 MP, 1", GigE | $856.00 | Ships in 3-4 weeks | View |
| LS-CMR-0093 | 5 MP, 2/3", GigE | $1,045.00 | Ships in 3-4 weeks | View |
| LS-CMR-0094 | 26.2 MP, 1.1", GigE | $2,390.00 | Ships in 3-4 weeks | View |
