Area scan cameras

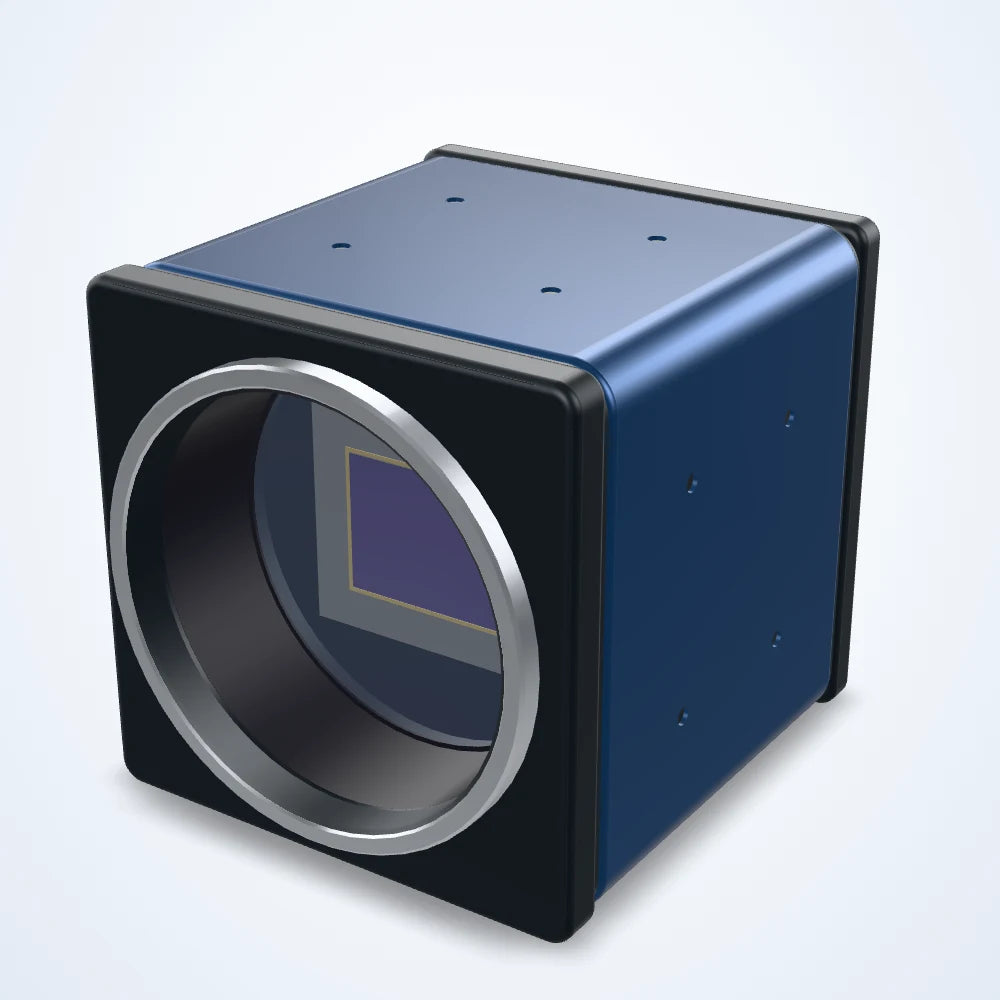

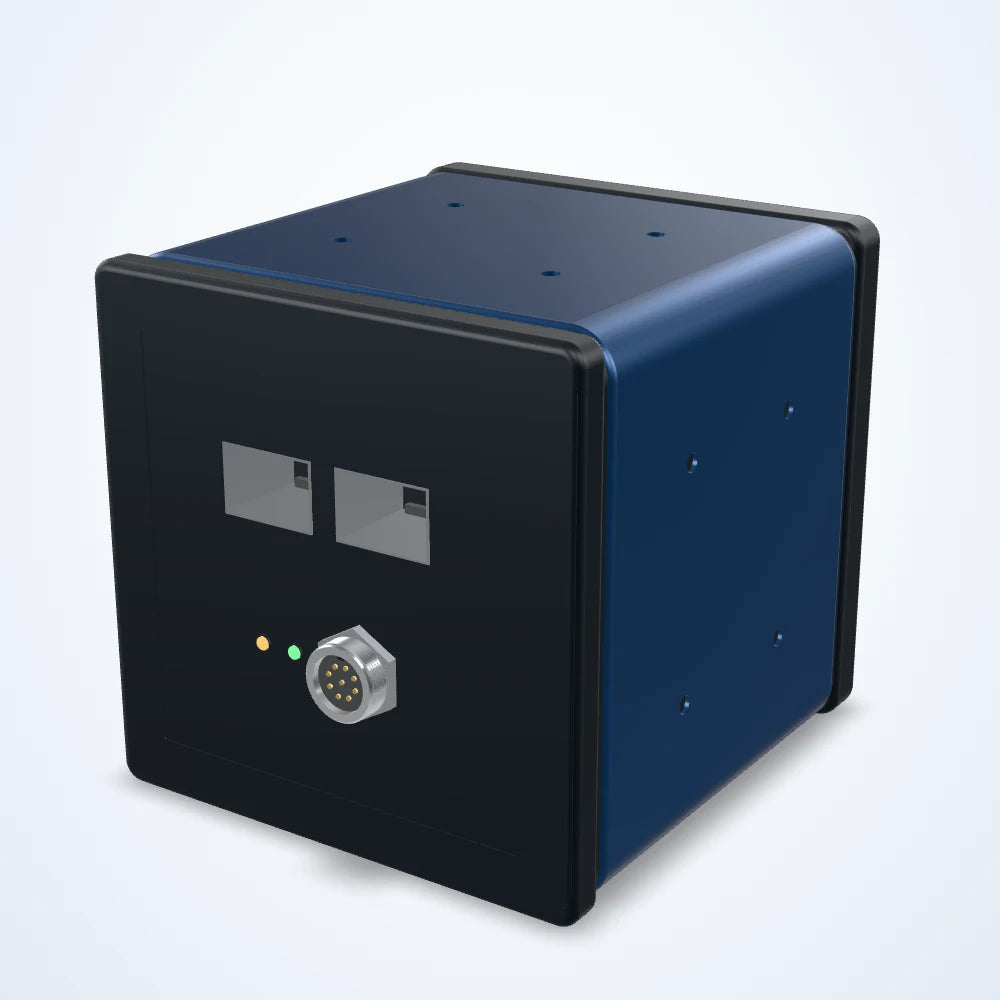

65.4 MP 10GigE (fibre) area scan camera, 2.3" global shutter, 15 fps, M58 (LS-CMR-0004)
Model LS-CMR-0004
- Resolution9344×7000
- Sensor2.3"
- Interface10 GigE Fiber
- Speed15.5 fps
- Lens mountM58
- Pixel size3.2 μm
Price on request
Ships in 3-4 weeks
2.0 kg shipping weight
Collect parts in your quote list; we reply with price, lead time and volume pricing.
65.4 MP area scan camera for inspection, measurement and guidance on the production line. 9344 x 7000 pixels of 3.2 μm; up to 15 frames per second; global shutter; 10GigE (fibre) interface; M58 lens mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CMR-0004 |
|---|
Sensor and imaging
| Resolution | 9344×7000 |
|---|---|
| Pixel size | 3.2 μm |
| Max. frame rate | 15.5 fps |
| Shutter | Global Shutter |
| Sensor size | 2.3" |
Interfaces and I/O
| Data interface | 10 GigE Fiber |
|---|
Mechanical
| Lens mount | M58 |
|---|---|
| Shipping weight | 2.00 kg |
