Collimated lights
Parallel (collimated) light sources for SDM telecentric lenses, beam 300 mm, length 639.9 mm (LS-CLM-0036)
Model LS-CLM-0036
- ColourRed, Green, Blue, White
- Beam diameter300 mm
- Working distance range155-310 mm
- Length L639.9 mm
$4,029.00
In stock - ships the same business day (4 available, order by 2 PM ET)
8.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Parallel (collimated) light sources for SDM telecentric lenses. Each light pairs with the SDM telecentric lens of the same field size; the front lens group is also listed under its own model. At a glance: working distance range 155-310 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CLM-0036 |
|---|---|
| Front lens group model (sold separately) | LS-LXR-0194 |
Optics
| Working distance range (mm) | 155-310 |
|---|---|
| Compatible telecentric lens | LS-TCL-1908 |
Light
| Color options | Red 630 nm, Green 520 nm, Blue 460 nm, White |
|---|---|
| Beam diameter (mm) | 300 |
Mechanical
| Length L (mm) | 639.9 |
|---|---|
| Outer diameter O.D (mm) | 376 |
| Shipping weight (estimated) | 8.66 kg |

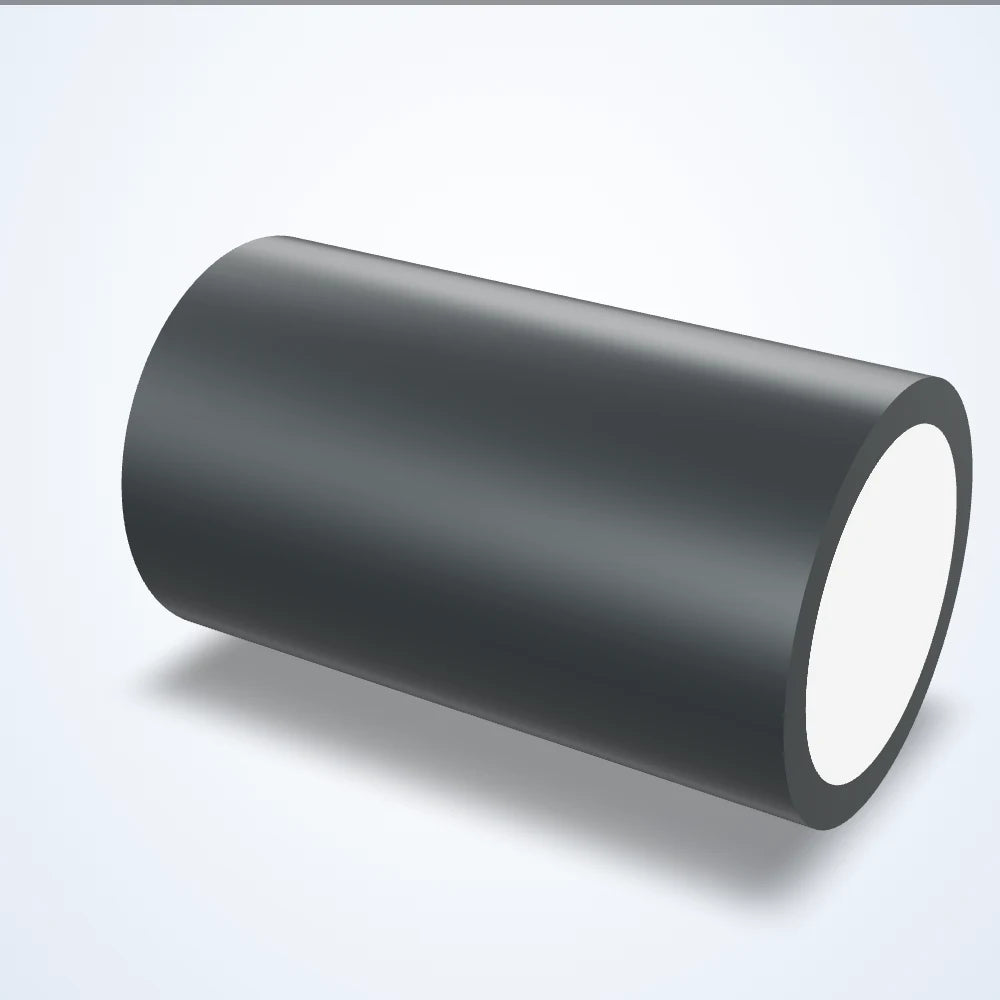

Rendered illustration: the actual product may differ in appearance.
