Collimated lights
Parallel (collimated) light sources for SDM telecentric lenses, beam 150 mm, length 332.1 mm (LS-CLM-0029)
Model LS-CLM-0029
- ColourRed, Green, Blue, White
- Beam diameter150 mm
- Working distance range100-200 mm
- Length L332.1 mm
$2,199.00
Ships in 2-3 weeks
2.43 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Parallel (collimated) light sources for SDM telecentric lenses. Each light pairs with the SDM telecentric lens of the same field size; the front lens group is also listed under its own model. At a glance: working distance range 100-200 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CLM-0029 |
|---|---|
| Front lens group model (sold separately) | LS-LXR-0188 |
Optics
| Working distance range (mm) | 100-200 |
|---|---|
| Compatible telecentric lens | SDM150H |
Light
| Color options | Red 630 nm, Green 520 nm, Blue 460 nm, White |
|---|---|
| Beam diameter (mm) | 150 |
Mechanical
| Length L (mm) | 332.1 |
|---|---|
| Outer diameter O.D (mm) | 188 |
| Shipping weight (estimated) | 2.43 kg |

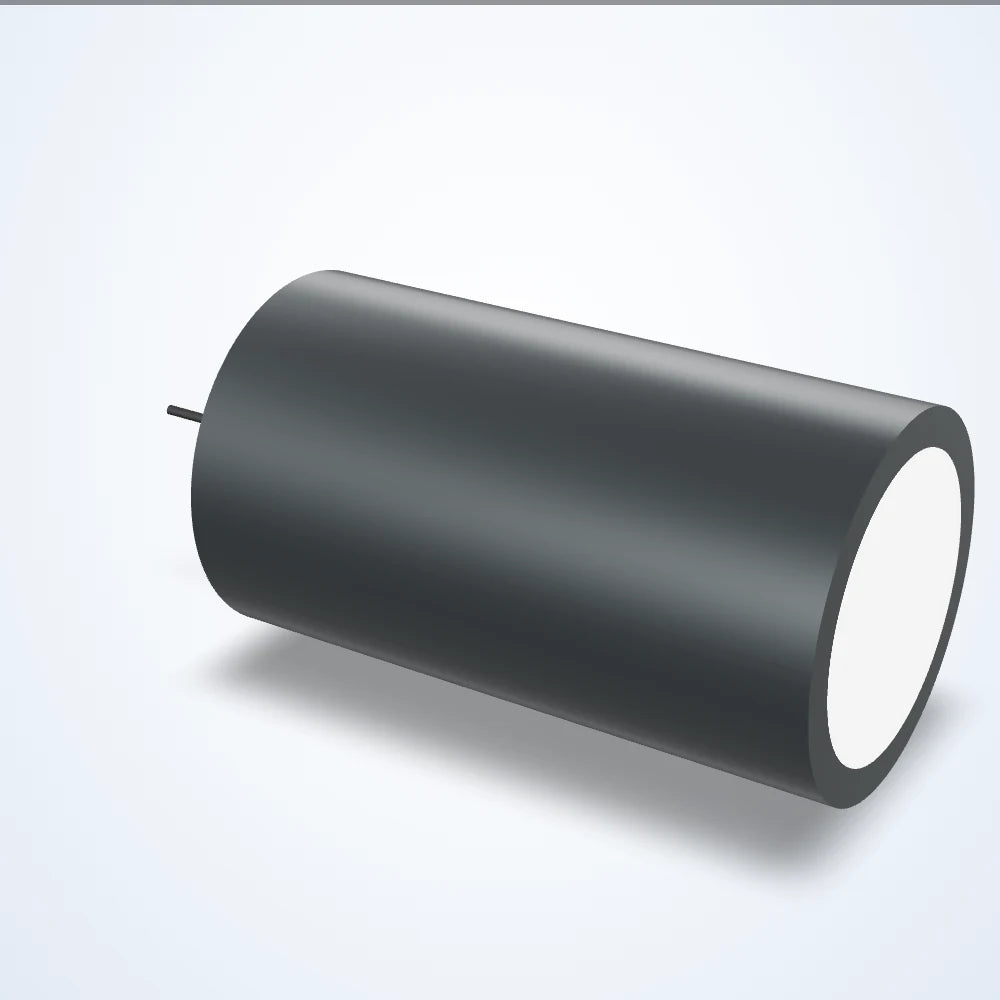

Rendered illustration: the actual product may differ in appearance.
