Representative photo of this series
Collimated lights
Collimated collector light, Ø115.87 mm (LS-CLM-0008)
Model LS-CLM-0008
- ColourRed, Blue, Green, White
- SizeL190.4xOut dia. 115.87(mm)
- Voltage24V
- Power5W
$1,159.00
Ships in 2-3 weeks
1.1 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Special structure adopted, more concentrated light,.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CLM-0008 |
|---|
Light
| LED colour | R(red)/W(white) |
|---|
Electrical
| Voltage | 24V |
|---|---|
| Power | 5W |
| Input voltage | 24V |
Mechanical

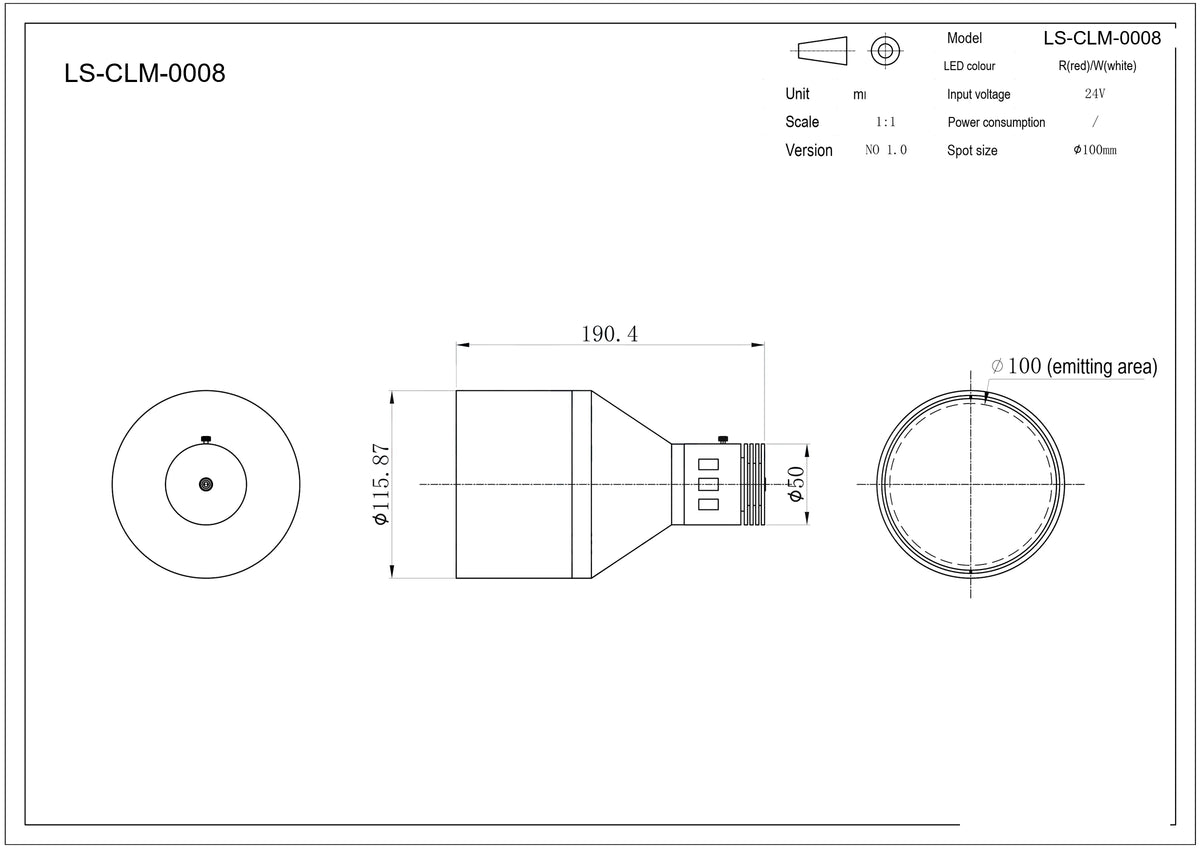

| Dimension | L190.4xOut dia. 115.87(mm) |
|---|---|
| Spot diameter(mm) | 100-110 |
| Shipping weight | 1.10 kg |
Other models in the Collimated collector light (LS-CLM-S01) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-CLM-0001 | Red, Blue, Green, White · L88xOut dia. 32(mm) | $429.00 | Ships in 2-3 weeks | View |
| LS-CLM-0002 | Red, Blue, Green, White · L105xOut dia. 42(mm) | $519.00 | Ships in 2-3 weeks | View |
| LS-CLM-0003 | Red, Blue, Green, White · 35 mm | $569.00 | Ships in 2-3 weeks | View |
| LS-CLM-0004 | Red, Blue, Green, White · L148xOut dia. 61(mm) | $699.00 | Ships in 2-3 weeks | View |
| LS-CLM-0005 | Red, Blue, Green, White · L150.05xOut dia. 72(mm) | $789.00 | Ships in 2-3 weeks | View |
| LS-CLM-0006 | Red, Blue, Green, White · L181.3xOut dia. 96(mm) | $969.00 | Ships in 2-3 weeks | View |
| LS-CLM-0007 | Red, Blue, Green, White · 86 mm | $1,059.00 | Ships in 2-3 weeks | View |
