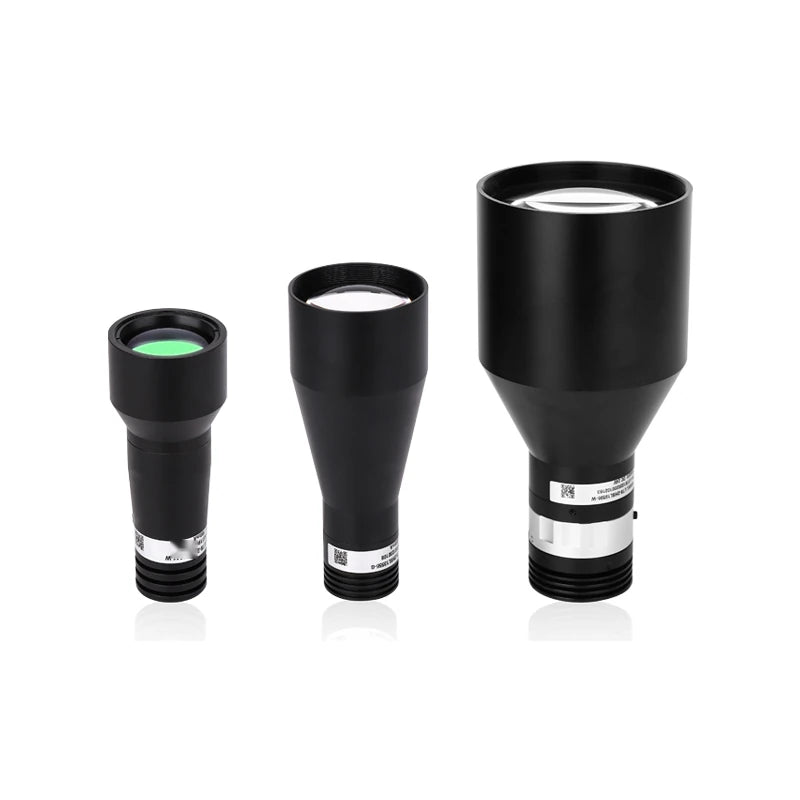

Representative photo of this series

Collimated lights

Collimated collector light, Ø44 mm (LS-CLM-0003)

Model LS-CLM-0003

ColourRed, Blue, Green, White
Emitting area35 mm
SizeL109xOut dia. 44(mm)
Voltage3V
Power3W

$569.00

Ships in 2-3 weeks

0.3 kg shipping weight

Color Red Blue Green White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Special structure adopted, more concentrated light,.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CLM-0003

Interfaces and I/O

Cable polarity	1: +, 2: -, 3: NC

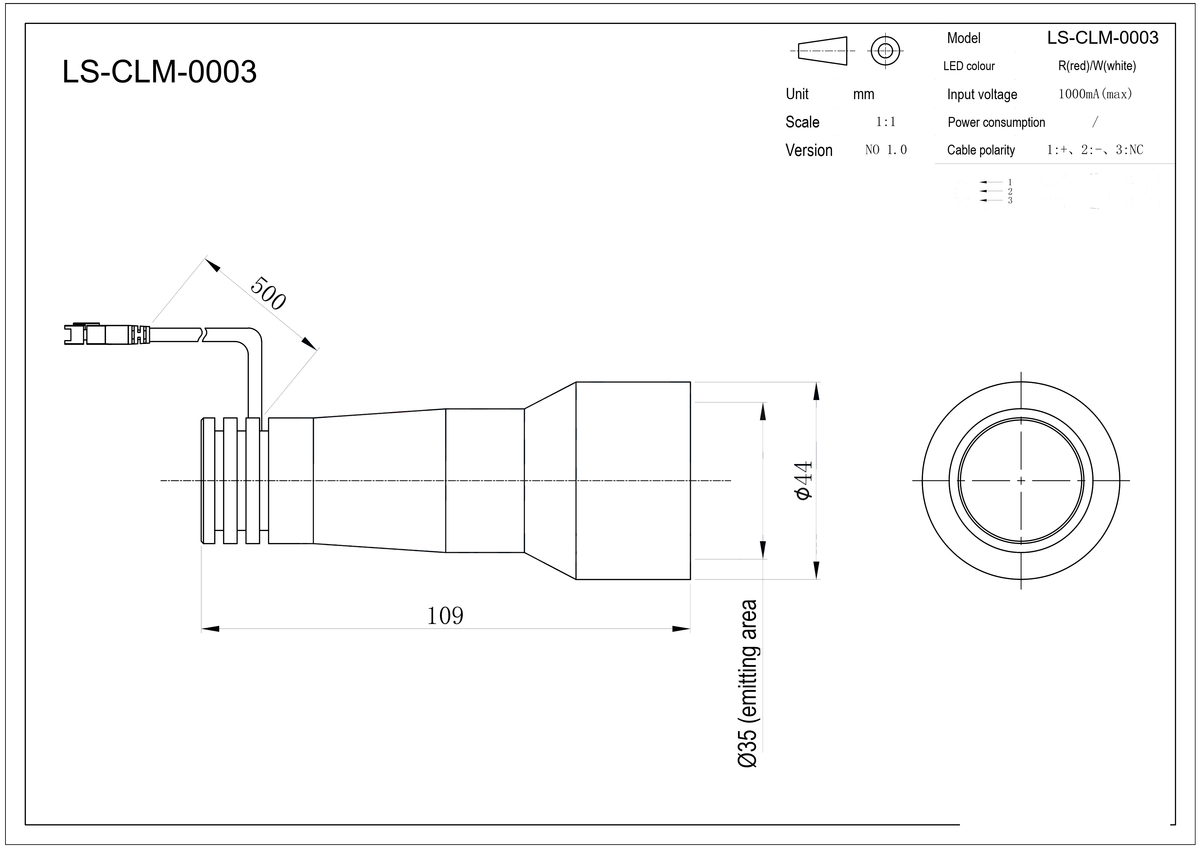

Cable (mm)	500 (drawing)

Light

LED colour	R(red)/W(white)
Emitting surface (mm)	35

Electrical

Voltage	3V
Power	3W

Mechanical

Dimension	L109xOut dia. 44(mm)
Spot diameter(mm)	35
Shipping weight	0.30 kg

Other models in the Collimated collector light (LS-CLM-S01) series

See all 8 models

Model	Size / key data	Price	Availability	Link
LS-CLM-0001	Red, Blue, Green, White · L88xOut dia. 32(mm)	$429.00	Ships in 2-3 weeks	View
LS-CLM-0002	Red, Blue, Green, White · L105xOut dia. 42(mm)	$519.00	Ships in 2-3 weeks	View
LS-CLM-0004	Red, Blue, Green, White · L148xOut dia. 61(mm)	$699.00	Ships in 2-3 weeks	View
LS-CLM-0005	Red, Blue, Green, White · L150.05xOut dia. 72(mm)	$789.00	Ships in 2-3 weeks	View
LS-CLM-0006	Red, Blue, Green, White · L181.3xOut dia. 96(mm)	$969.00	Ships in 2-3 weeks	View
LS-CLM-0007	Red, Blue, Green, White · 86 mm	$1,059.00	Ships in 2-3 weeks	View
LS-CLM-0008	Red, Blue, Green, White · L190.4xOut dia. 115.87(mm)	$1,159.00	Ships in 2-3 weeks	View
