Cables

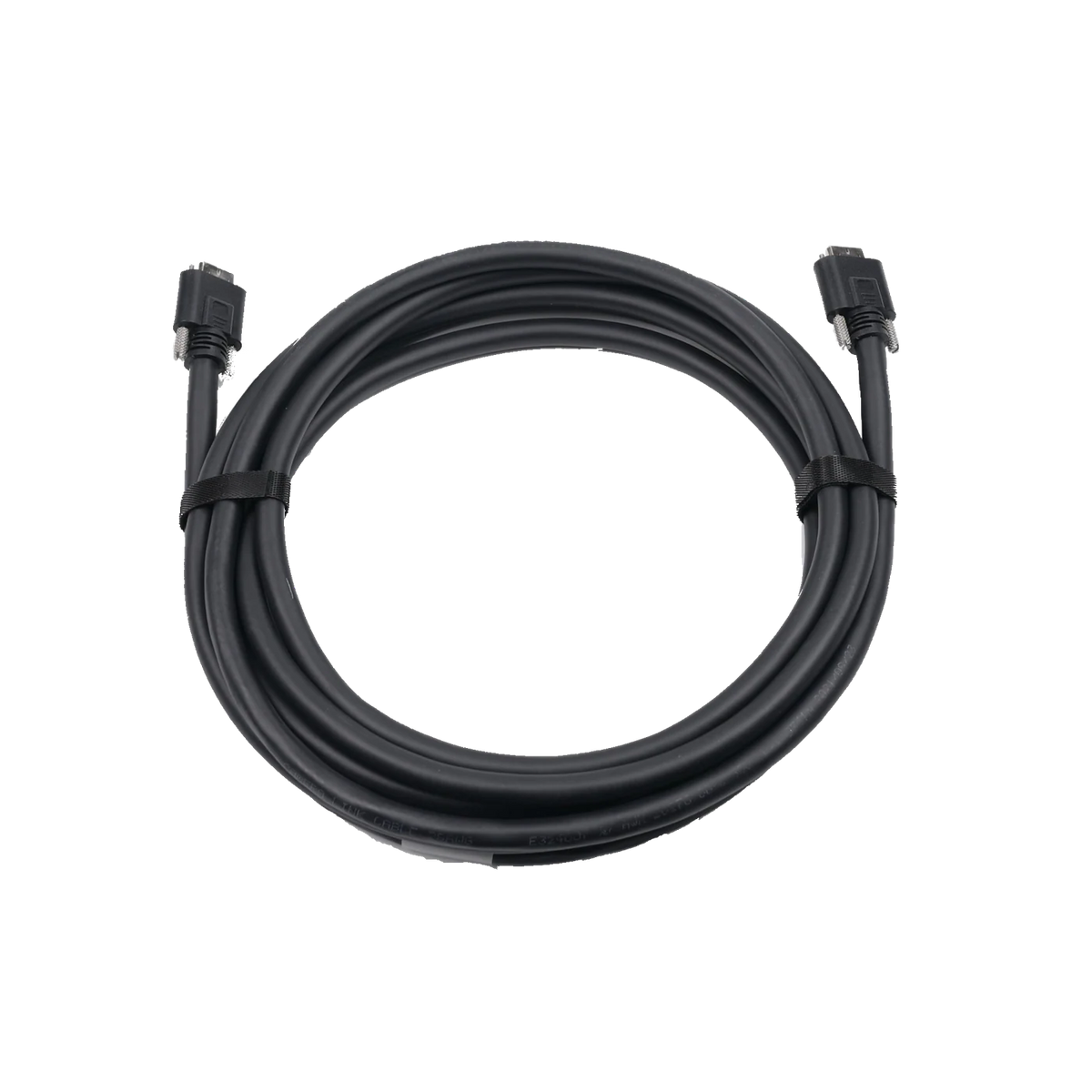

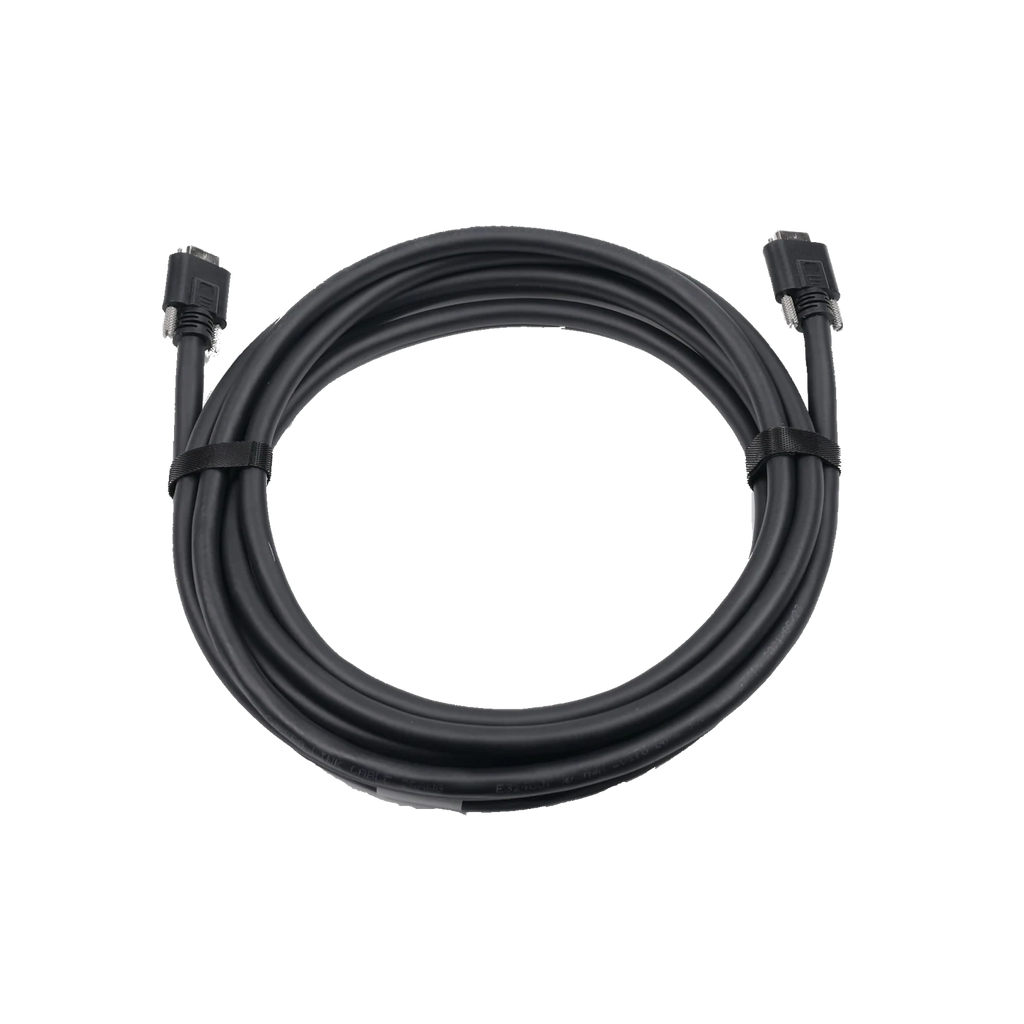

Camera Data Cable, SDR to SDR, 7 m (LS-CBL-0059)
Model LS-CBL-0059
- Length7 m
- End ASDR
- End BSDR
- Diameter9.5 mm
- Max. voltage30 VDC
- JacketPVC
$309.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, SDR to SDR, 7 m. The Camera Link Standard Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0059 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | SDR |
|---|---|
| End B connector | SDR |
| Cable diameter | 9.5 mm |
| Cable mechanical | (28AWG*1P+AL)*11C+28AWG*2C+MY+AL+B, UL20276 |
| Cable color | Black |
| Connector durability | ≥500 cycles |
| Applicable scenario | Static scenes |
Environment and compliance
| Working temperature | -20°C~80°C |
|---|---|
| Certification | RoHS, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 7 m |
|---|---|
| Min. bending radius | 114 mm |
| Shipping weight (estimated) | 0.31 kg |
