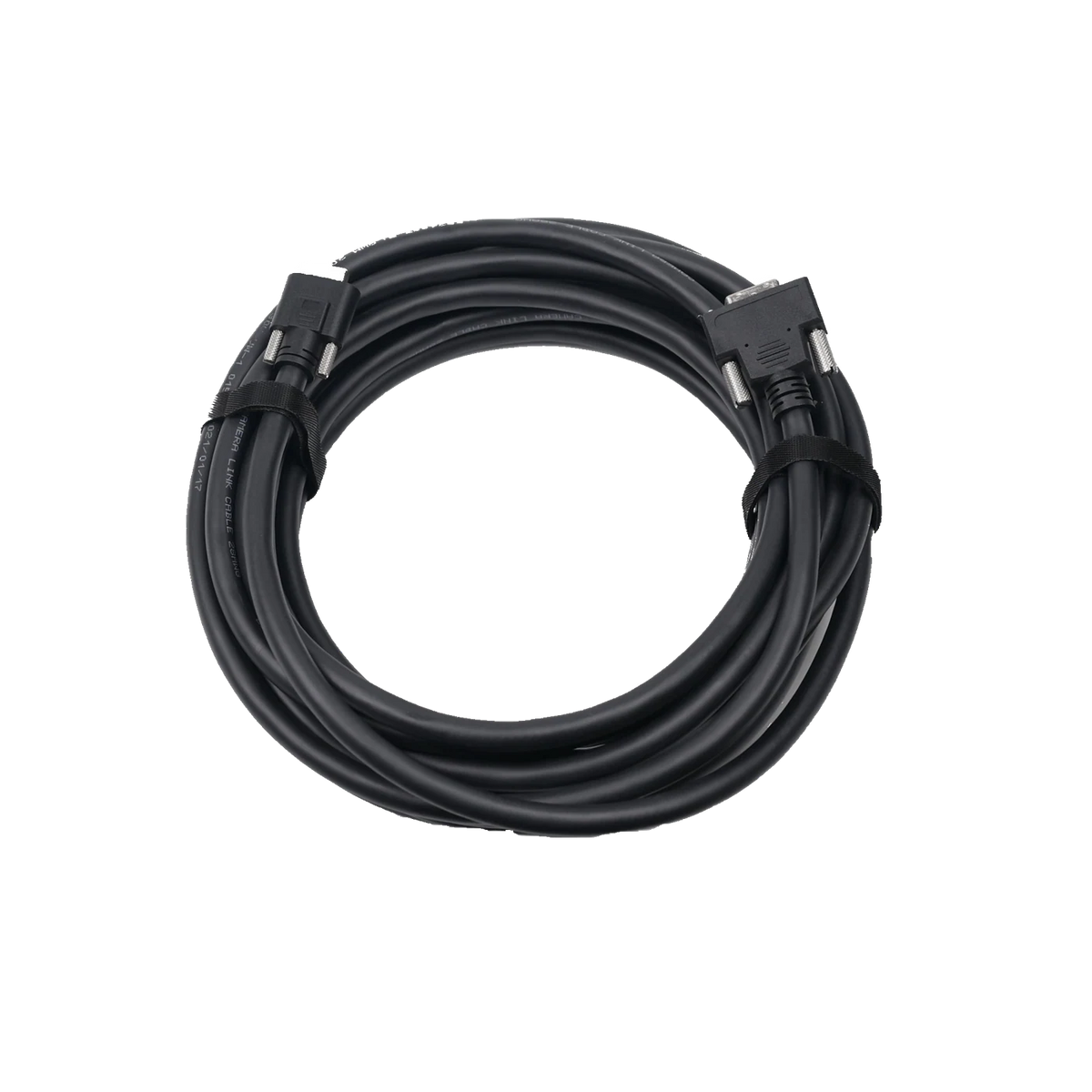

Camera Data Cable, SDR26 to MDR26, 5 m (LS-CBL-0044)
Model LS-CBL-0044
- Length5 m
- End ASDR26
- End BMDR26
- Diameter9.5 mm
- Max. voltage30 VDC
- JacketPVC
$259.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, SDR26 to MDR26, 5 m. The Camera Link Flex Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0044 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | SDR26 |
|---|---|
| End B connector | MDR26 |
| Cable diameter | 9.5 mm |
| Cable mechanical | UL20276 |
| Cable color | Black |
| Connector durability | 500 cycles |
| Applicable scenario | Drag chain |
Environment and compliance
| Working temperature | -20°C~80°C |
|---|---|
| Certification | UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 5 m |
|---|---|
| Min. bending radius | 114 mm |
| Max. U-type bending cycles | 5 million times |
| Shipping weight (estimated) | 0.31 kg |
