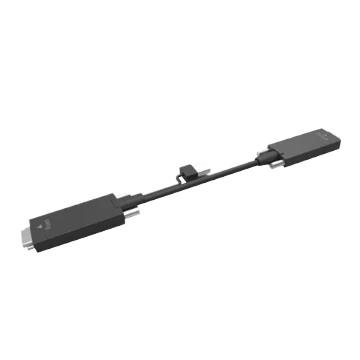

Camera Data Cable, SDR26 to SDR26(Board side with Type A USB3.0 power take-off connector), 8m (LS-CBL-0046)
  • Camera Data Cable, SDR26 to SDR26(Board side with Type A USB3.0 power take-off connector), 8m (LS-CBL-0046)

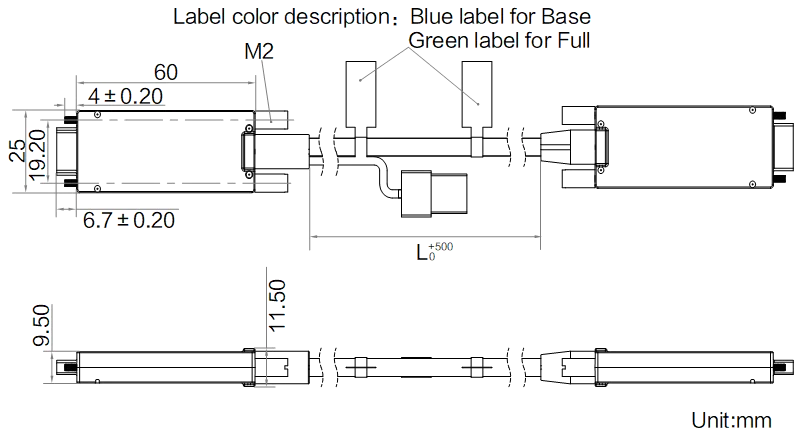

  • LS-CBL-0046 dimensions (mm)

Cables

Camera Data Cable, SDR26 to SDR26(Board side with Type A USB3.0 power take-off connector), 8m (LS-CBL-0046)

Model LS-CBL-0046

  • Length8m
  • End ASDR26
  • Diameter5.6 ± 0.2 mm
  • JacketTPU
$339.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Camera Data Cable, SDR26 to SDR26(Board side with Type A USB3.0 power take-off connector), 8m (LS-CBL-0046)LS-CBL-0046

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Camera Data Cable, SDR26 to SDR26(Board side with Type A USB3.0 power take-off connector), 8m. Camera Link AOC Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CBL-0046
JacketTPU
Allowable tensile forceWhen installed: 300 N; When used: 150 N
Allowable crushing forceLong term: 200 N/100 mm; Short term: 350 N/100 mm
PackagingIndividual package and paper box

Interfaces and I/O

End A connectorSDR26
End B connectorSDR26(Board side with Type A USB3.0 power take-off connector)
Cable diameter5.6 ± 0.2 mm
Cable mechanicalFiber*2C+(37/0.1)*1C+AL+B
Cable colorBlack
Connector durability1000 cycles
Applicable scenarioDrag chain

Environment and compliance

Working temperature0°C ~ 70°C

Electrical

Power supply5 V-400 mA

Mechanical

Length8m
Min. bending radiusWhen installed: 100 mm; When used: 67.2 mm
Max. U-type bending cycles5 million times
Shipping weight (estimated)0.31 kg
