72.5 x 14 mm LED bar light, 80.5 x 21 x 31.5 mm (LS-C75X-A)
  • 72.5 x 14 mm LED bar light, 80.5 x 21 x 31.5 mm (LS-C75X-A)

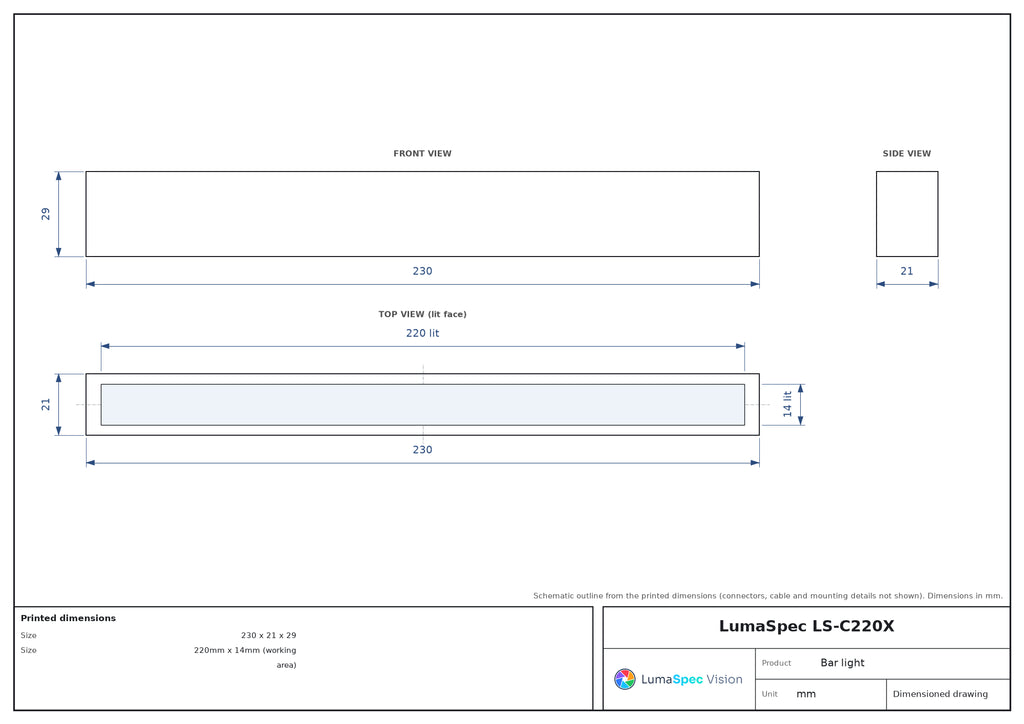

  • LS-C220X dimensions (mm)

Bar lights

LED bar light, 220 x 14 mm (LS-C220X)

Model LS-C220X

  • ColourWhite, Blue, Red, Green
  • TypeStandard
  • Size220mm x 14mm (working area)
  • Current (<A)0.53
$159.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.35 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

LED bar lights with 75, 145 and 220 mm x 14 mm working areas in white, blue, red and green.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-C220X

Light

ColourWhite / Blue / Red / Green

Electrical

Current (<A)0.53
Power (<W)11.6 (White, Blue, Green); 9.8 (Red)

Mechanical

Size220mm x 14mm (working area)
Size (mm)230 x 21 x 29
Shipping weight0.35 kg

Photo shows a representative model of this series; see the specifications for this model.

Other models in the LED bar light series

See all 11 models
ModelSize / key dataPriceAvailabilityLink
LS-C75X-A 72.5 x 14 mm $69.00 10 in stock View
LS-C75X-P 72.5 x 14 mm $69.00 16 in stock View
LS-C75X White, Blue, Red, Green · Standard $79.00 13 in stock View
LS-C145X White, Blue, Red, Green · Standard $119.00 17 in stock View
LS-C220X-A 220 x 14 mm $149.00 17 in stock View
LS-C220X-P 220 x 14 mm $149.00 14 in stock View
LS-C295X-A 295 x 14 mm $189.00 11 in stock View
LS-C295X-P 295 x 14 mm $189.00 17 in stock View
LS-C370X-A 370 x 14 mm $229.00 14 in stock View
LS-C370X-P 370 x 14 mm $229.00 17 in stock View
