Lens accessories
Extension Ring C-C T10 (LS-C-C-T10)
Model LS-C-C-T10
- TypeAdapters & rings
- Camera mountC-mount
- Thickness10 mm
$39.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.18 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Extension Ring C-C T10. Supports lens mount conversion with flexible compatibility.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-C-C-T10 |
|---|
Environment and compliance
| Certification | RoHS 2.0 |
|---|
Mechanical
| Camera mount | C-mount |
|---|---|
| Lens mount | C-mount |
| Thickness | 10 mm |
| Shipping weight (estimated) | 0.18 kg |

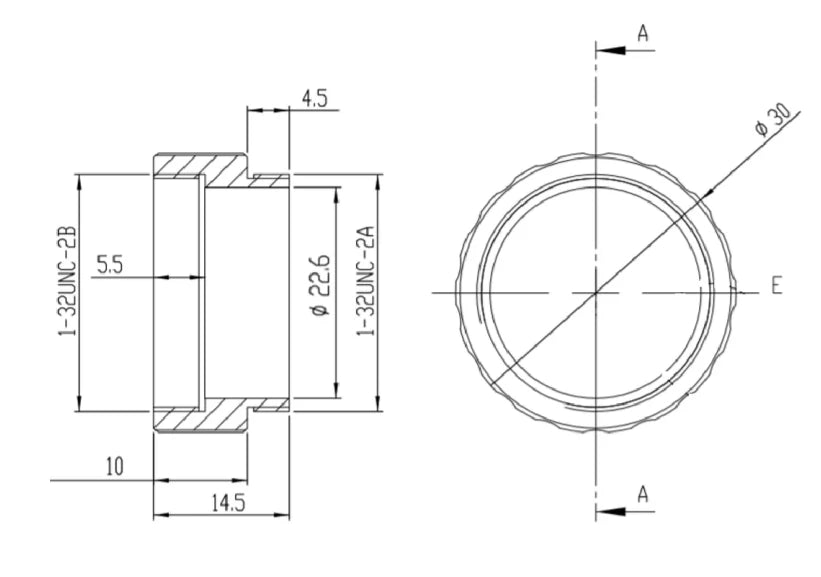

| Outer diameter (from drawing) | Ø30 mm |
| Overall length incl. threads (from drawing) | 14.5 mm |

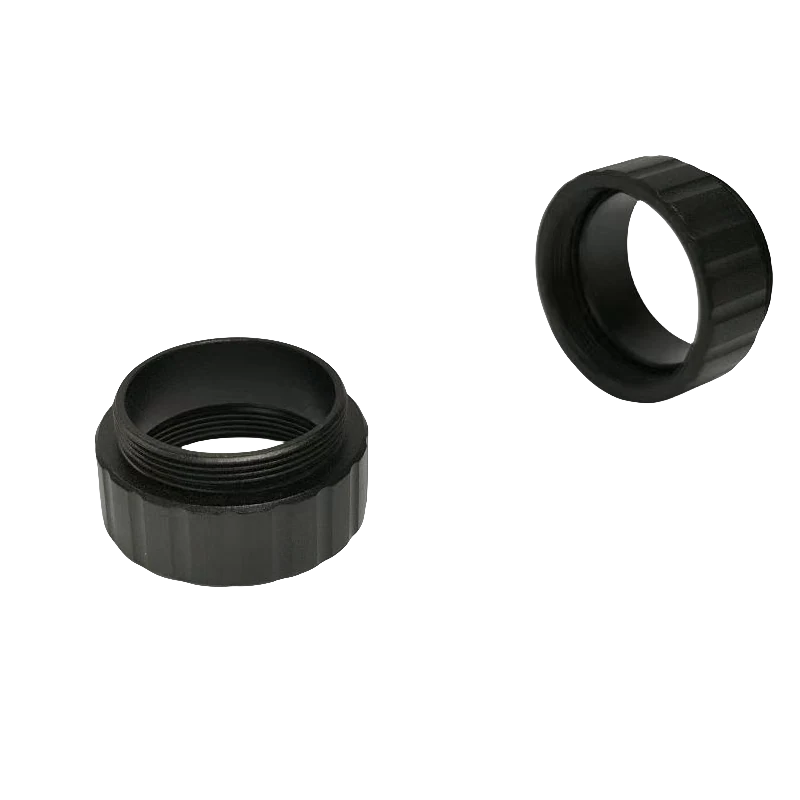

Photo shows a representative model of this series; see the specifications for this model.
