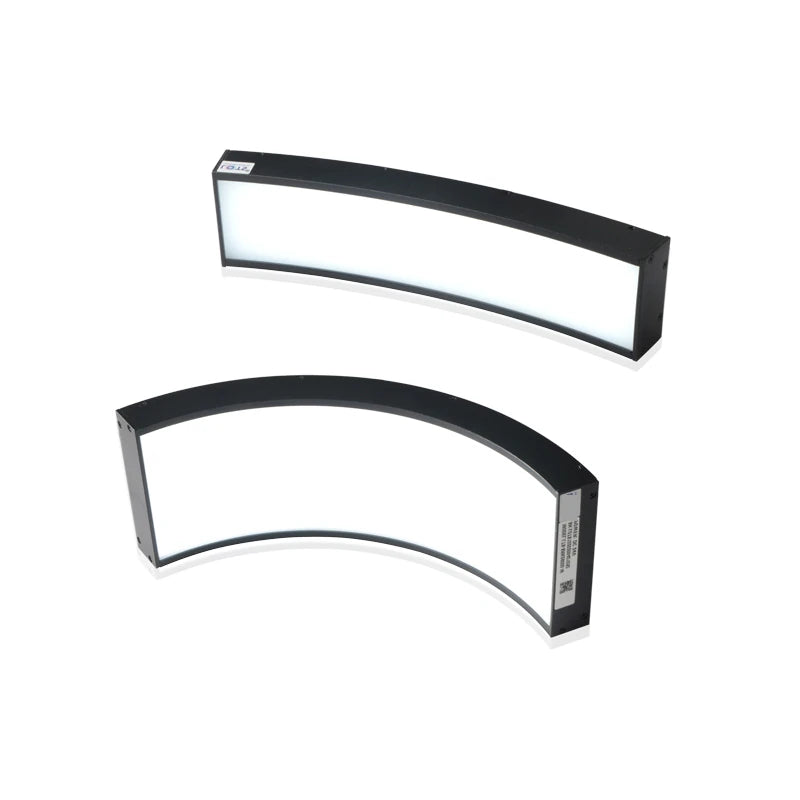

Representative photo of this series

Backlights

Arc-shaped back light, Ø140 mm (LS-BKL-1552)

Model LS-BKL-1552

ColourRed, Green, Blue, White
Emitting area142 mm
Voltage24V
Power24.0W/30.3W

$179.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Semi-curvy shape design, used with high uniformity diffuser, to make the uniformity higher. Are-shaped and dimensions can be customized.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-1552
Note	UV & IR light can be customized as required.

Interfaces and I/O

Cable polarity	1: +, 2: NC, 3: -

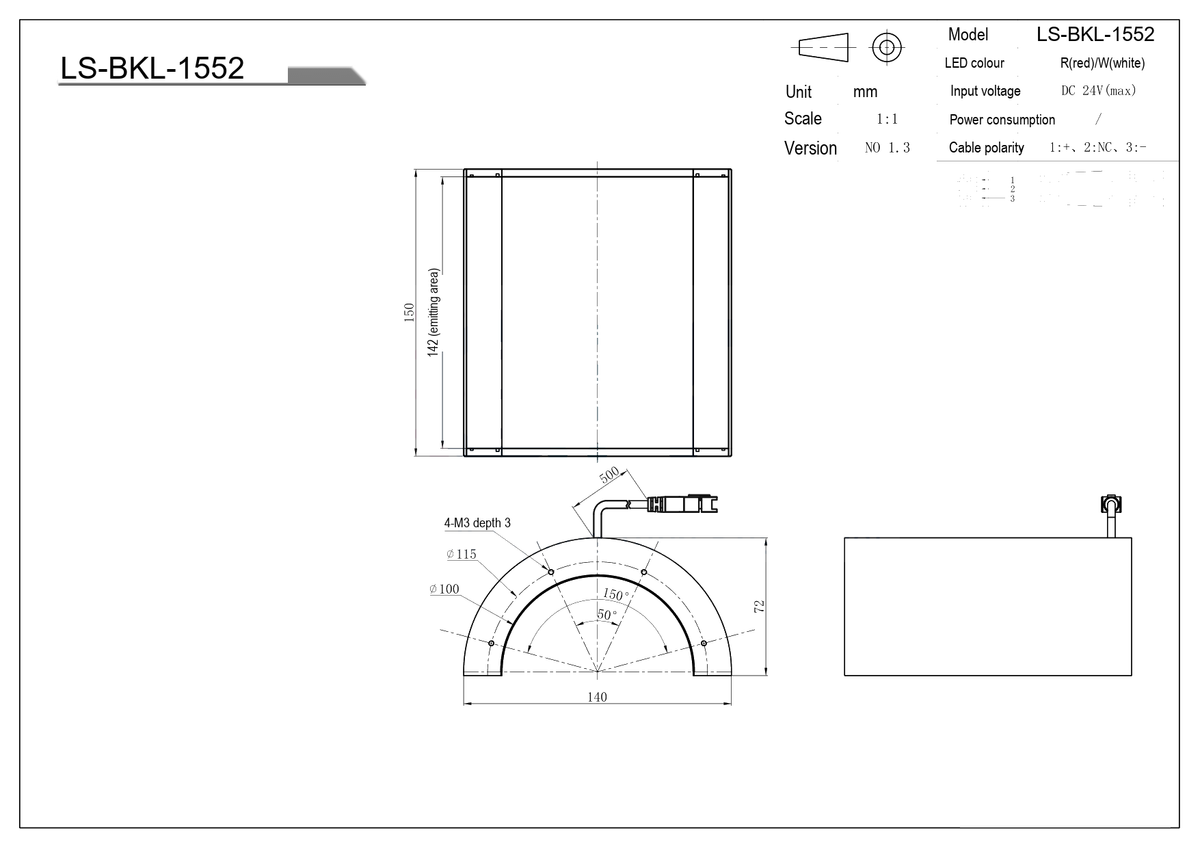

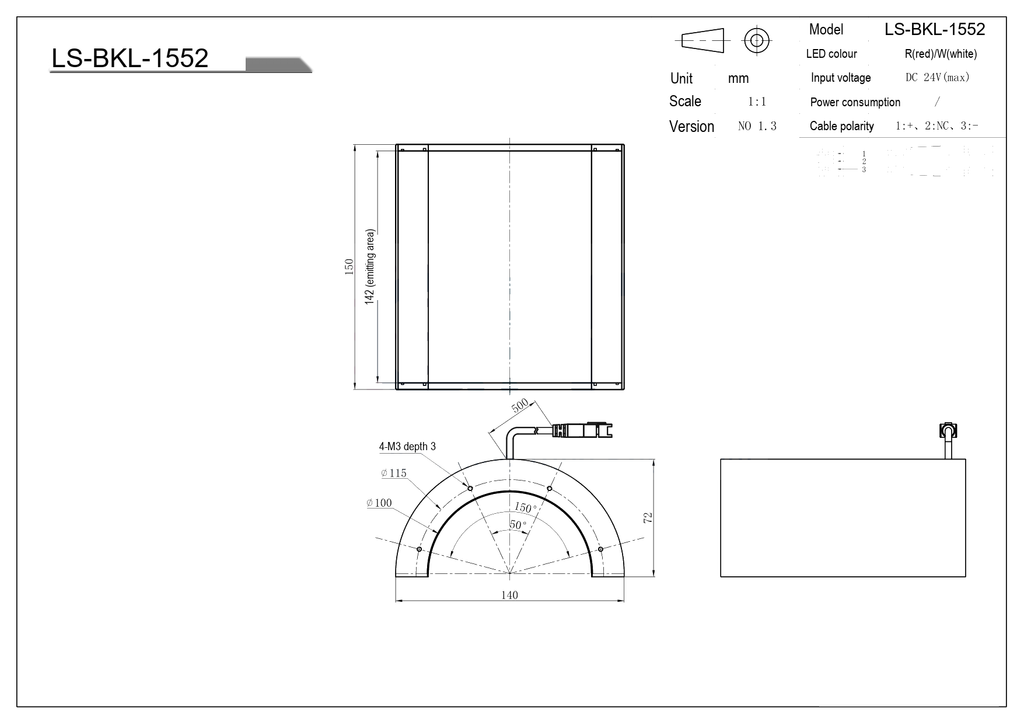

Cable (mm)	500 (drawing)

Light

LED colour	R(red)/W(white)
Emitting surface (mm)	142

Electrical

Voltage	24V
Power	24.0W/30.3W
Input voltage	DC 24V (max)

Mechanical

Dimension	Out dia. 140,Inner dia. 100,Height 72mm
Mounting holes	4-M3 depth 3
Shipping weight	0.50 kg
