Representative photo of this series

Backlights

Arc-shaped back light, Ø290 mm (LS-BKL-1550)

Model LS-BKL-1550

ColourRed, Green, Blue, White
Emitting area75 mm
Voltage24V
Power20.2W/26.0W

$289.00

Ships in 2-3 weeks

0.5 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

Semi-curvy shape design, used with high uniformity diffuser, to make the uniformity higher. Are-shaped and dimensions can be customized.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-1550
Note	UV & IR light can be customized as required.

Interfaces and I/O

Cable polarity	1: +, 2: NC, 3: -

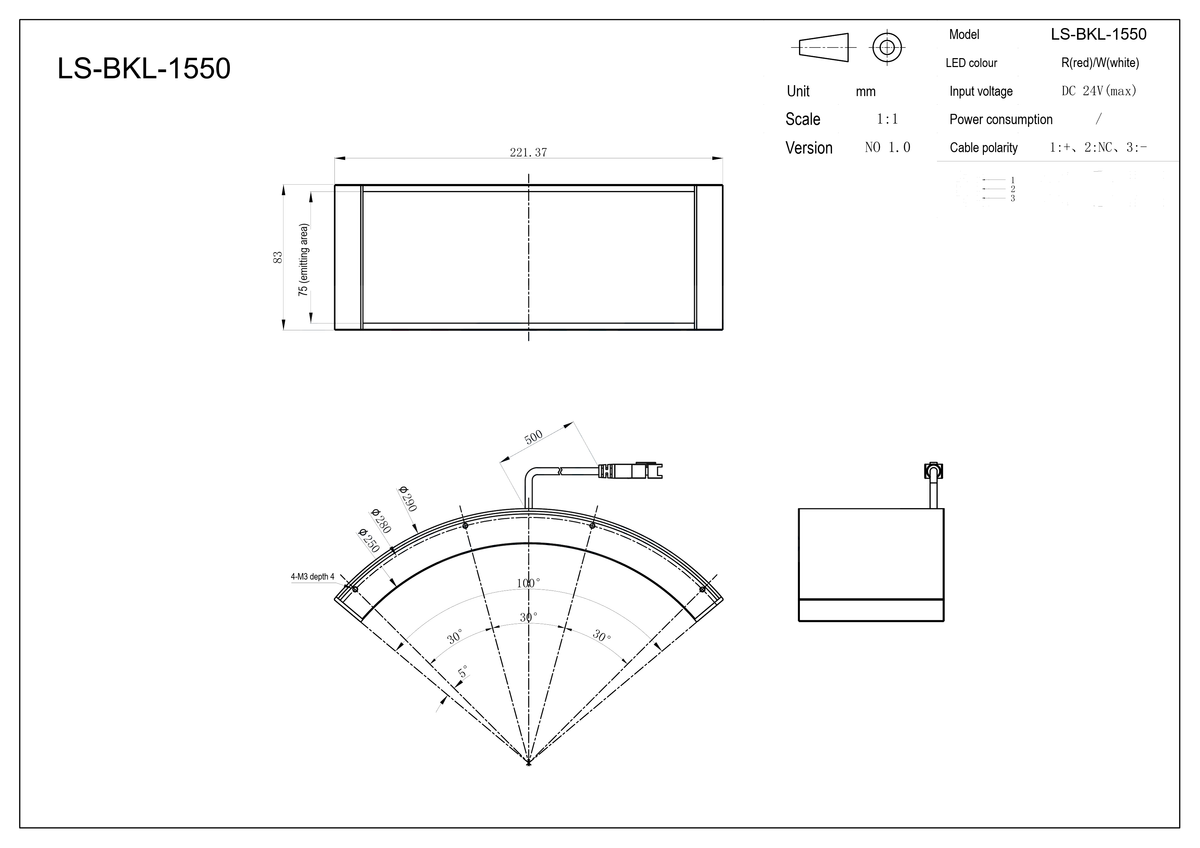

Cable (mm)	500 (drawing)

Light

LED colour	R(red)/W(white)
Emitting surface (mm)	75

Electrical

Voltage	24V
Power	20.2W/26.0W
Input voltage	DC 24V (max)

Mechanical

Dimension	Out dia. 290,Inner dia. 250,Height 83mm
Mounting holes	4-M3 depth 4
Shipping weight	0.50 kg

Other models in the Arc-shaped back light (LS-BKL-S138) series

See all 7 models

Model	Size / key data	Price	Availability	Link
LS-BKL-1552	Red, Green, Blue, White · 142 mm	$179.00	Ships in 2-3 weeks	View
LS-BKL-1549	Red, Green, Blue, White · 72 mm	$209.00	Ships in 2-3 weeks	View
LS-BKL-1553	Red, Green, Blue, White · 112 mm	$259.00	Ships in 2-3 weeks	View
LS-BKL-1554	24V · 14W	$359.00	Ships in 2-3 weeks	View
LS-BKL-1551	Red, Green, Blue, White · 42 mm	$559.00	Ships in 2-3 weeks	View
LS-BKL-1555	Red, Green, Blue, White · 150 mm	$609.00	Ships in 2-3 weeks	View
