Representative photo of this series
Backlights
LED flat backlight (LS-BKL-1530)
Model LS-BKL-1530
- ColourWhite
- TypeStandard
- Size410mm x 410mm (working area)
- Current (<A)2
$1,149.00
Ships in 2-3 weeks
4.65 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Uniform, low heat illumination, widely used in microscopes; lighting area from 60*60 mm to 410*410 mm; high density and high brightness LED array.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1530 |
|---|---|
| Description | Back Light |
Light
| Colour | White |
|---|
Electrical
| Current (<A) | 2 |
|---|---|
| Power (<W) | 36 |
Mechanical
| Size | 410mm x 410mm (working area) |
|---|---|

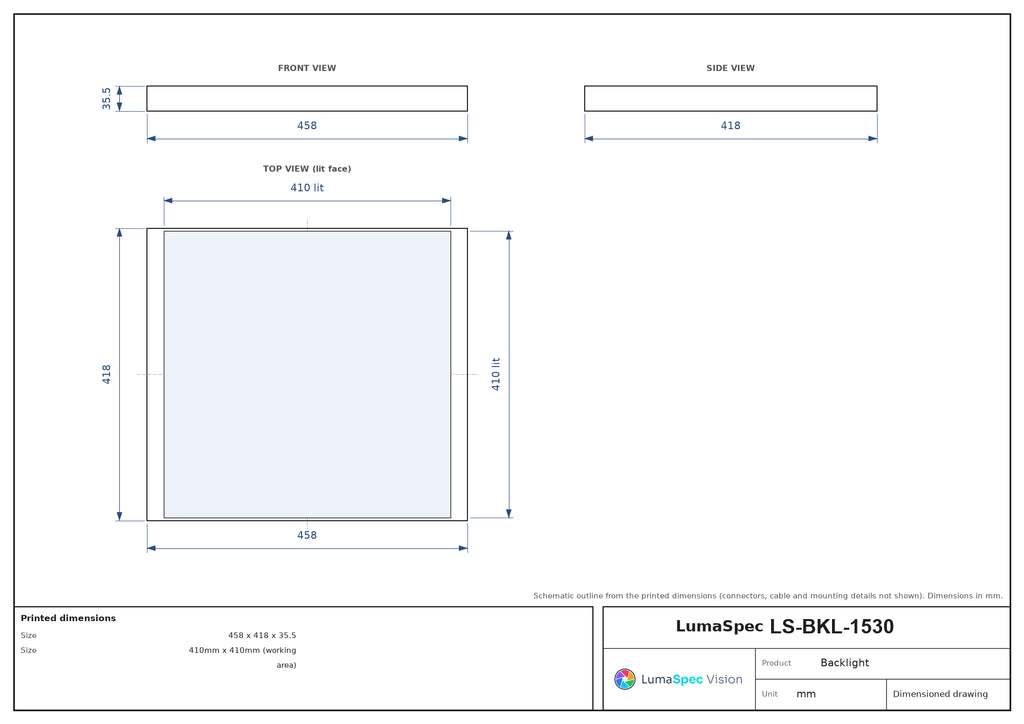

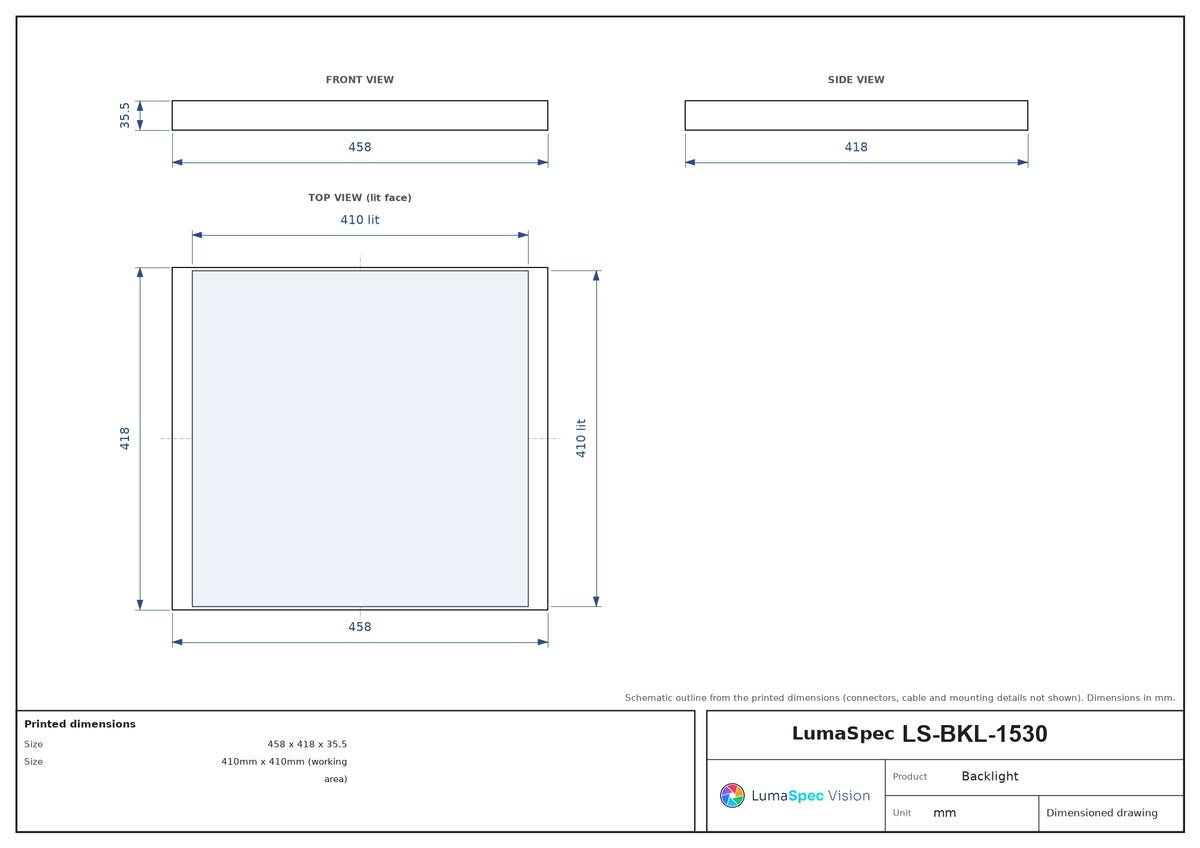

| Size (mm) | 458 x 418 x 35.5 |
| Shipping weight | 4.65 kg |
Other models in the LED flat backlight (LS-BKL-S136) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1528 | 60 x 60 mm | $219.00 | Ships in 2-3 weeks | View |
| LS-BKL-1529 | 170 x 130 mm | $389.00 | Ships in 2-3 weeks | View |
