Representative photo of this series
Backlights
60 x 60 mm LED flat backlight (LS-BKL-1528)
Model LS-BKL-1528
- ColourWhite
- TypeStandard
- Voltage24 V
- Size60mm x 60mm (working area)
$219.00
Ships in 2-3 weeks
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Uniform, low heat illumination, widely used in microscopes; lighting area from 60*60 mm to 410*410 mm; high density and high brightness LED array.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-1528 |
|---|---|
| Description | Back Light |
| Working area (mm*mm) | 60*60 |
Light
| Colour | White |
|---|
Environment and compliance
| Operating temperature | 0~40°C |
|---|---|
| Storage temperature | -20~60°C |
Electrical
| Current (<A) | 0.23 |
|---|---|
| Power (<W) | 5.5 |
| Supply voltage (derived) | 24 V DC, derived from its rated 5.5 W at 0.23 A |
Mechanical
| Size | 60mm x 60mm (working area) |
|---|---|

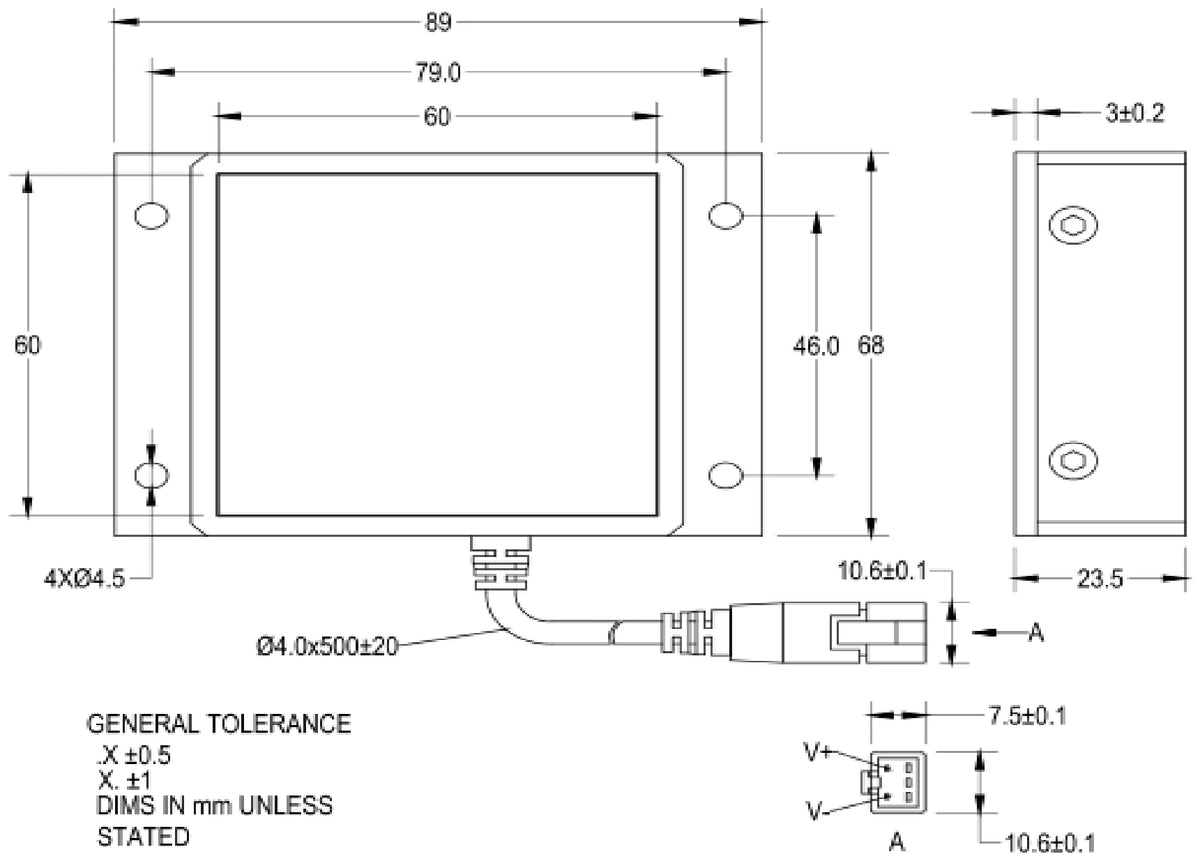

| Size (mm) | 89 x 68 x 23.5 |
| Shipping weight | 0.35 kg |
Other models in the LED flat backlight (LS-BKL-S136) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-1529 | 170 x 130 mm | $389.00 | Ships in 2-3 weeks | View |
| LS-BKL-1530 | White · Standard | $1,149.00 | Ships in 2-3 weeks | View |
