Backlights

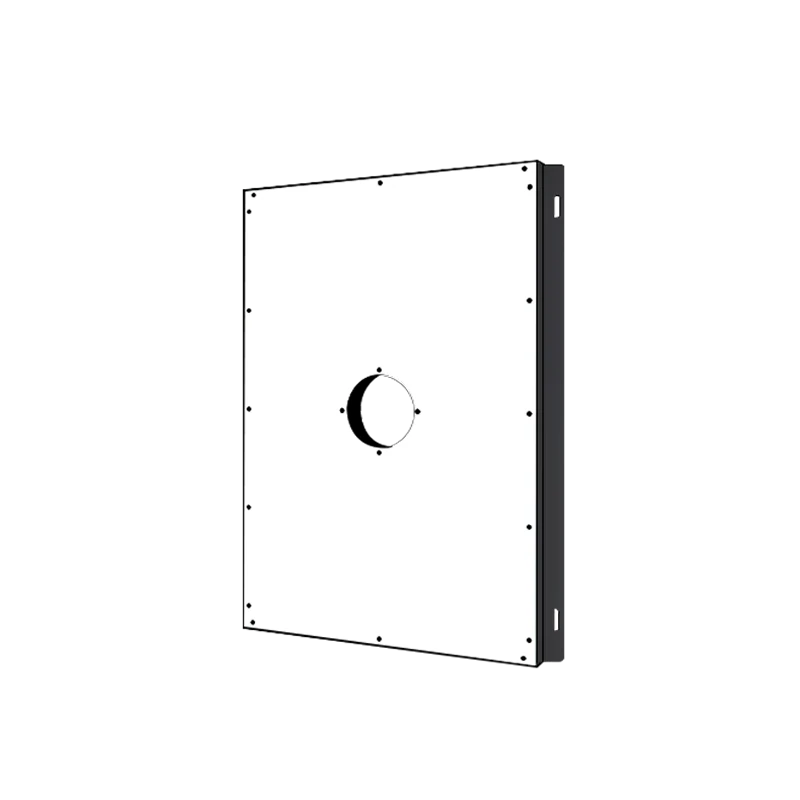

1000 x 1000 mm Hole backlight (LS-BKL-0905)

Model LS-BKL-0905

ColourRed, Blue, White
Voltage24 V
TypeWith centre hole
ConnectorWS20 4-pin

$5,579.00

Ships in 2-3 weeks

23.1 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Hole backlight (LS-BKL-S91) with SMD LEDs, luminous sizes 150 x 150 up to 1000 x 1000 mm; SM3, 4-pin WS16 or 4-pin WS20 aviation interface depending on size.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-0905
M3 nut slot	√
Category	Hole Backlight
Terminal Plug	Four-core WS20 aviation Plug
Cooling	Natural air cooling
Electrical insulation capacity	DC500V Insulation resistance>20 megohms
Pressure Resistance Requirements	AC1000V 10mA/5S
Flammability Rating	IEC60707
Value-added Services	One year free technical support

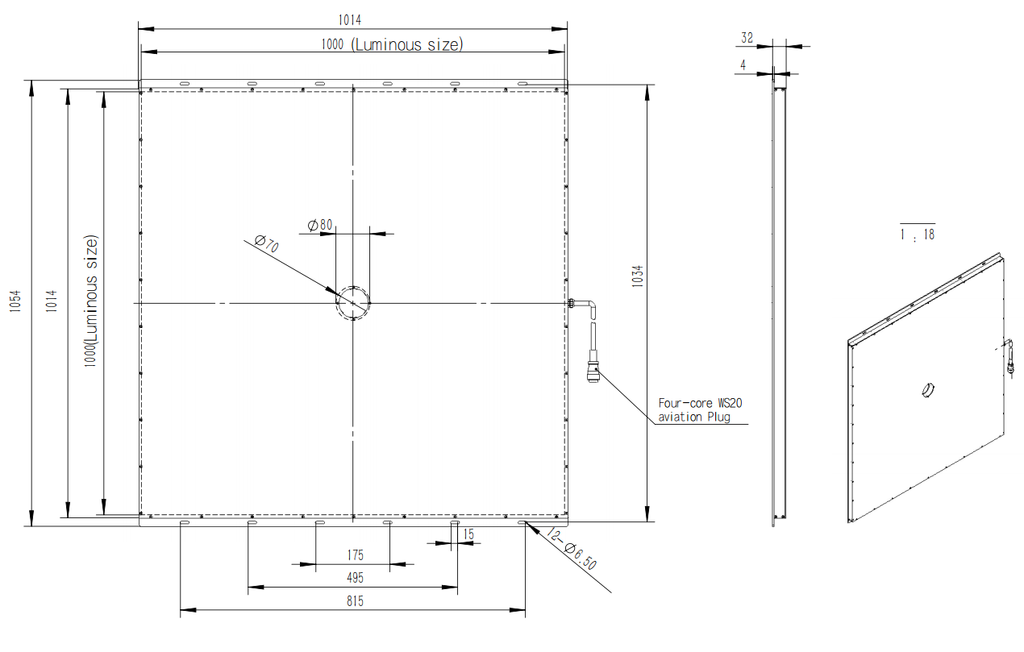

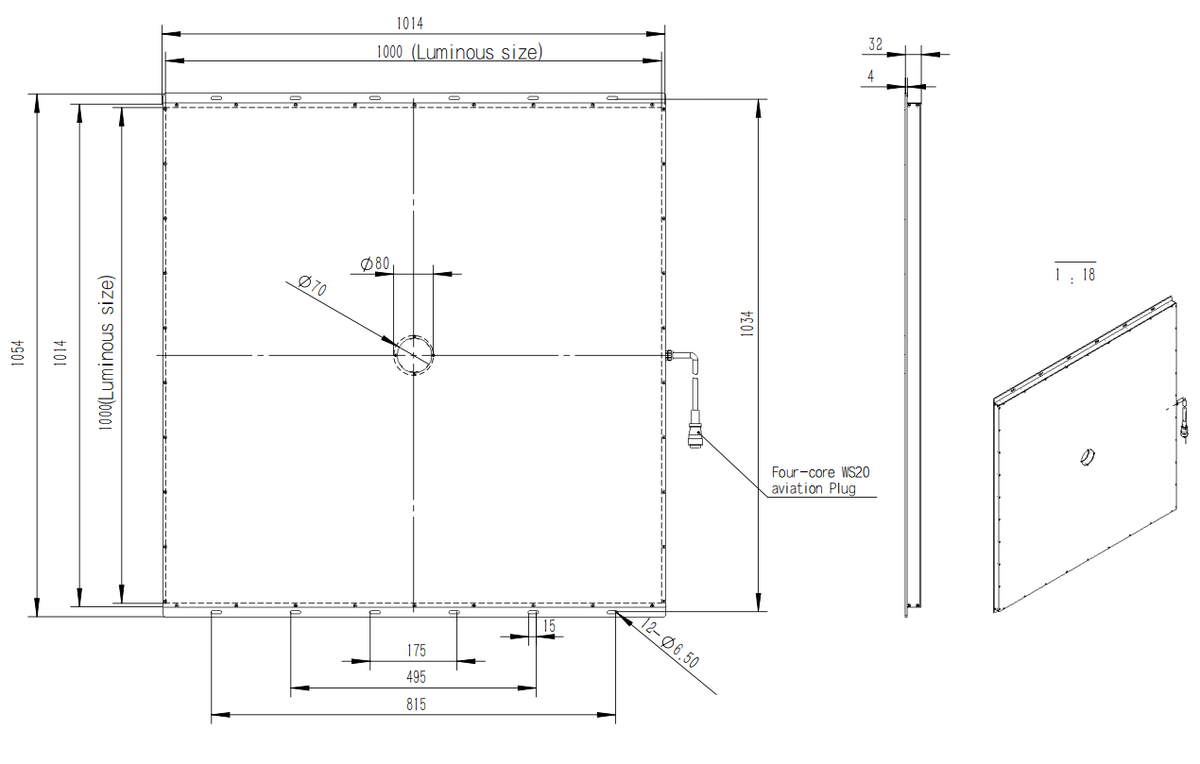

Long (mm)	1014
Wide (mm)	1054
High (mm)	32

Interfaces and I/O

Interface	4-pin WS20 aviation interface
Cable length	2m
Connector Definition	1:positive(+)red; 2:leave empty; 3:negative(-)black.
Mating cable (optional)	1.Light source extension cable 2.Connector adapter cable

Light

LED type	SMD
Luminous size (mm)	1000*1000
Color	red/white/blue/green
Wavelength	red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm
Color temperature	red: —; white: 6000-6500K; blue: —; green: —
Brightness Controller (optional)	1.Analog Controller 2.Digital Controller

Environment and compliance

Operating Temperature and Humidity	Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing)
Lifespan	Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value

Electrical

Power tolerance	actual product power within ±10% of the table is the normal range
Voltage (V)	24
Power red (W)	343.9
Power blue/white (W)	401.2

Mechanical

Shell material	Aluminum Alloy (Oxidative blackened surface)
Shell Hardness Parameters	Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g
Shipping weight	23.10 kg

Downloads

Datasheet (PDF)LS-BKL-0905 · 565 KB

Features

Backlight with a centre hole (K suffix in the model; drawing of LS-BKL-0691 shows a dia. 40 hole)
Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
Interface: SM3 (1.3 pin) up to 400 x 300; 4-pin WS16 aviation interface 400 x 400 to 600 x 400; 4-pin WS20 aviation interface 600 x 600 to 1000 x 1000
Luminous size:150mm*150mm.Hole diameter:50mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:50000 hours for red light and 30000 hours for white light.
Suitable for large area inspection such as large volume object measurement, robotic arm grasping illumination, contour detection and transparent object impurity detection.

Applications

Measurement of the four dimensions of the object
Edge breakage detection
Transparent object impurity detection
Phone case edge detection
Sole contour detection
