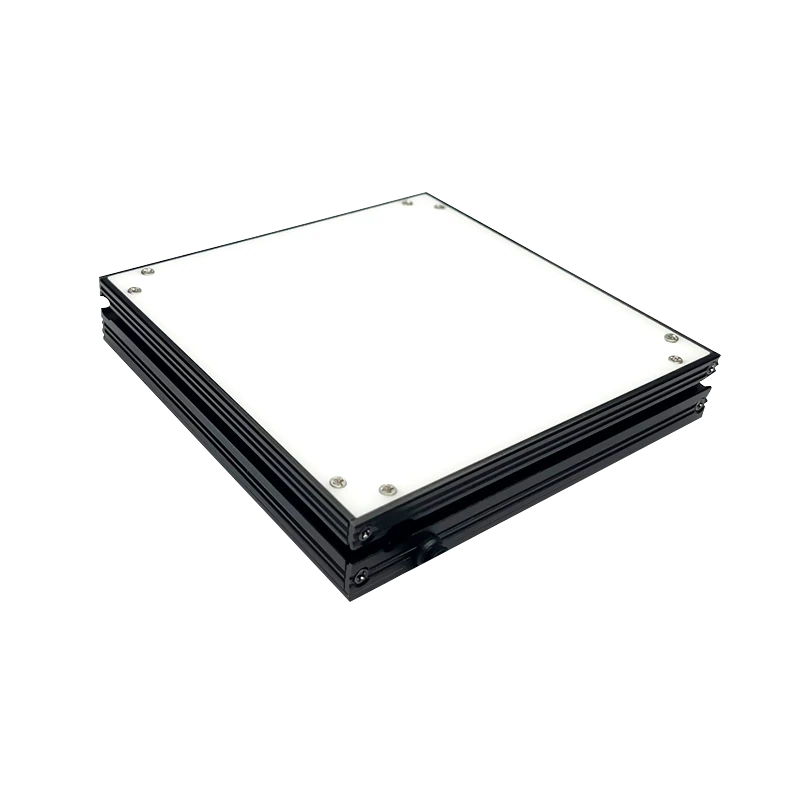

50 x 50 mm High power backlight, 64 x 64 x 20 mm (LS-BKL-0644)

Model LS-BKL-0644-R

ColourRed, Blue, White
Voltage24 V
TypeHigh power / strobe
Connector3-pin flat

$209.00

Ships in 2-3 weeks

0.25 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

High power backlight consists of uniformly distributed LED light-emitting units. Support customized color, wavelength, luminous size, etc.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-0644
M3 nut slot	√
Category	High power backlight
Terminal Plug	Flat head 3PIN2 pin
Cooling	Naturalair cooling
Electrical insulation capacity	DC500V Insulation resistance>20 megohms
Pressure Resistance Requirements	AC1000 V10mA/5S
Flammability Rating	IEC60707
Value-added Services	One year free technical support

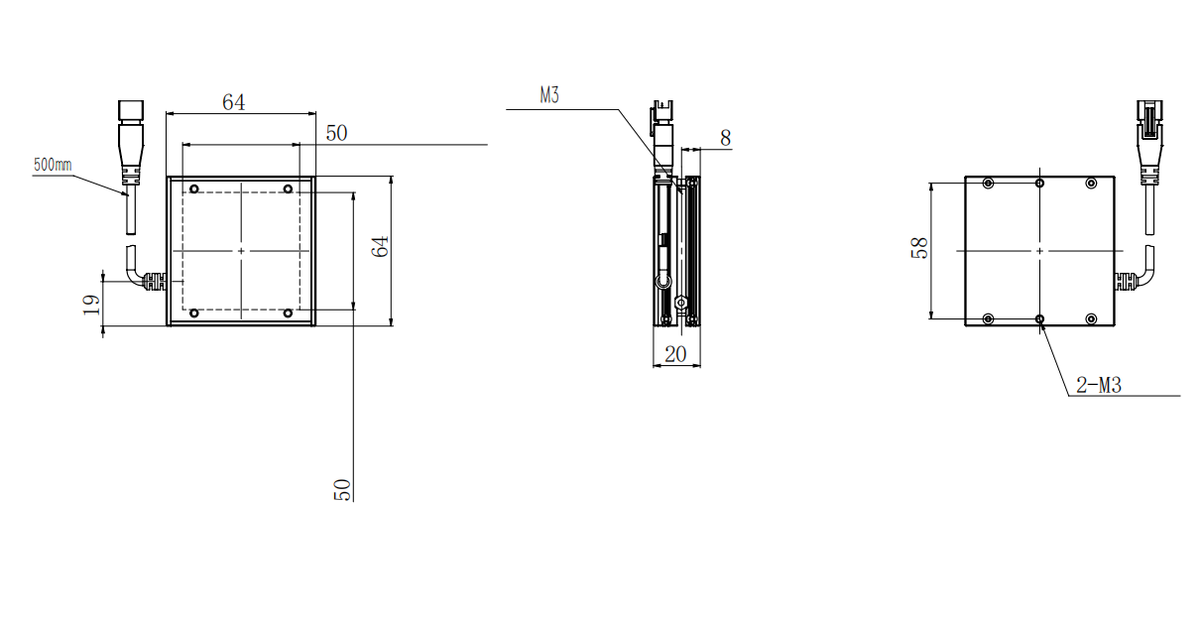

Long (mm)	64
Wide (mm)	64
High (mm)	20
Remarks	The luminous size can be multiplied individually: 10050, 12060, 14070, 16080, 200100, 240120

Interfaces and I/O

Luminous size expansion	The luminous size can be multiplied ndividually: 10050,12060,14070, 16080,200100,240120.
Cable length	0.5m
Connector Definition	1:positive(+)red; 2:leave empty; 3:negative(-)black.
Mating cable (optional)	1.Light source extension cable 2.Connector adapter cable

Light

LED type	SMD
Luminous size (mm)	50x50
Color	red/white/blue/green
Wavelength	red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm
Color temperature	red: —; white: 6000-6500K; blue: —; green: —
Brightness Controller (optional)	1.Analog Controller 2.Digital Controller

Environment and compliance

Operating Temperature and Humidity	Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing)
Lifespan	Under our specified conditions of use,350000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value

Electrical

Power tolerance	actual product power within ±10% of the table is the normal range
Voltage (V)	24
Power red (W)	2.9
Power blue/white (W)	2.9

Mechanical

Installation method	M3 nut slot and bottom side installation
Bottom side installation	√
Shell material	Aluminum Alloy (Oxidative blackened surface)
Shell Hardness Parameters	Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g
Shipping weight	0.25 kg

Downloads

Datasheet (PDF)LS-BKL-0644 · 404 KB

Features

High power backlight with SMD LEDs
Installation by M3 nut slot or from the bottom side
Three-colour RGB light source, size and height, wavelength/colour temperature, mounting and input wire length customization
Luminous size can be made individually: 10050, 12060, 14070, 16080, 200100, 240120 (remark for the small sizes)
Sizes 150 x 150 and up marked 'Large size'
Luminous size: 50mm*50mm.
Brightness level 255, connected to the controller can be adjusted.
Life span:30000 hours for red light and 30000 hours for white light.
Suitable for high-precision detection such as contour detection, Edge breakage detection and Liquid height detection, etc.

Applications

Contour dimension measurement
Edge breakage detection
Transparent object impurity detection
Oral liquid height detection
Contour detection (white background with contrasting black edges)

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Other models in the High power backlight (LS-BKL-S75) series

See all 18 models
