400 x 400 mm Collimated LED Backlight (LS-BKL-0629)

Model LS-BKL-0629

ColourRed, Green, Blue, White
Emitting area400x400 mm
Size414x414x26 mm
Voltage24 V
Power126.7 W

$1,339.00

Ships in 2-3 weeks

4.05 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

400 x 400 mm Collimated LED Backlight. Collimated bottom-lit backlight in the 2BC-style finned heat-dissipation housing, 23-26 mm thick, with side M3 nut slots usable for installation.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-0629

Interfaces and I/O

Cable length (mm)	500

Light

Emitting area (mm)	400x400
Colours	Red, Green, Blue, White

Electrical

Voltage (V)	24
Power R (W)	88.7
Power W/B/G (W)	126.7

Mechanical

Outer size L x W x H (mm)	414x414x26
Mounting	M3 depth 4 (reverse) on back, qty X per drawing table; M3 nut slots in side profile
Heat sink	Finned heat-dissipation profile
Shipping weight (estimated)	4.05 kg

Photo shows a representative model of this series; see the specifications for this model.

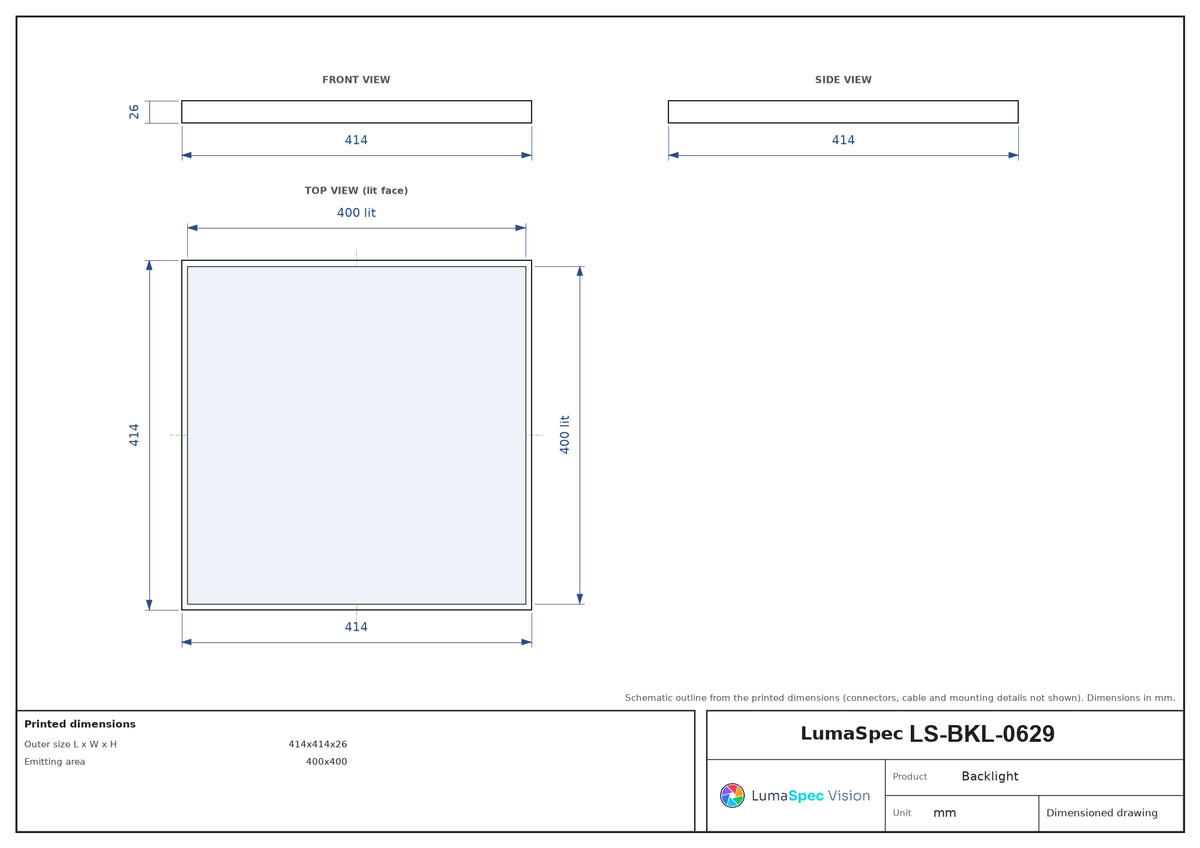

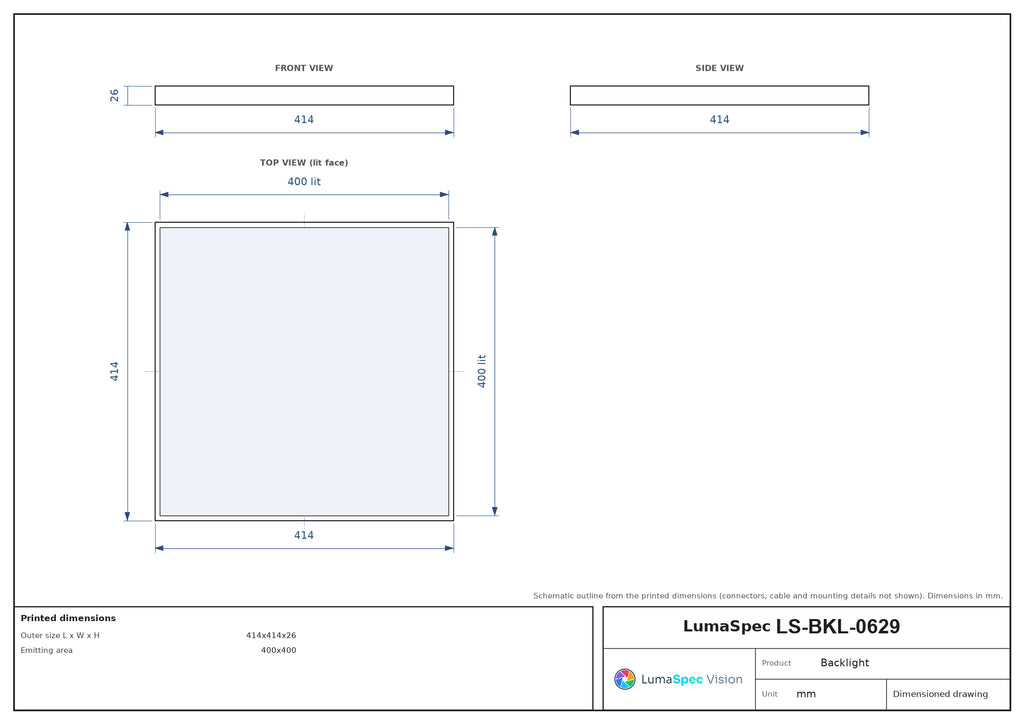

Mounting and drawing data

not listed in drawing table
