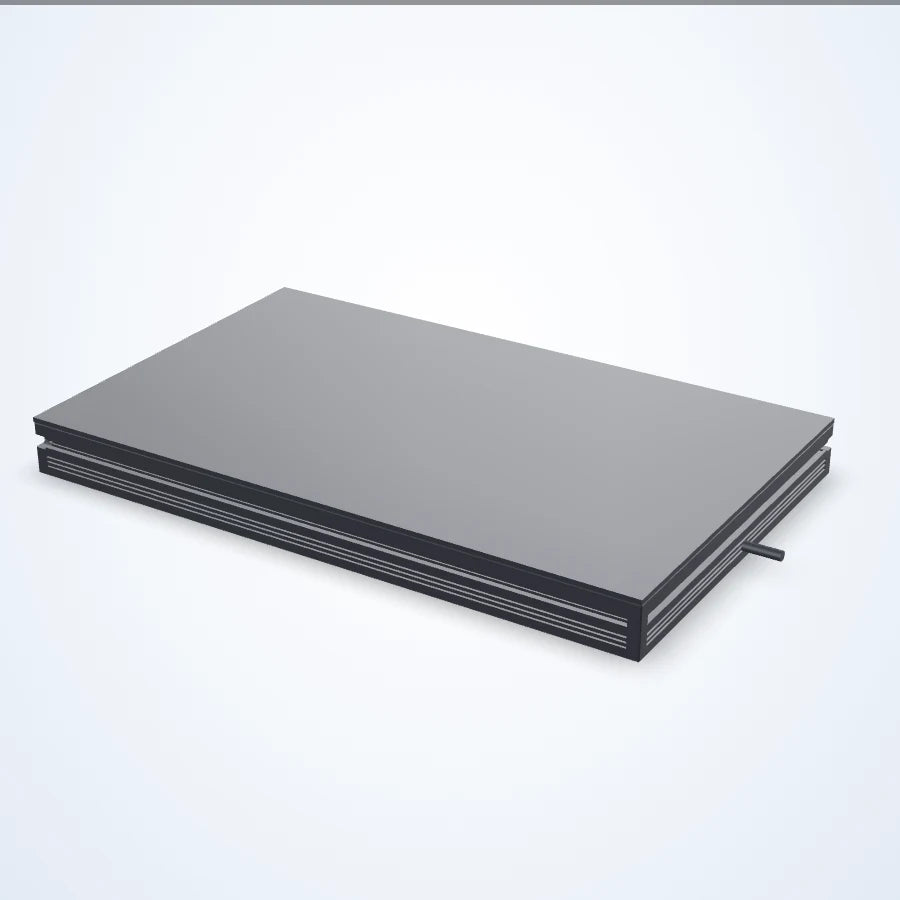

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Backlights

250 x 150 mm Collimated LED Backlight (LS-BKL-0624)

Model LS-BKL-0624

ColourRed, Green, Blue, White
Emitting area250x150 mm
Size264x164x24 mm
Voltage24 V
Power41.5 W

$659.00

Ships in 2-3 weeks

1.25 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

250 x 150 mm Collimated LED Backlight. Collimated bottom-lit backlight in the 2BC-style finned heat-dissipation housing, 23-26 mm thick, with side M3 nut slots usable for installation.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BKL-0624

Interfaces and I/O

Cable length (mm)	500

Light

Emitting area (mm)	250x150
Colours	Red, Green, Blue, White

Electrical

Voltage (V)	24
Power R (W)	27.6
Power W/B/G (W)	41.5

Mechanical

Outer size L x W x H (mm)	264x164x24
Mounting	M3 depth 4 (reverse) on back, qty X per drawing table; M3 nut slots in side profile
Heat sink	Finned heat-dissipation profile
Shipping weight (estimated)	1.25 kg

Mounting and drawing data

not in drawing table (drawing table lists 2BCP-250X250: X=6, C=200, D=257, E=24 instead)

Downloads

Features

Flexible design for width, length, and overall dimensions.
Effectively enhances product edge sharpness and contrast.
High uniformity.

Applications

Metal cylinder contour inspection, glass bottle diameter inspection, ceramic column diameter inspection, screw thread contour inspection.
Transparent packaging box detection
Contour defects
Burrs on gold-plated components
Coil burr detection

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

LS-BKL-0624

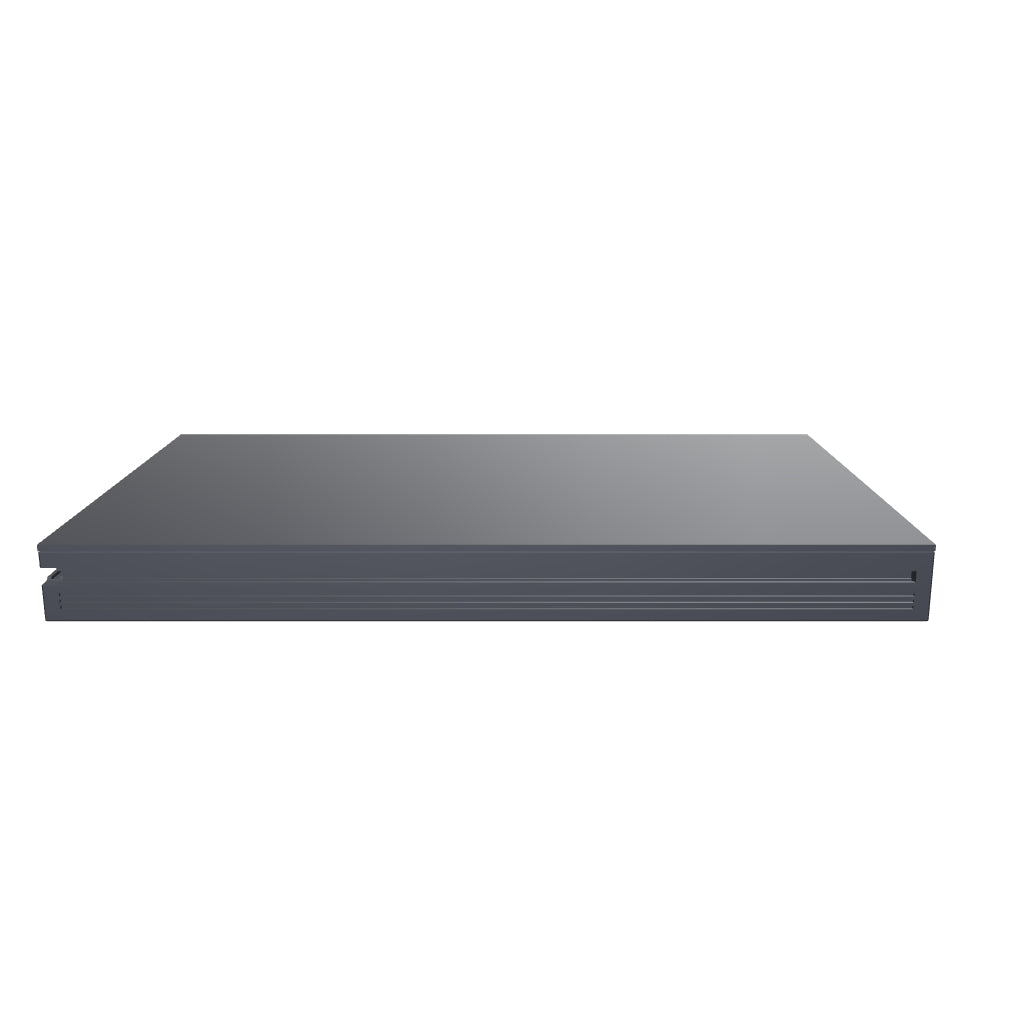

See this component from every angle.

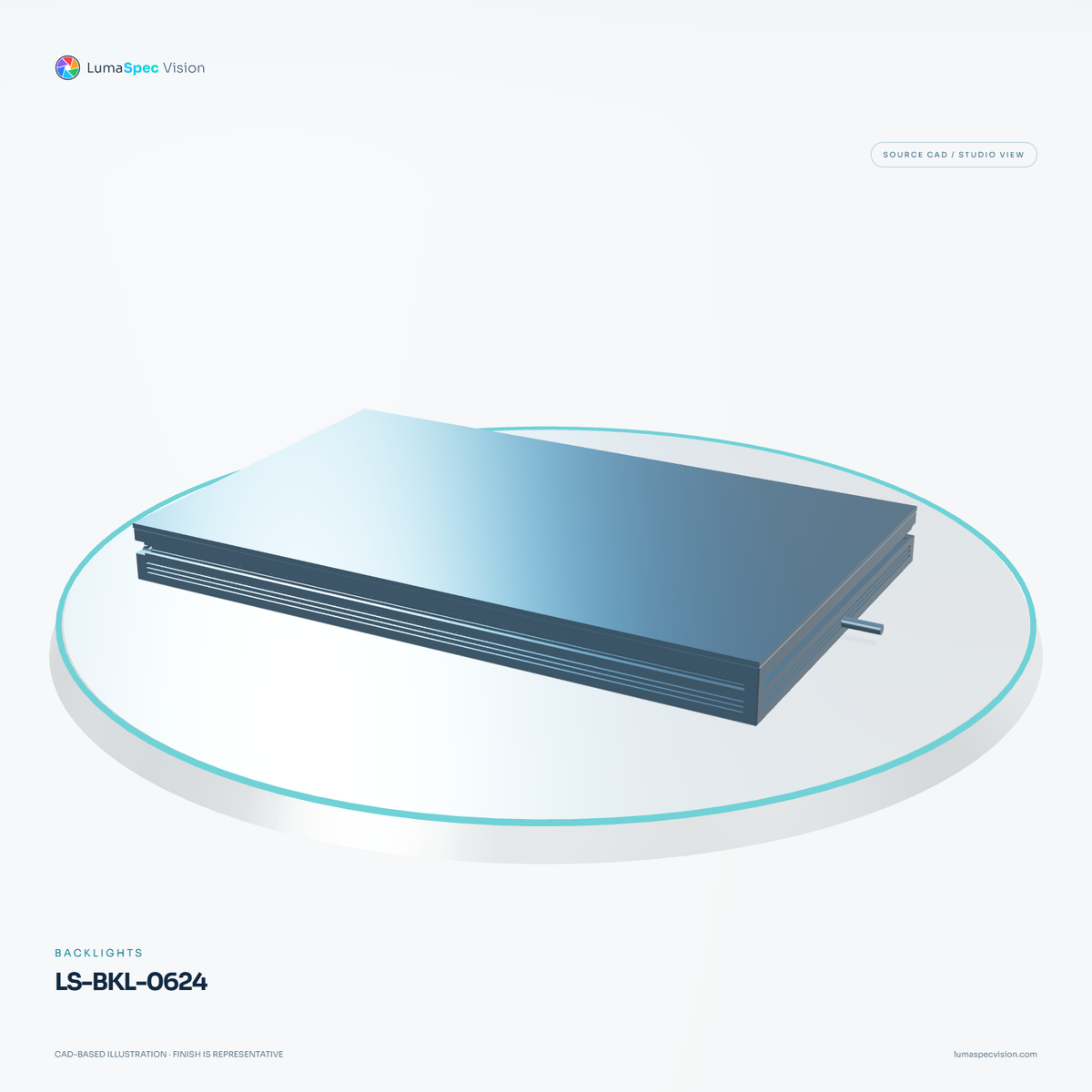

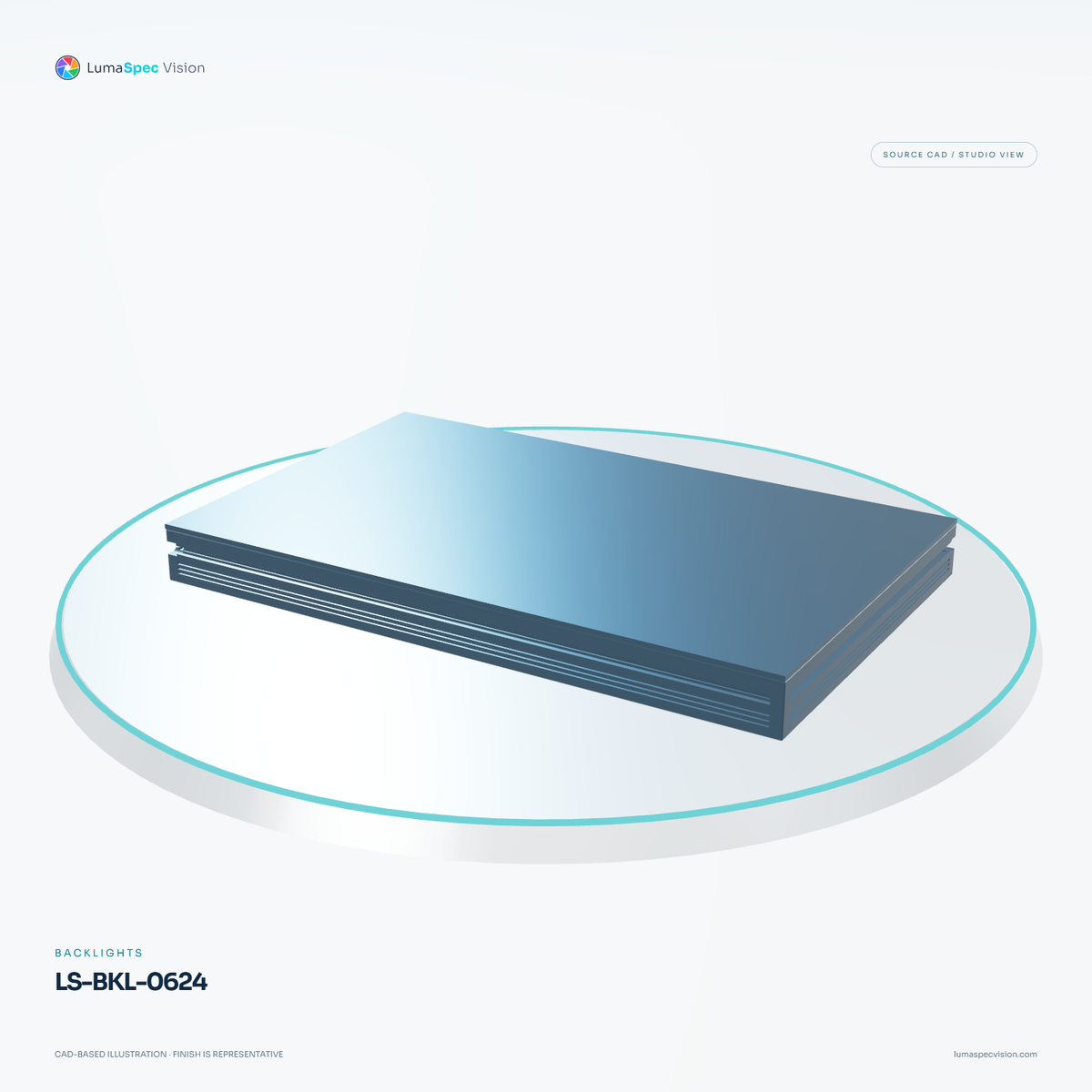

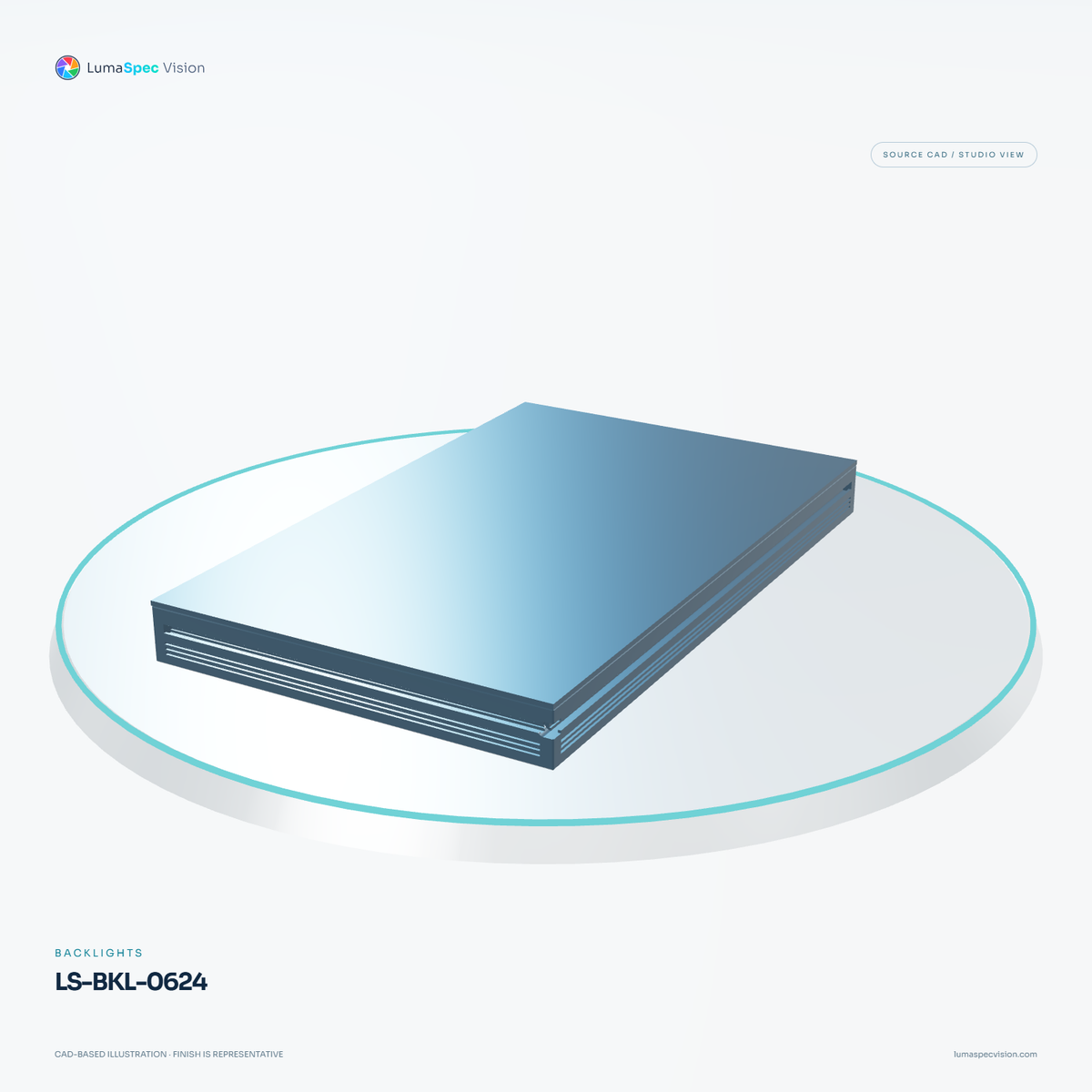

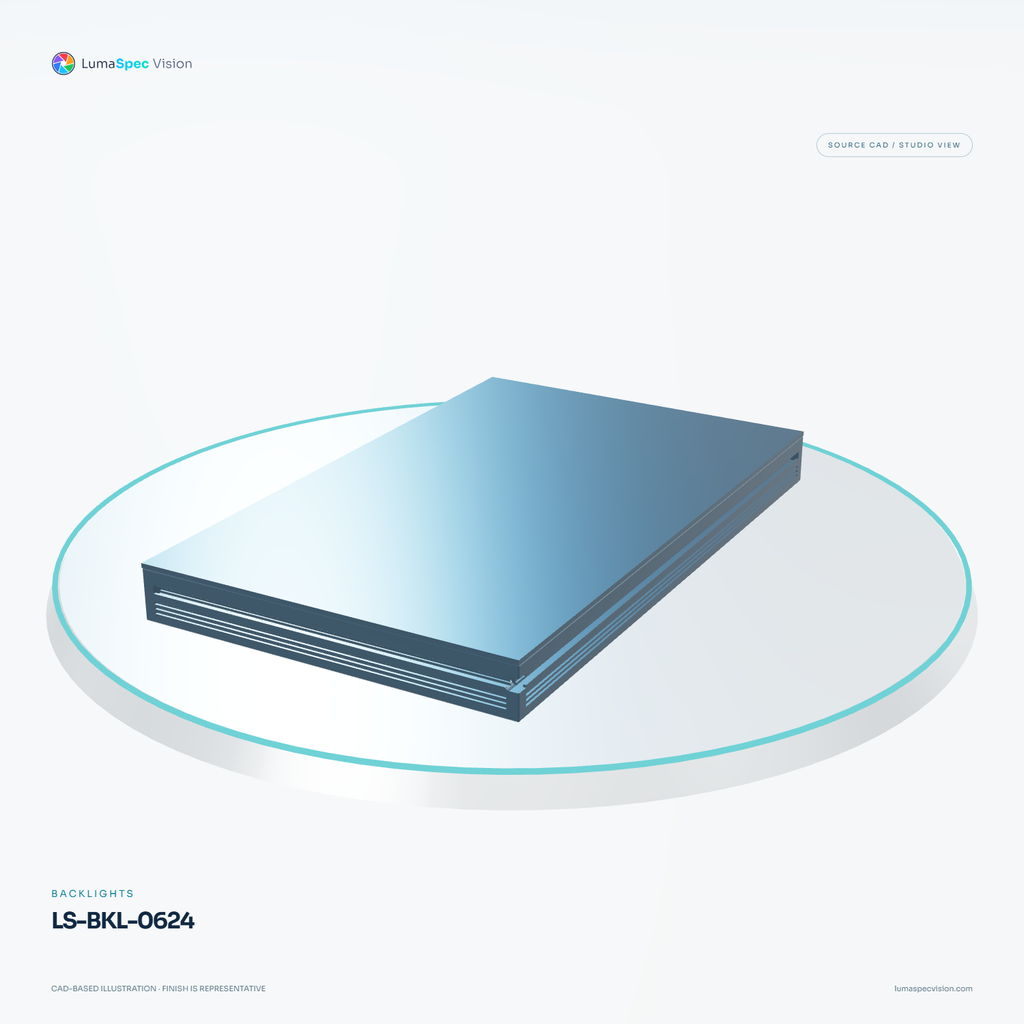

CAD-based illustration; finish is representative.

Explore the visual library

Source CAD

View 1 View 2 View 3

FROM THE PRINTED SPECIFICATIONS

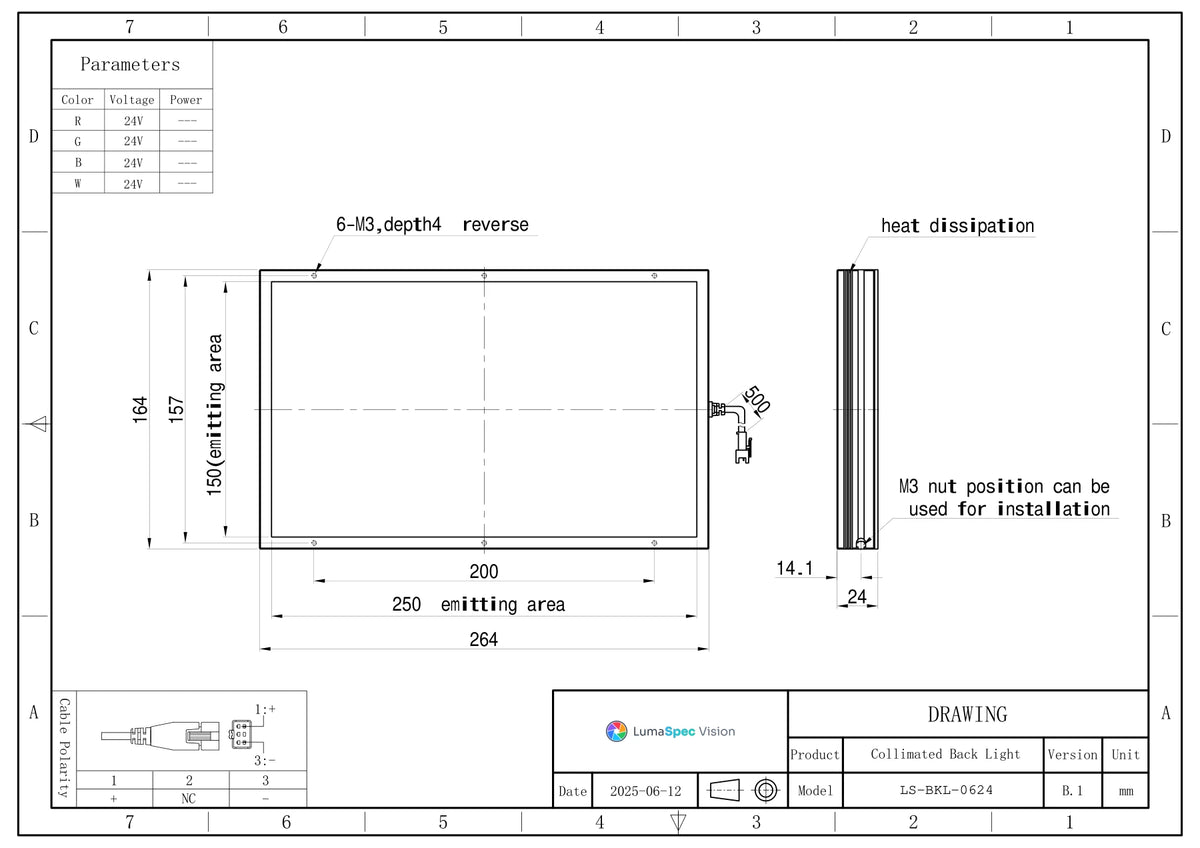

Outer size L x W x H (mm): 264x164x24
Emitting area (mm): 250x150
Voltage (V): 24

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Collimated Bottom Back Light (LS-BKL-S73) series
