Rendered illustration: the actual product may differ in appearance.
Backlights
Backlight, 152.4 x 101.6 mm, driver Internal (LS-BKL-0568)
Model LS-BKL-0568
- ColourBlue
- Voltage24 V DC
- TypeStandard
- Length152.4 mm
$839.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. 24 V DC supply; connection: m12 quick-disconnect.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0568 |
|---|---|
| Driver | Internal |
| Options | Diffuser and cable types on request |
Interfaces and I/O
| Connector | M12 quick-disconnect |
|---|
Light
| Colour | Blue (470nm) |
|---|
Electrical
| Voltage | 24 V DC |
|---|---|
| Strobe | Built-in high-speed strobe |
Mechanical

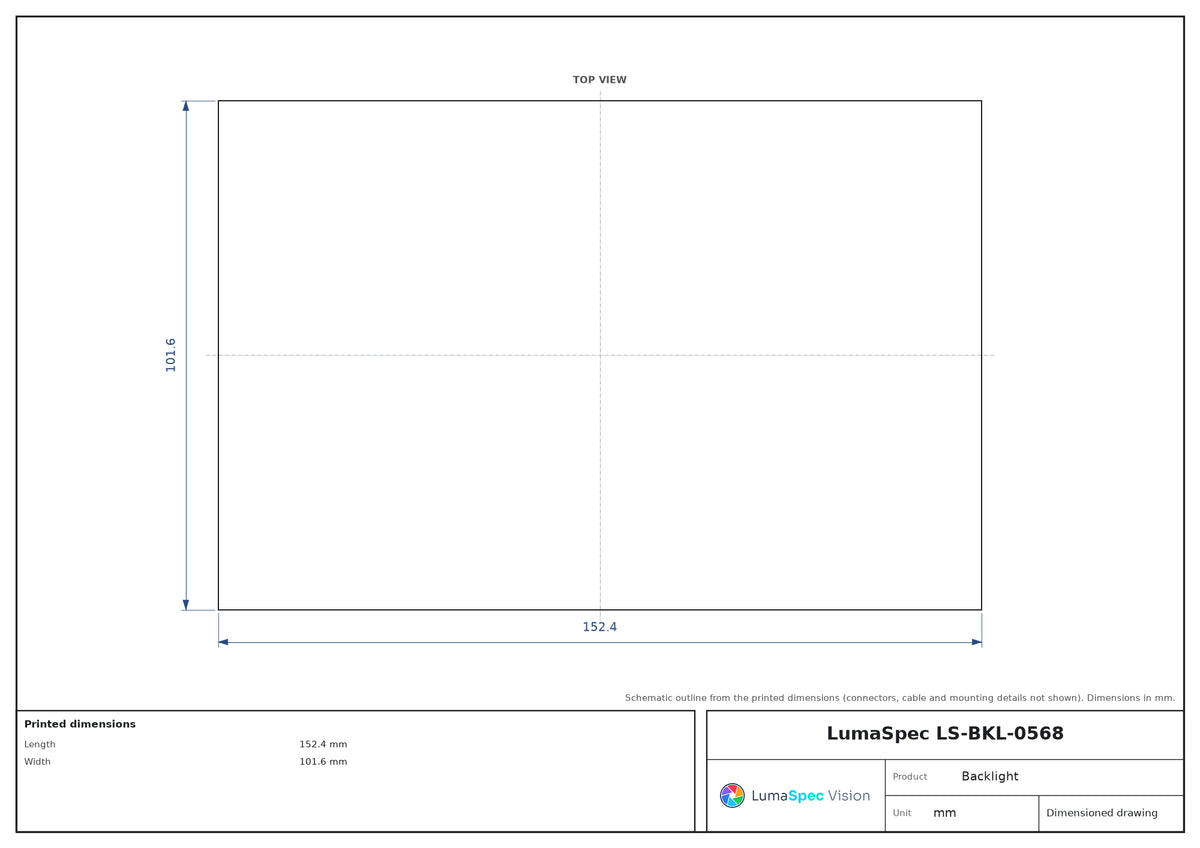

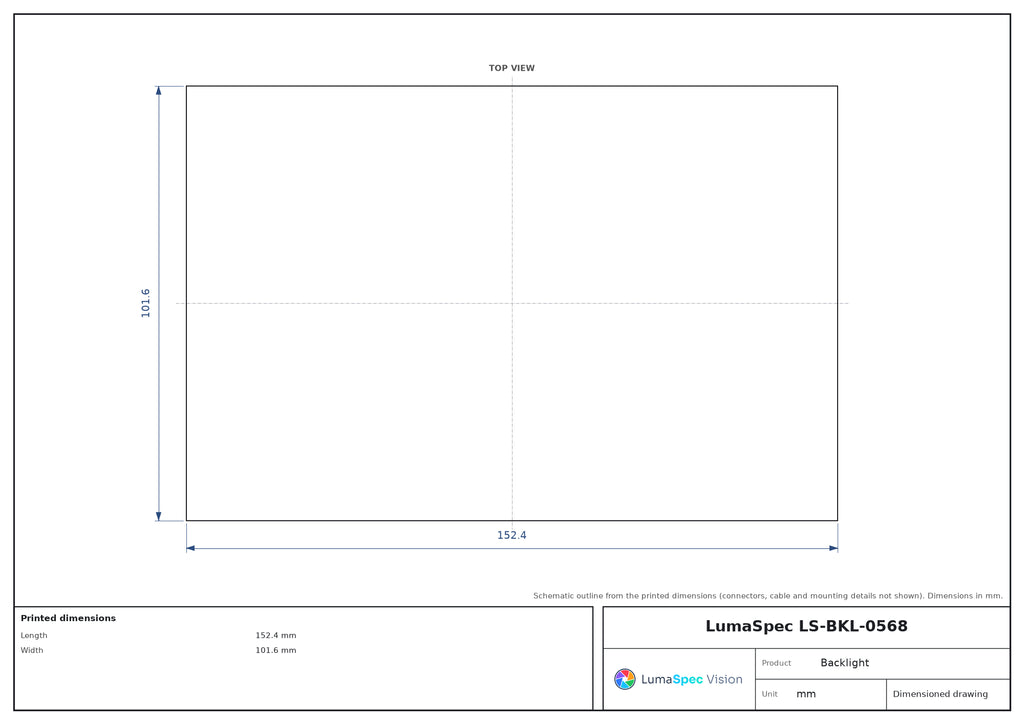

| Length (mm) | 152.4 |
|---|---|
| Width (mm) | 101.6 |
| Nominal size | 4 x 6 in |
