Backlights

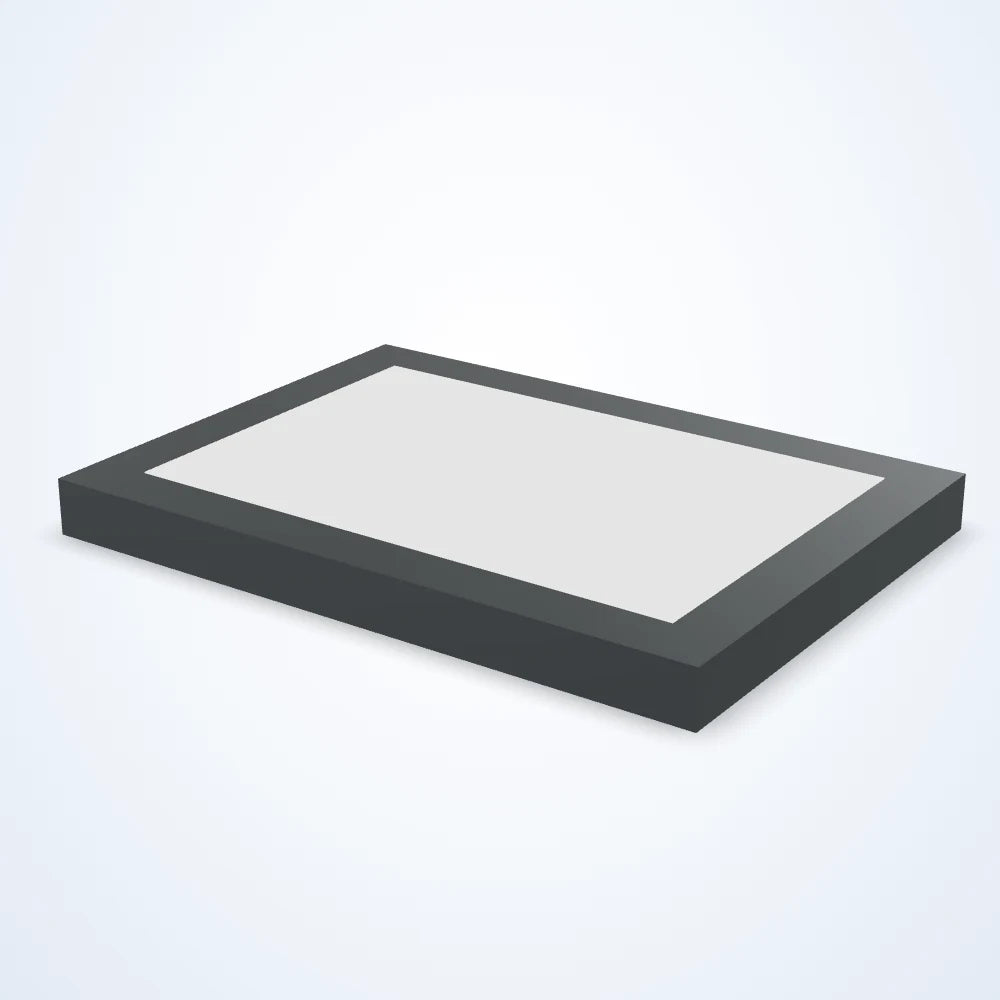

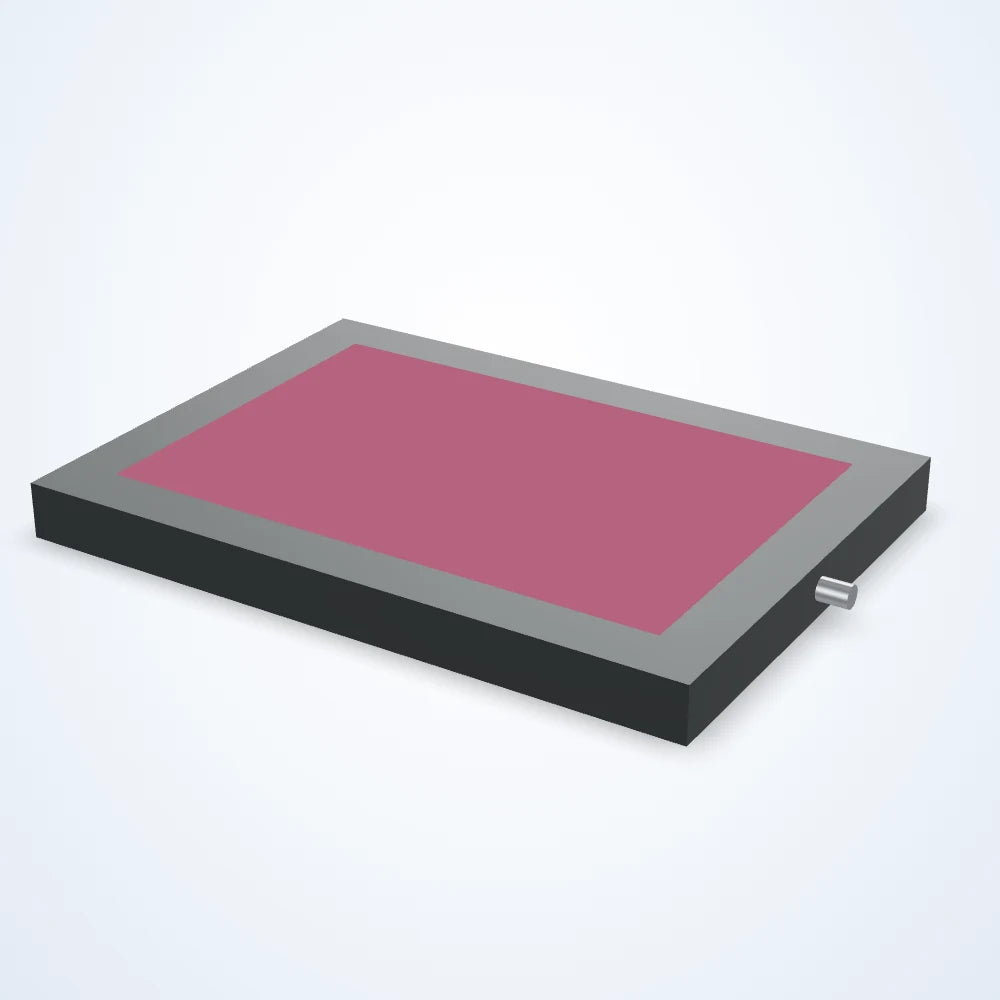

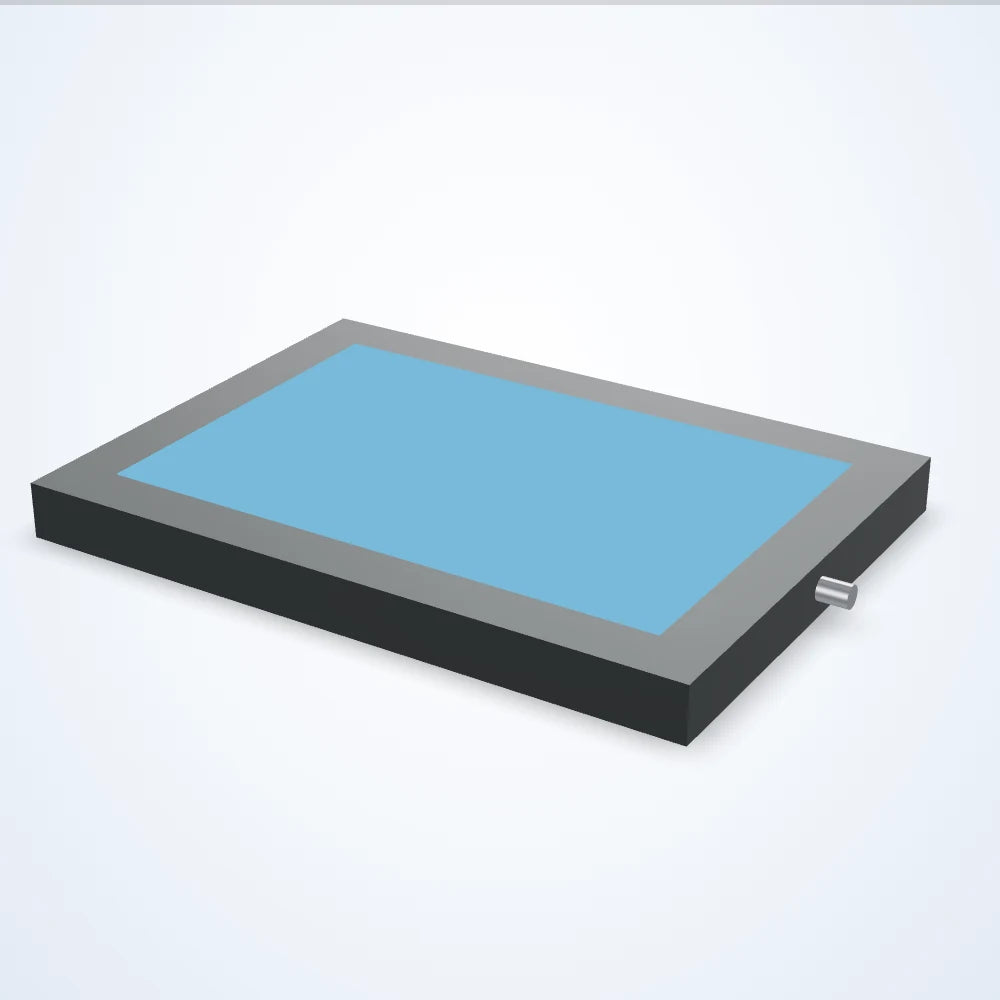

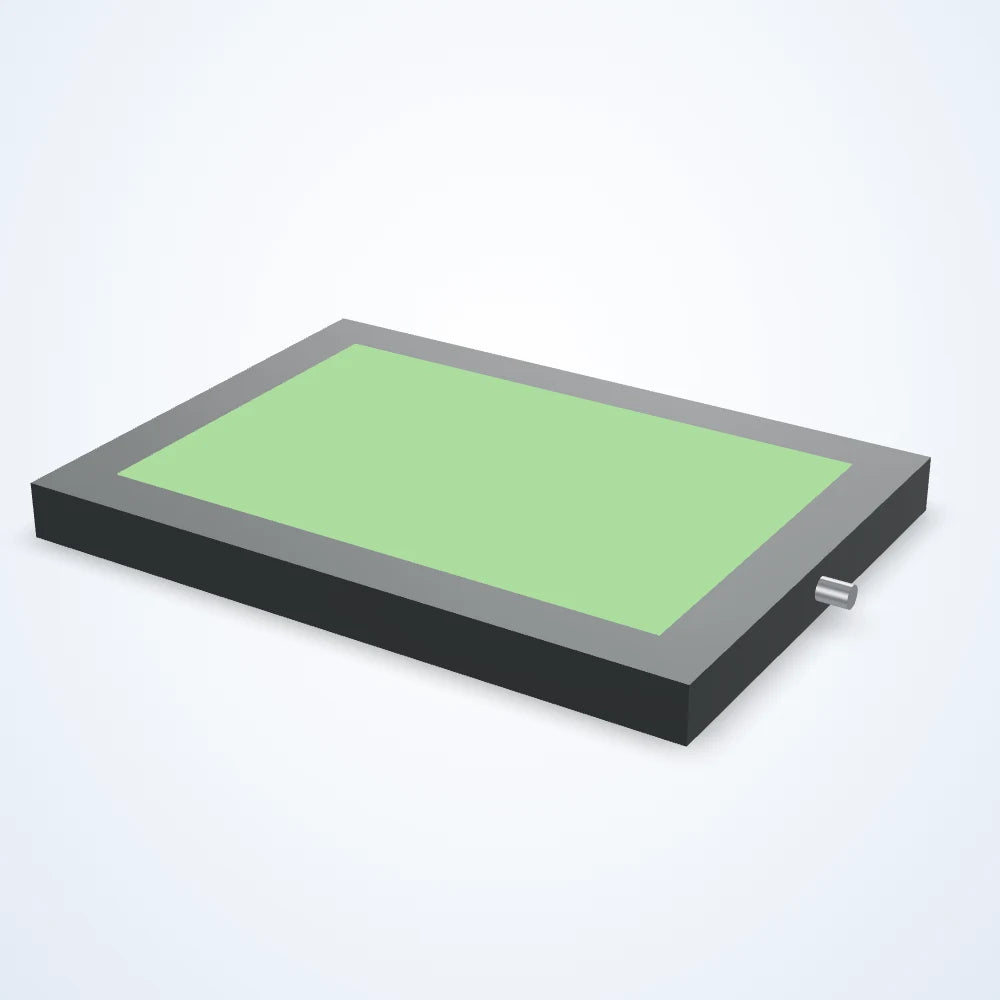

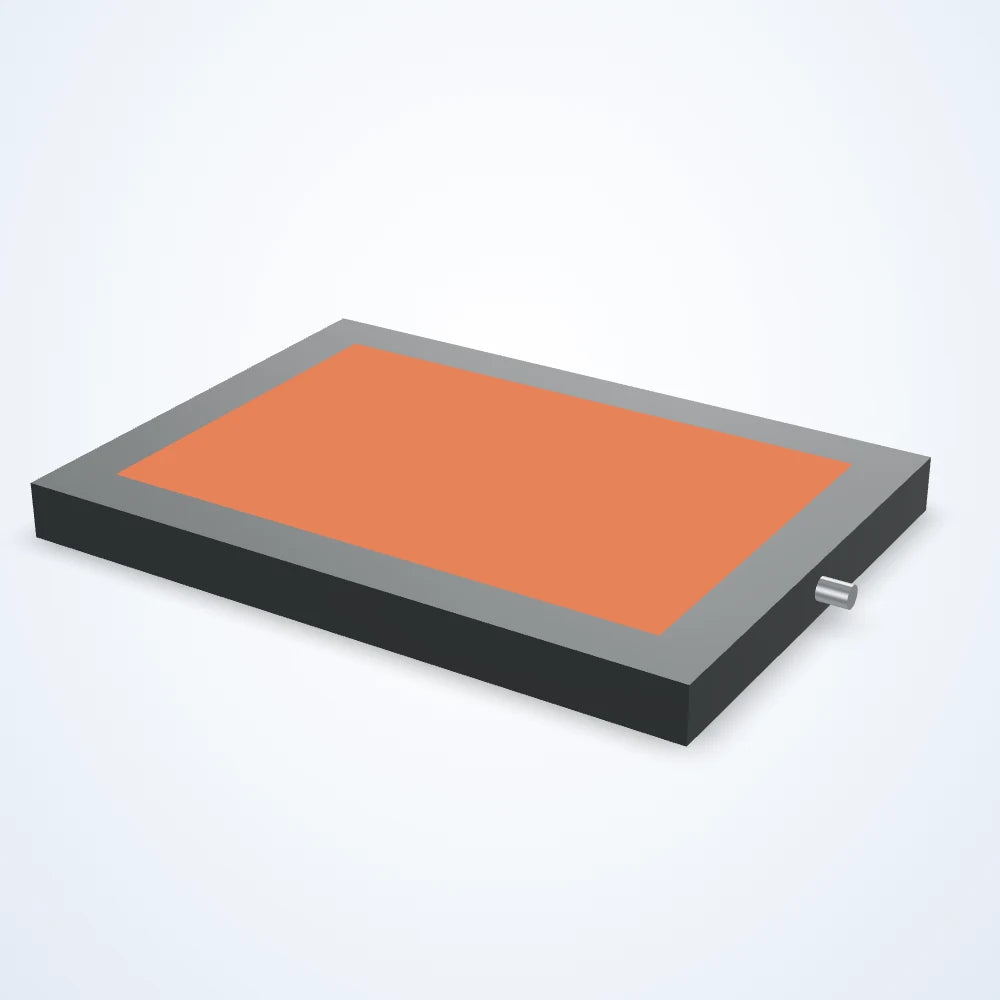

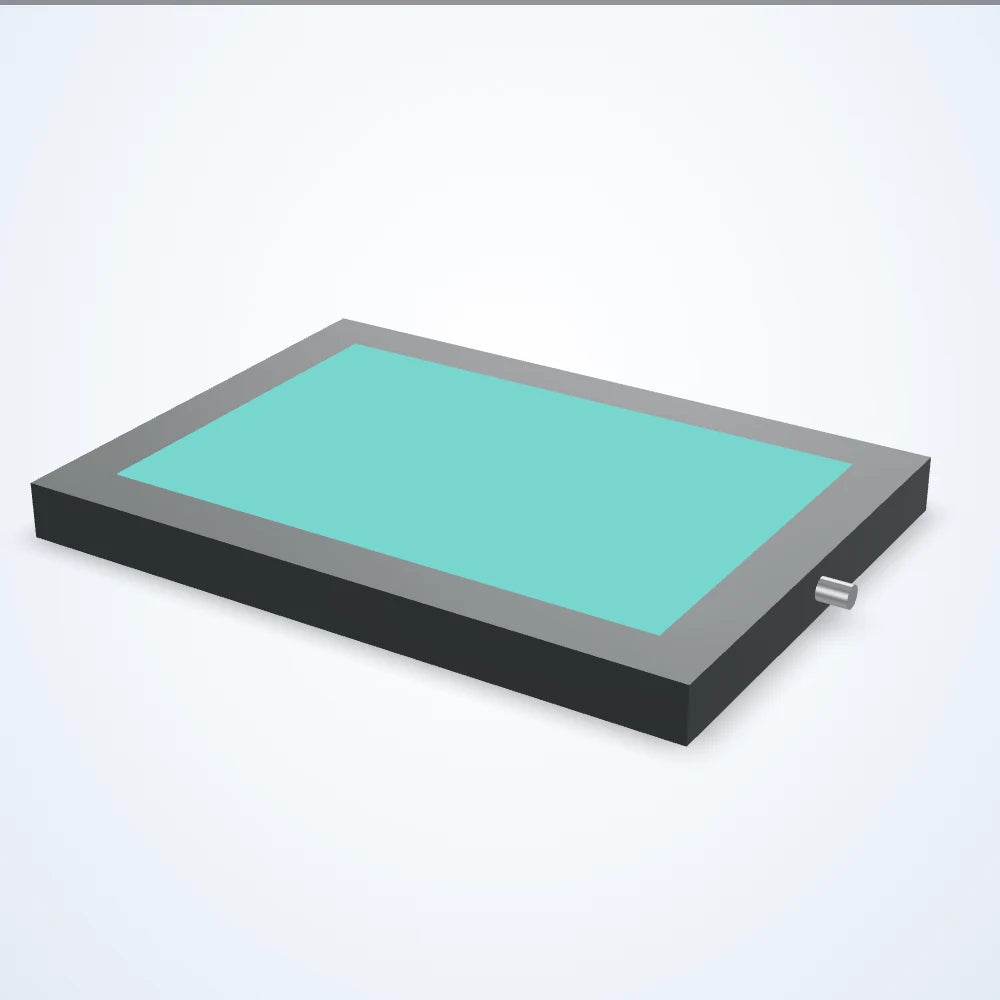

Backlight, 305.5 x 204 mm lit area (LS-BKL-0521)
Model LS-BKL-0521
- ColourWhite, Red, Green, Infrared, Blue
- Voltage24 VDC
- AngleDiffused
- TypeStandard
from $1,419.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 1-2 weeks
Choose a configuration 6 available
Configuration LS-BKL-0521-1 $1,419.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 305.5 x 204 mm; 24 VDC supply; connection: 5 pin m12 male a-coded. Choose colour below (6 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0521 |
|---|---|
| Connection at light | Connectorized |
| Driver included | Included |
| Driver location | Internal |
| Intensity control | Analog Voltage |
| Operating modes | Constant On, Constant On – Dimmable, Strobe, Strobe – Dimmable |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | 5 Pin M12 Male A-Coded |
|---|
Light
| Lens / beam angle | Diffused |
|---|---|
| Diffused | Diffused |
Environment and compliance
| Operating temperature | -10 to 40 °C |
|---|---|
| IP rating | IP50 |
| Storage temperature | -20 to 70 °C |
| Compliance | CE, IEC 62471, RoHS |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | NPN Trigger, PNP Trigger |
| Maximum constant on current (mA) | 1200 |
| Maximum input power constant on (W) | 28.8 |
| Maximum strobe current (mA) | 1200 |
| Maximum strobe duration (ms) | No Limit |
| Maximum strobe duty cycle (%) | 100 |
| Maximum strobe frequency (Hz) | 4000 |
| Maximum strobe input power (W) | 29 |
| Maximum strobe latency (µs) | 10 |
| Minimum strobe duration (µs) | 30 |
| NPN trigger current (mA) | 14 |
| NPN trigger voltage (V) | < 1 VDC |
| PNP trigger current (mA) | 17.6 |
| PNP trigger voltage (V) | 4-24 VDC |
Mechanical

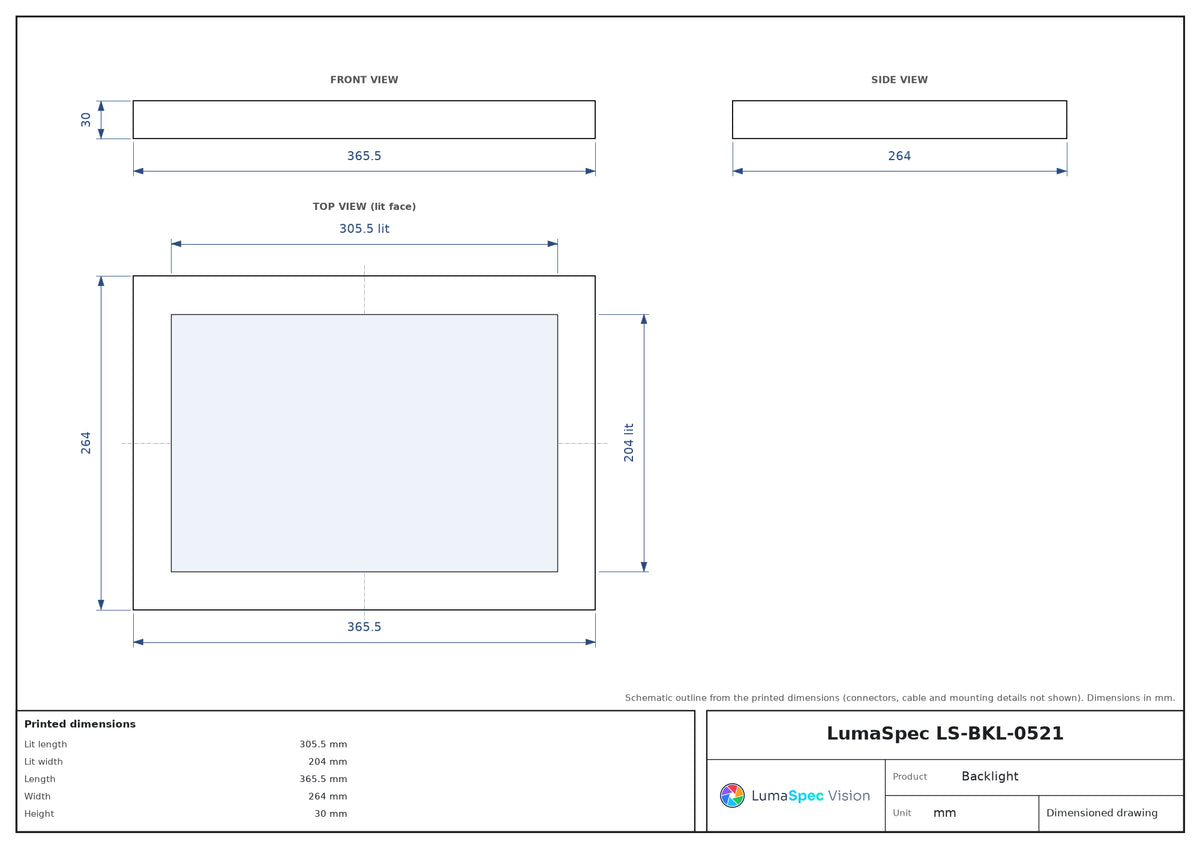

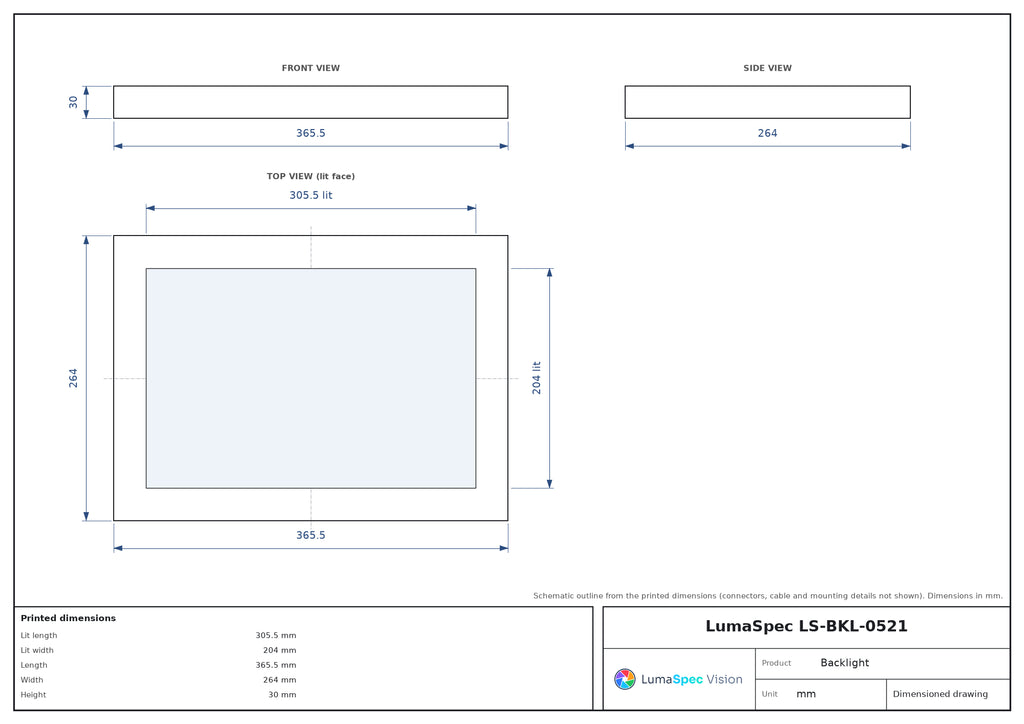

| Lit length (mm) | 305.5 |
|---|---|
| Lit width (mm) | 204 |
| Length (mm) | 365.5 |
| Width (mm) | 264 |
| Height (mm) | 30 |
| Housing | Aluminum |
| Mounting | T-Slot Channels |
Other models in the Backlight series, 5 Pin M12 Male A-Coded, IP50 series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0517 | 153 x 103 mm | $699.00 Quote | Built to order: ships in about 1-2 weeks | View |
| LS-BKL-0518 | 153 x 153 mm | $759.00 Quote | Built to order: ships in about 1-2 weeks | View |
| LS-BKL-0519 | 204 x 204 mm | $1,159.00 Quote | Built to order: ships in about 1-2 weeks | View |
| LS-BKL-0520 | 306 x 153 mm | $1,289.00 Quote | Built to order: ships in about 1-2 weeks | View |
| LS-BKL-0522 | 306 x 306 mm | $1,959.00 Quote | Built to order: ships in about 1-2 weeks | View |
| LS-BKL-0523 | 459 x 459 mm | $3,289.00 Quote | Built to order: ships in about 1-2 weeks | View |
