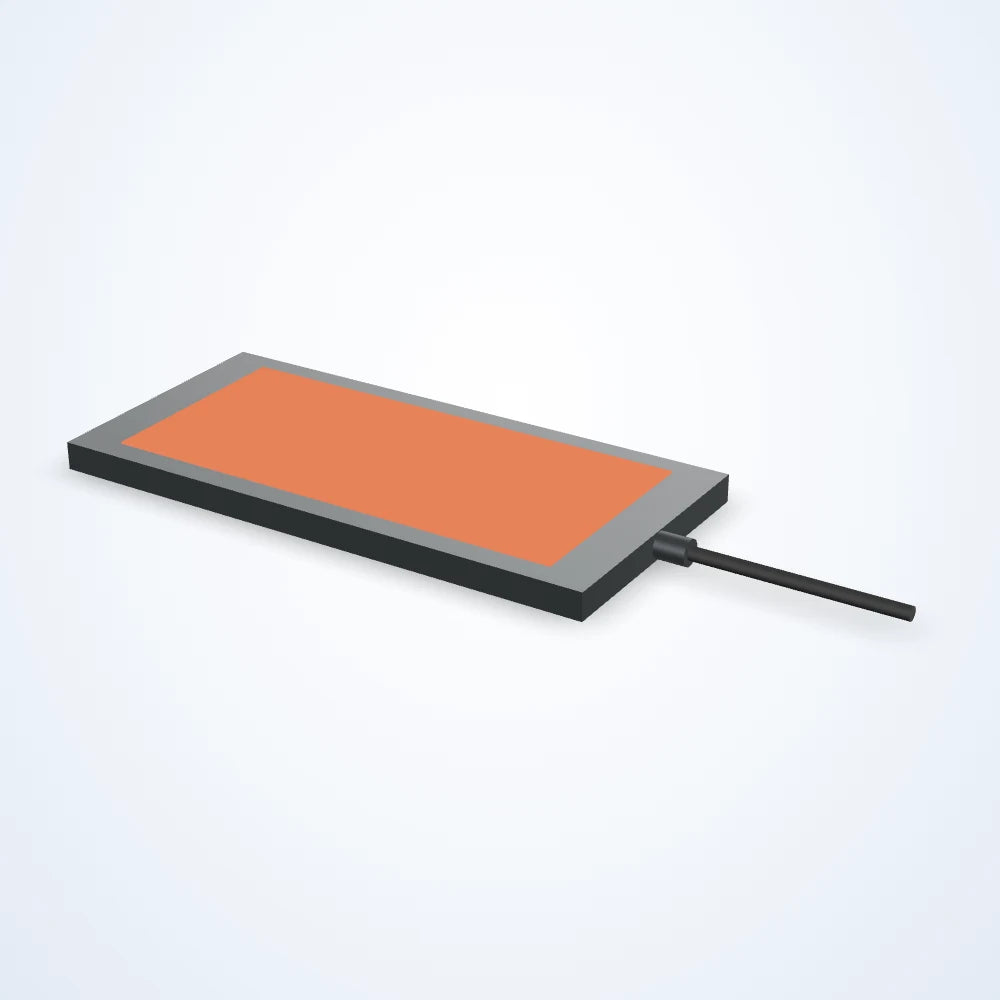

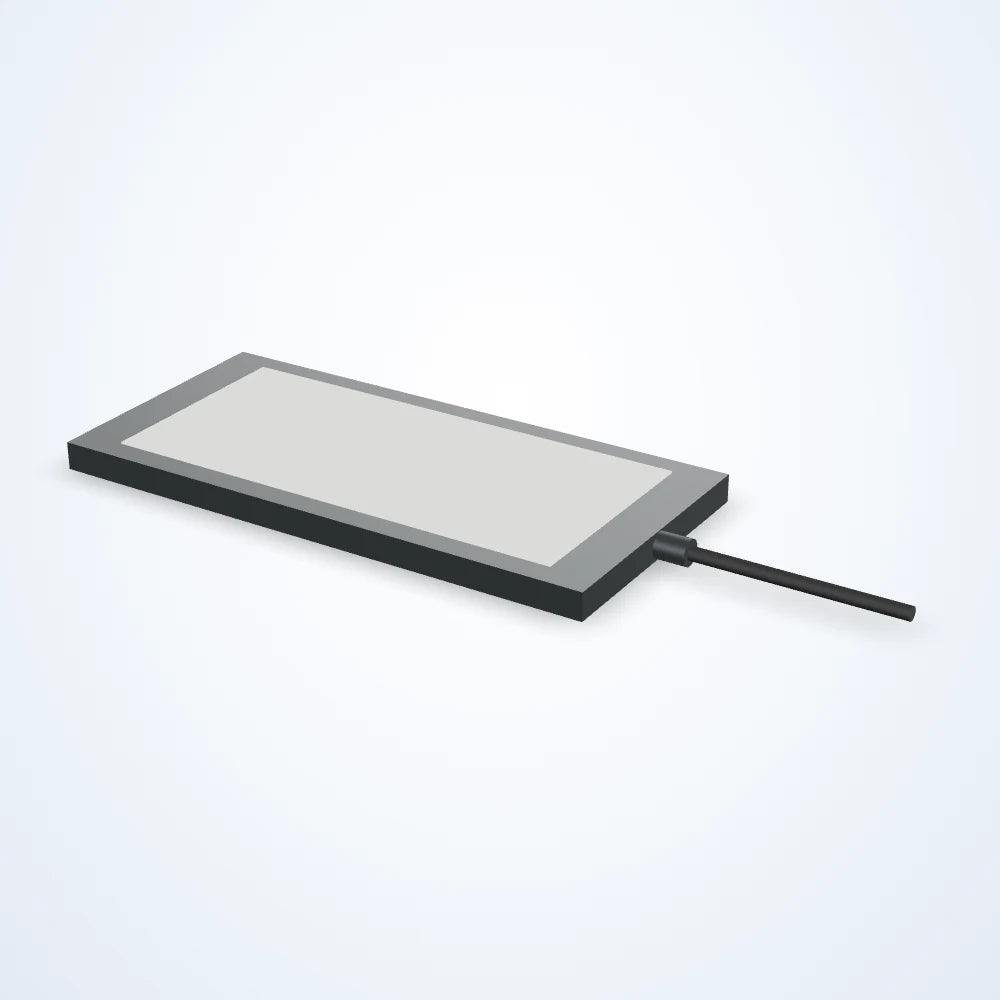

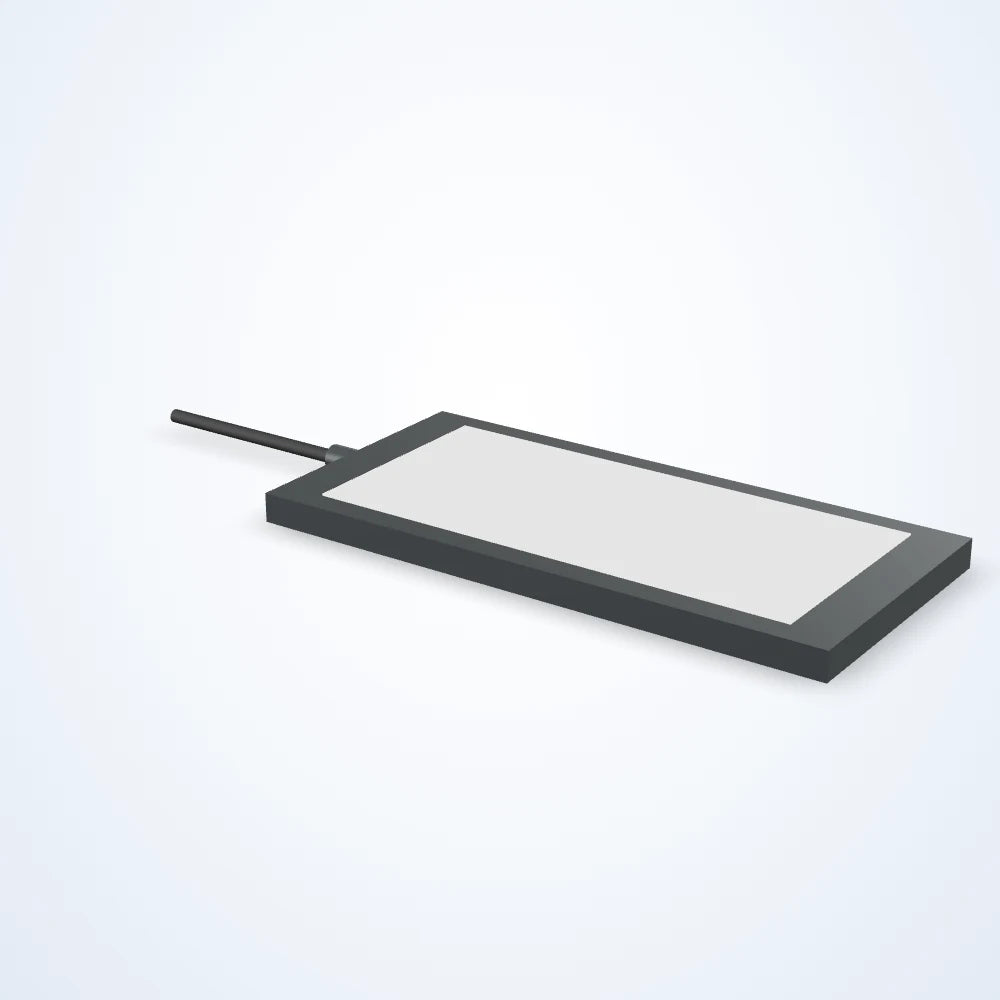

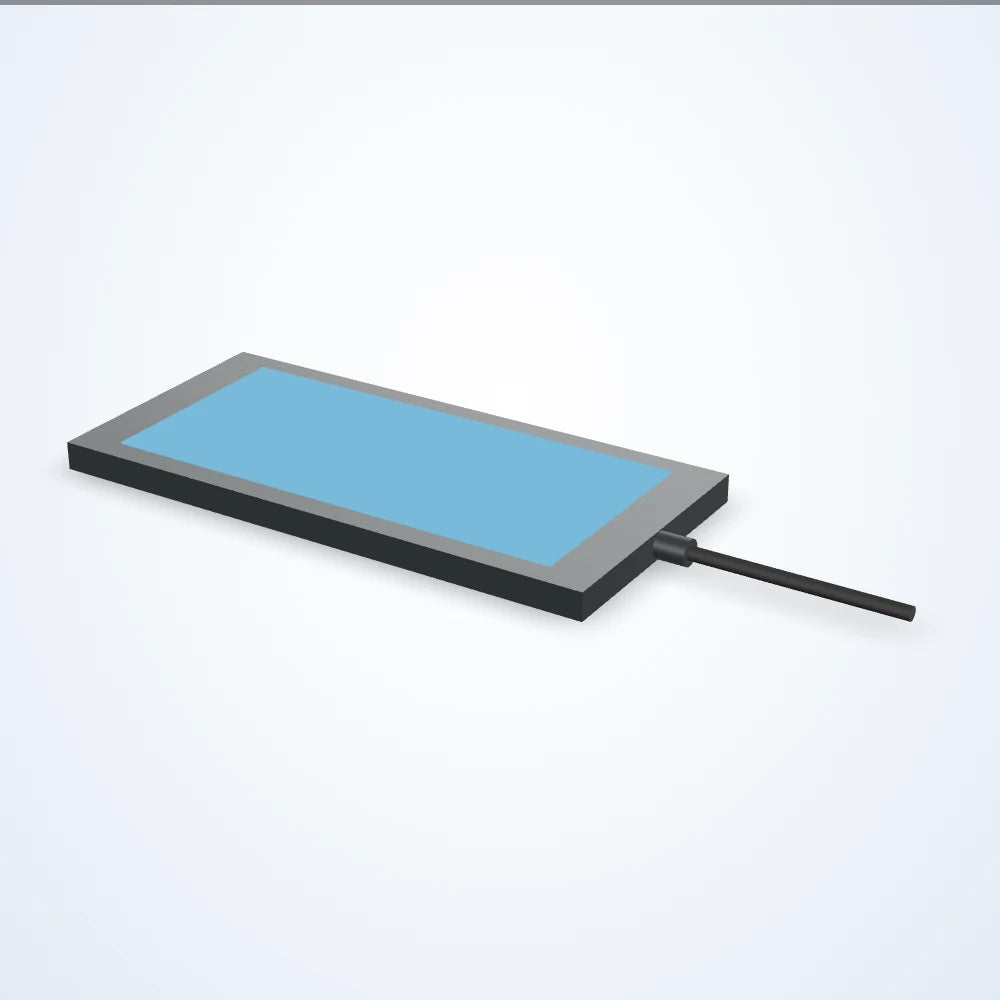

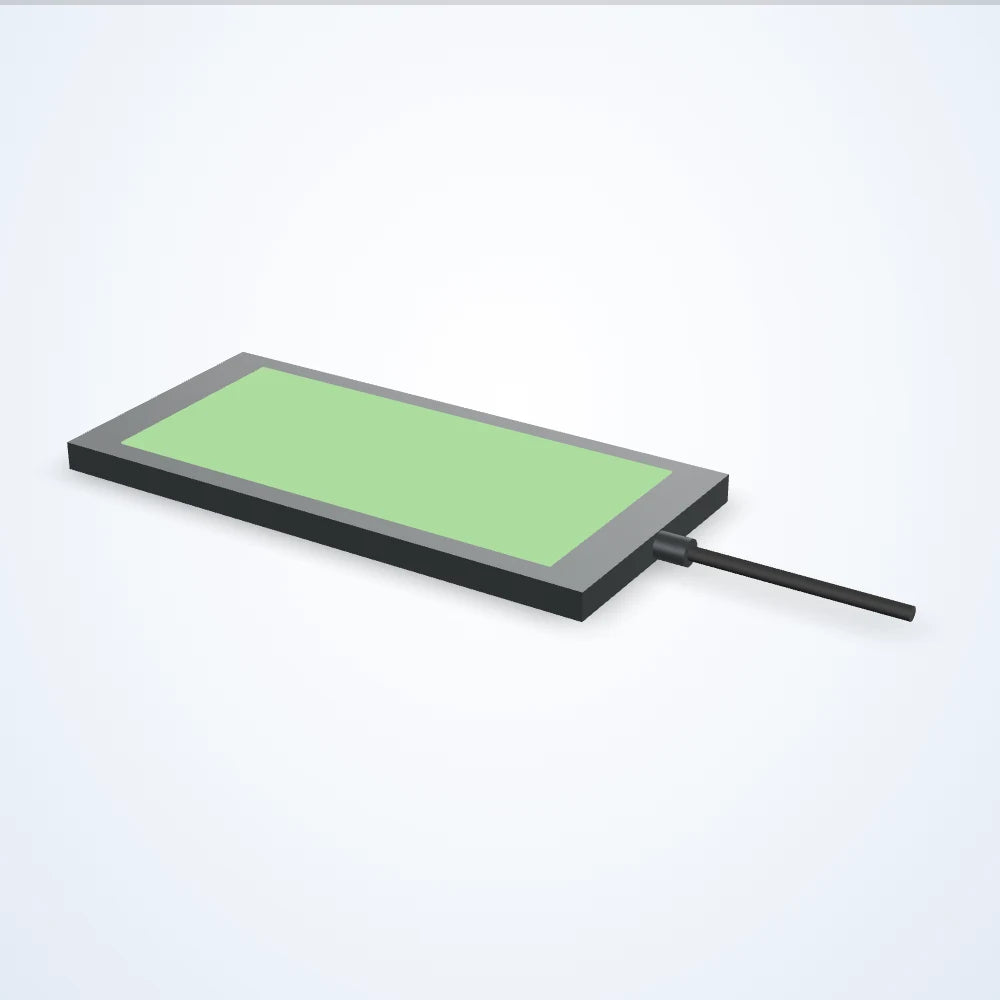

Backlight, 184.3 x 85.4 mm lit area (LS-BKL-0143)
Model LS-BKL-0143
- ColourWhite, Red, Green, Blue
- Voltage24 VDC
- TypeStandard
- Lit length184.3 mm
from $1,179.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 12 available
Configuration LS-BKL-0143-01 $1,309.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 184.3 x 85.4 mm; 24 VDC supply; connection: flying leads. Choose colour, operating modes, strobe trigger input, version below (12 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0143 |
|---|---|
| Connection at light | Hardwired |
| Driver included | Included |
| Driver location | In Line |
| Intensity control | Analog Voltage |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 1020 |
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 24.5 |
| Maximum input power overcurrent strobe (W) | 125 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 60 (by configuration) |
| Minimum overcurrent strobe duration (µs) | 30 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |

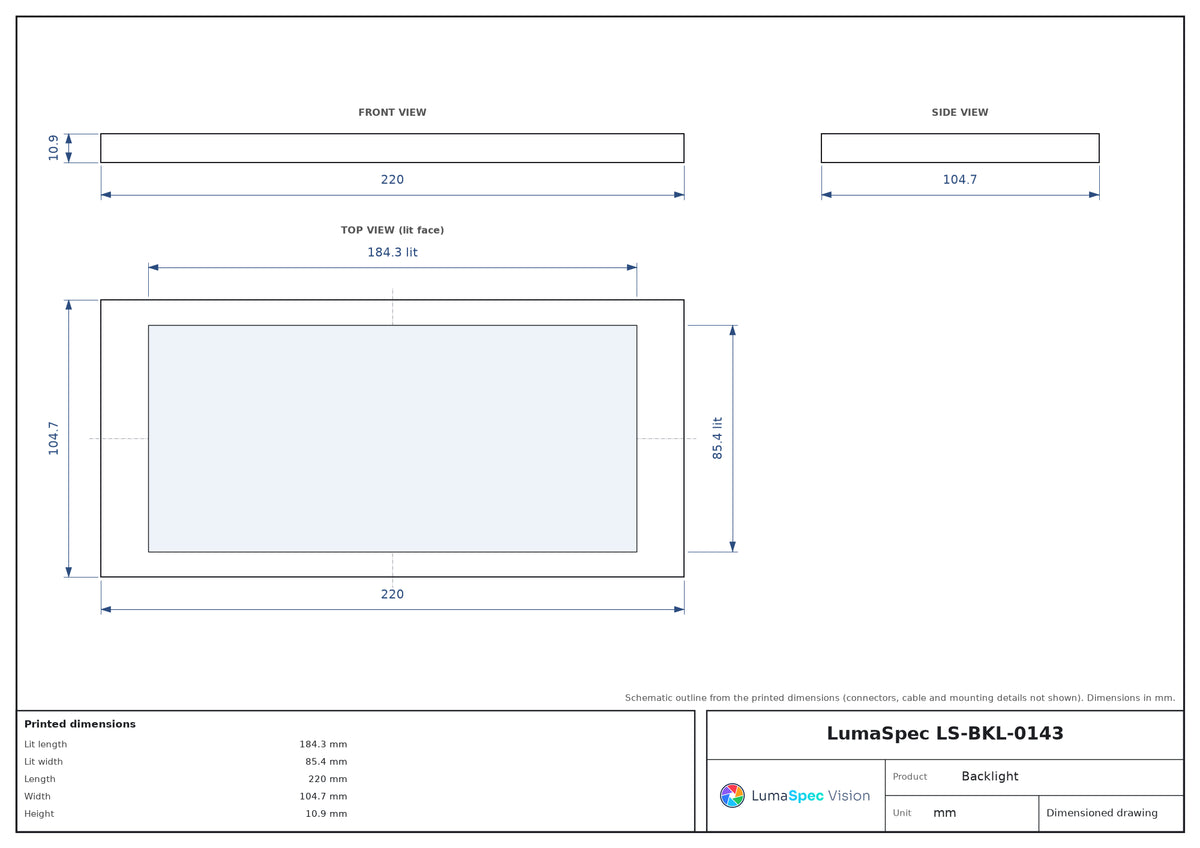

Mechanical
| Lit length (mm) | 184.3 |
|---|---|
| Lit width (mm) | 85.4 |
| Length (mm) | 220 |
| Width (mm) | 104.7 |
| Height (mm) | 10.9 |
| Housing | Aluminum |
| Mounting | T-Slot Channel |
Other models in the Backlight series, Flying Leads, IP50 (S08) series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0141 | 34.2 x 35.6 mm | $939.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0142 | 84.1 x 85.3 mm | $1,059.00 Quote | Built to order: ships in about 4-5 weeks | View |
