Backlights

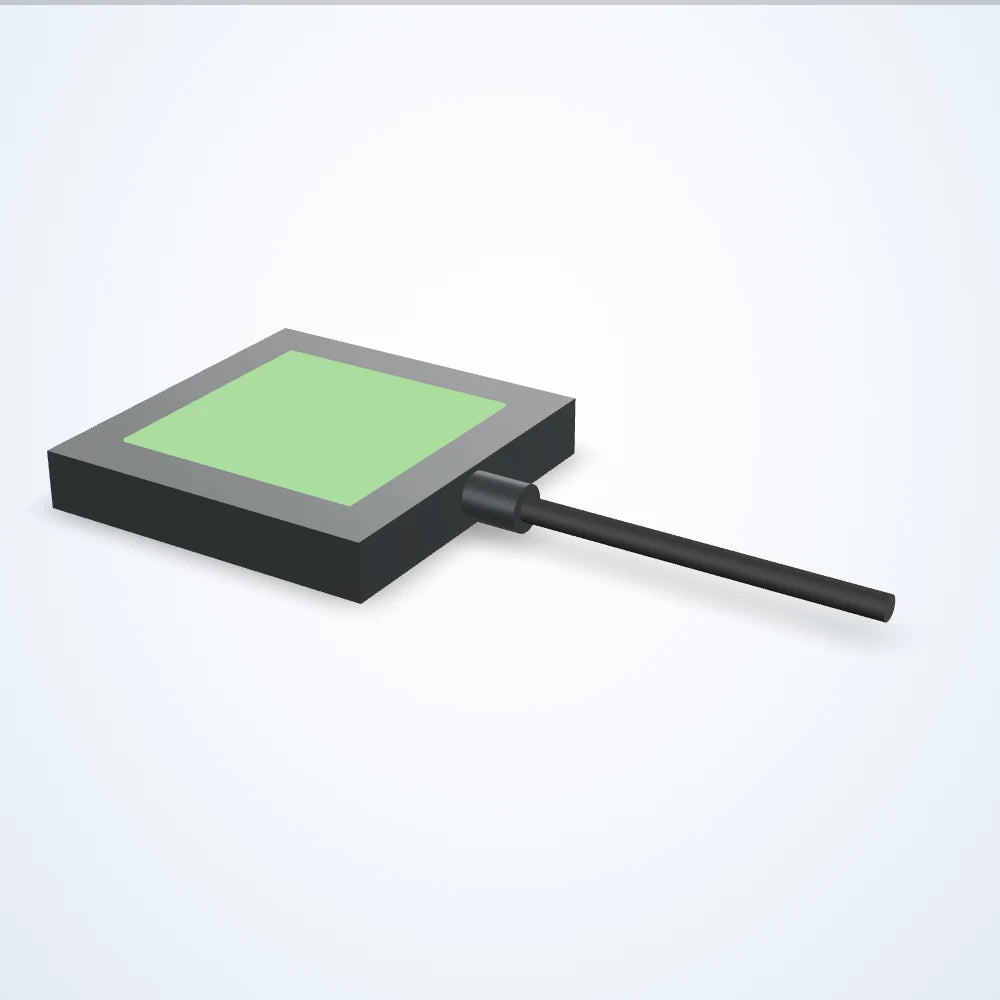

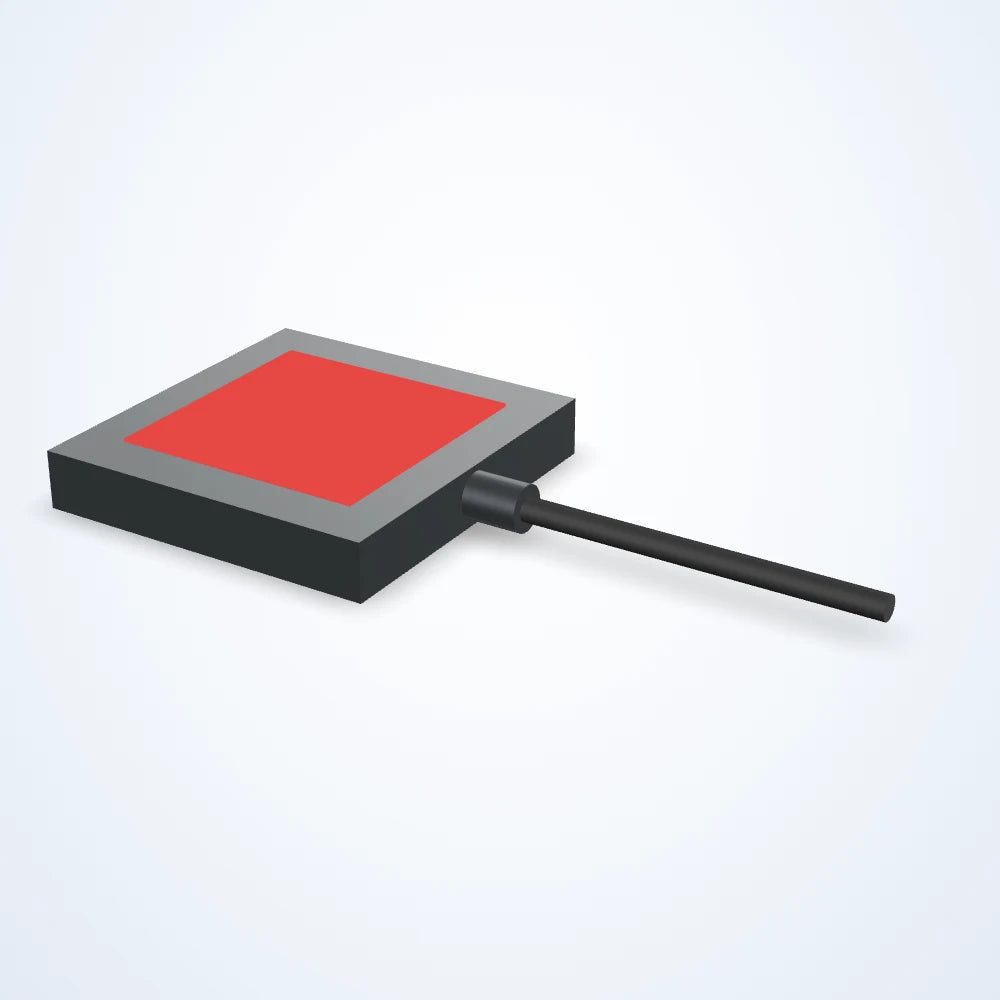

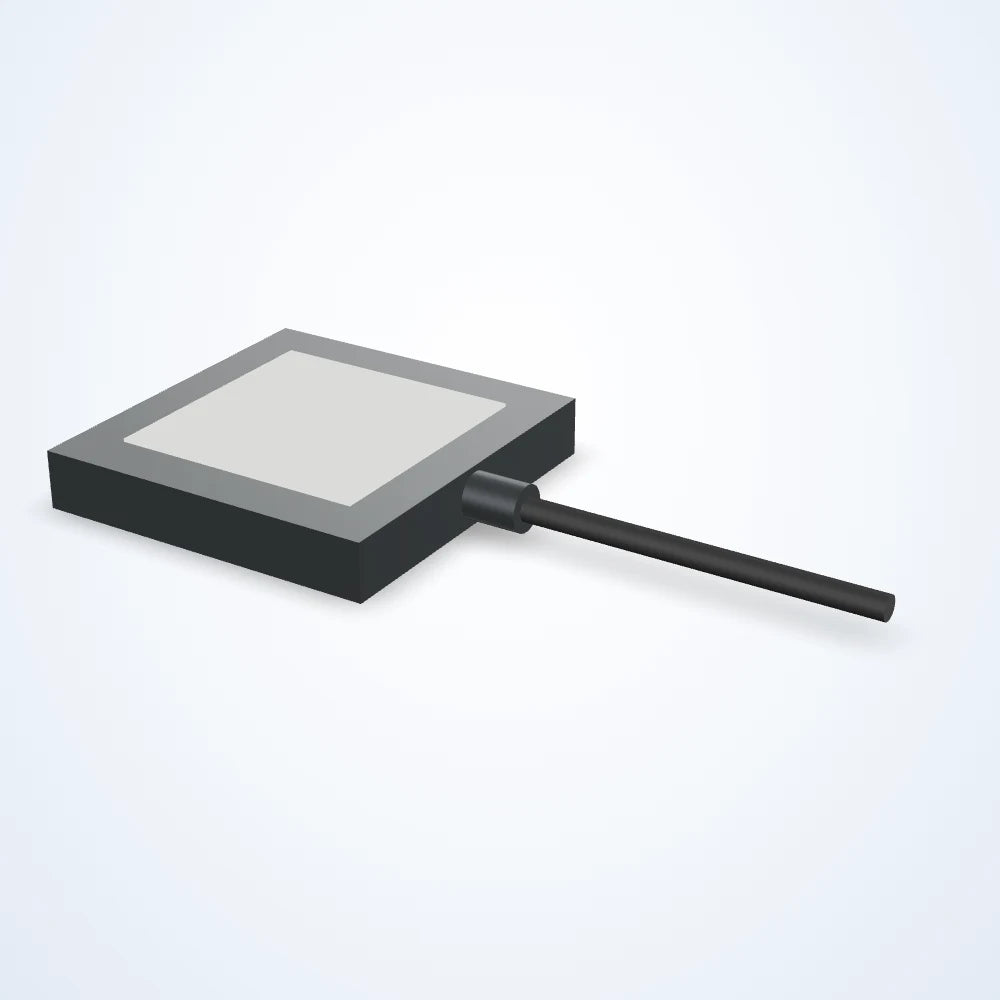

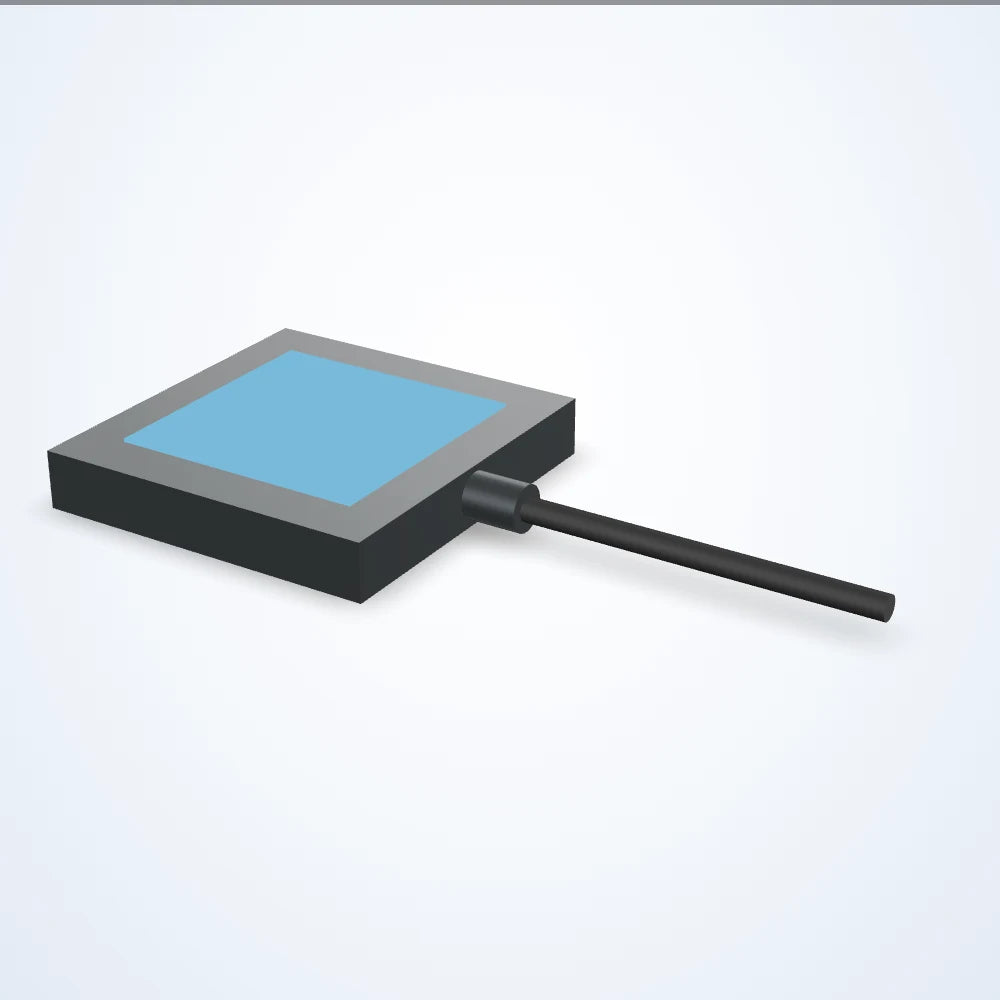

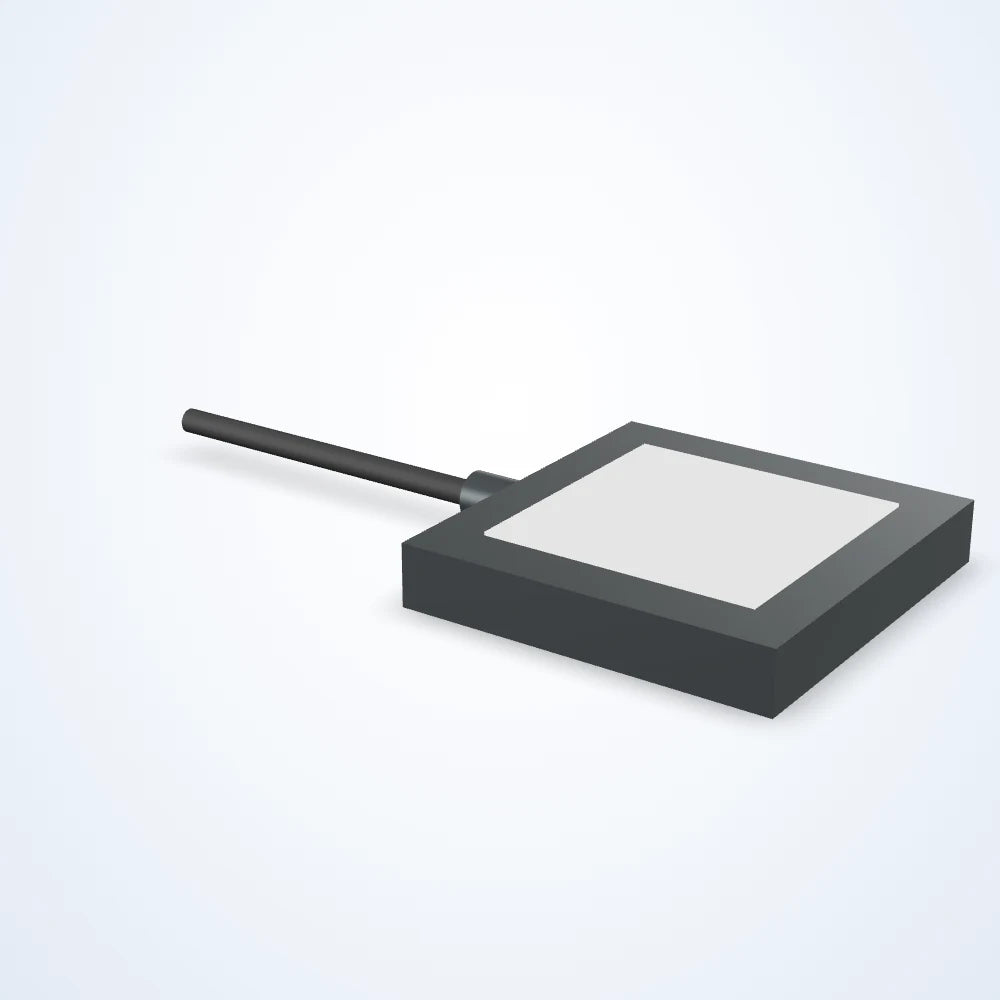

Backlight, 55.6 x 55.6 mm lit area (LS-BKL-0002)
Model LS-BKL-0002
- ColourWhite, Green, Red, Blue
- Voltage24 VDC
- TypeStandard
- Lit length55.6 mm
from $769.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 15 available
Configuration LS-BKL-0002-01 $1,009.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
LED backlight for silhouette imaging: gauging, presence and edge inspection, with the part between the light and the camera. Lit area 55.6 x 55.6 mm; 24 VDC supply; connection: flying leads. Choose colour, operating modes, strobe trigger input, version below (15 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BKL-0002 |
|---|---|
| Connection at light | Hardwired |
| Driver included | Included |
| Driver location | In Line |
| Intensity control | Analog Voltage |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP50 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Maximum constant on current (mA) | 239 |
| Maximum current (overcurrent strobe) (mA) | 8000 (by configuration) |
| Maximum input power constant on (W) | 5.7 |
| Maximum input power overcurrent strobe (W) | 125 (by configuration) |
| Maximum overcurrent strobe frequency (Hz) | 2000 (by configuration) |
| Maximum overcurrent strobe latency (µs) | 60 (by configuration) |
| Minimum overcurrent strobe duration (µs) | 30 (by configuration) |
| NPN trigger voltage (V) | < 1 VDC (by configuration) |
| PNP trigger current (mA) | 5 (by configuration) |
| PNP trigger voltage (V) | 2.5-30 VDC (by configuration) |

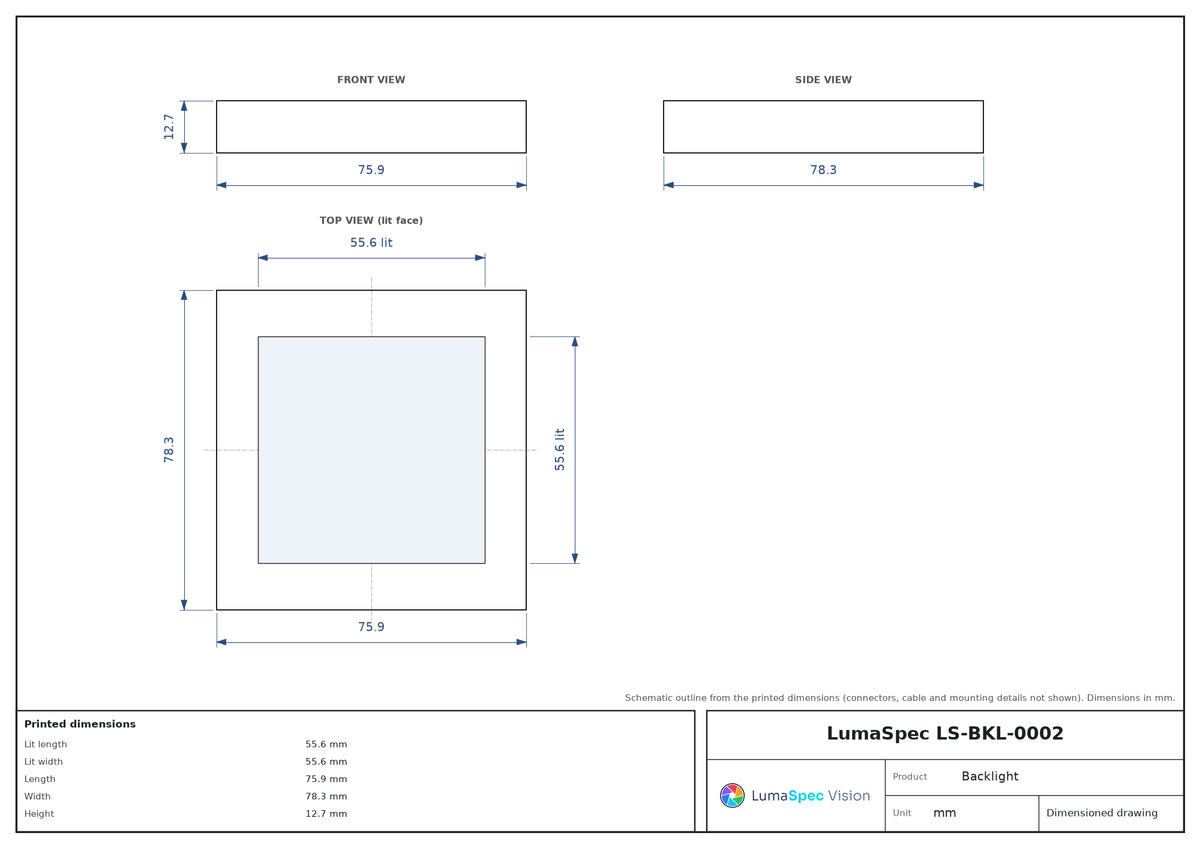

Mechanical
| Lit length (mm) | 55.6 |
|---|---|
| Lit width (mm) | 55.6 |
| Length (mm) | 75.9 |
| Width (mm) | 78.3 |
| Height (mm) | 12.7 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
Other models in the Backlight series, 12.7 mm high, Flying Leads series
See all 14 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BKL-0001 | 30.2 x 30.2 mm | $769.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0003 | 81 x 81 mm | $839.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0004 | 106.5 x 106.5 mm | $909.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0005 | 131.9 x 131.9 mm | $989.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0006 | 157.3 x 157.3 mm | $1,049.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0007 | 182.7 x 182.7 mm | $1,119.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0008 | 208.1 x 208.1 mm | $1,179.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0009 | 233.5 x 233.5 mm | $1,249.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0010 | 258.9 x 258.9 mm | $1,309.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0011 | 284.3 x 284.3 mm | $1,369.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0012 | 309.7 x 309.7 mm | $1,429.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0013 | 355.1 x 355.1 mm | $1,489.00 Quote | Built to order: ships in about 4-5 weeks | View |
| LS-BKL-0014 | 360.5 x 360.5 mm | $1,549.00 Quote | Built to order: ships in about 4-5 weeks | View |
