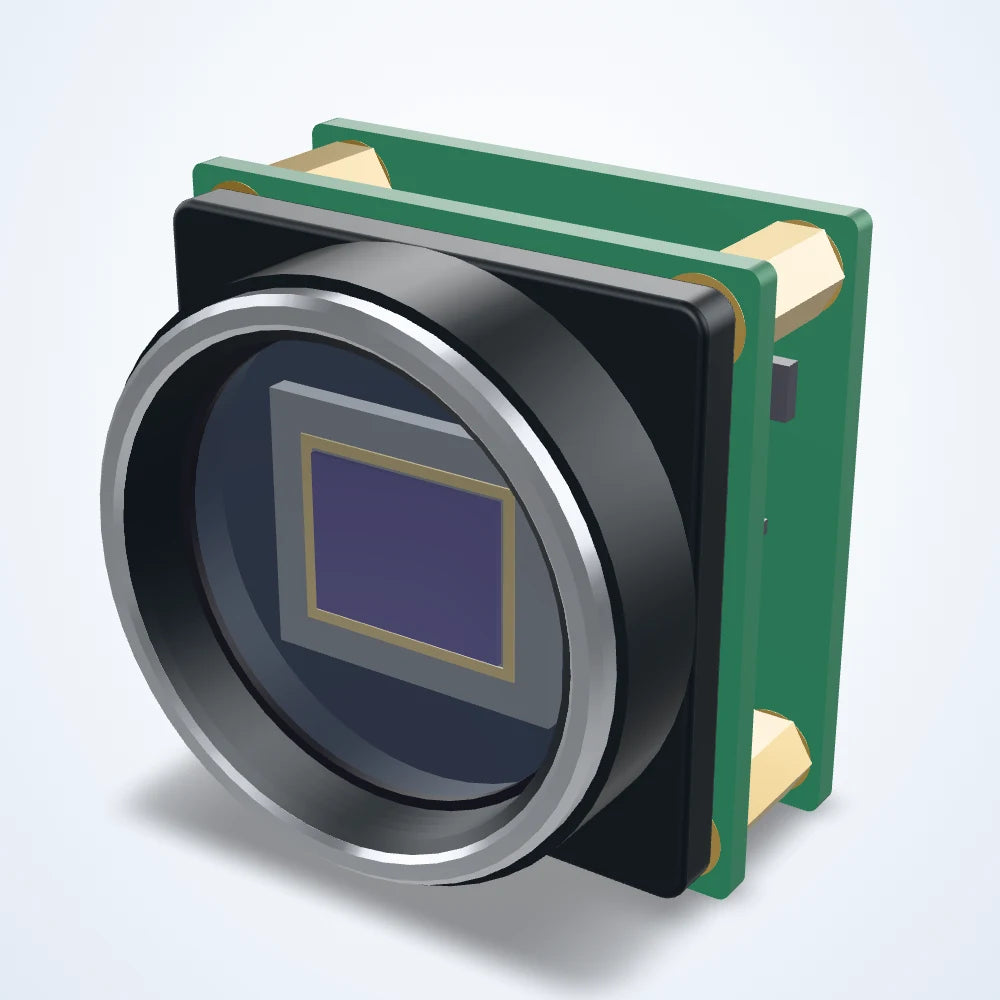

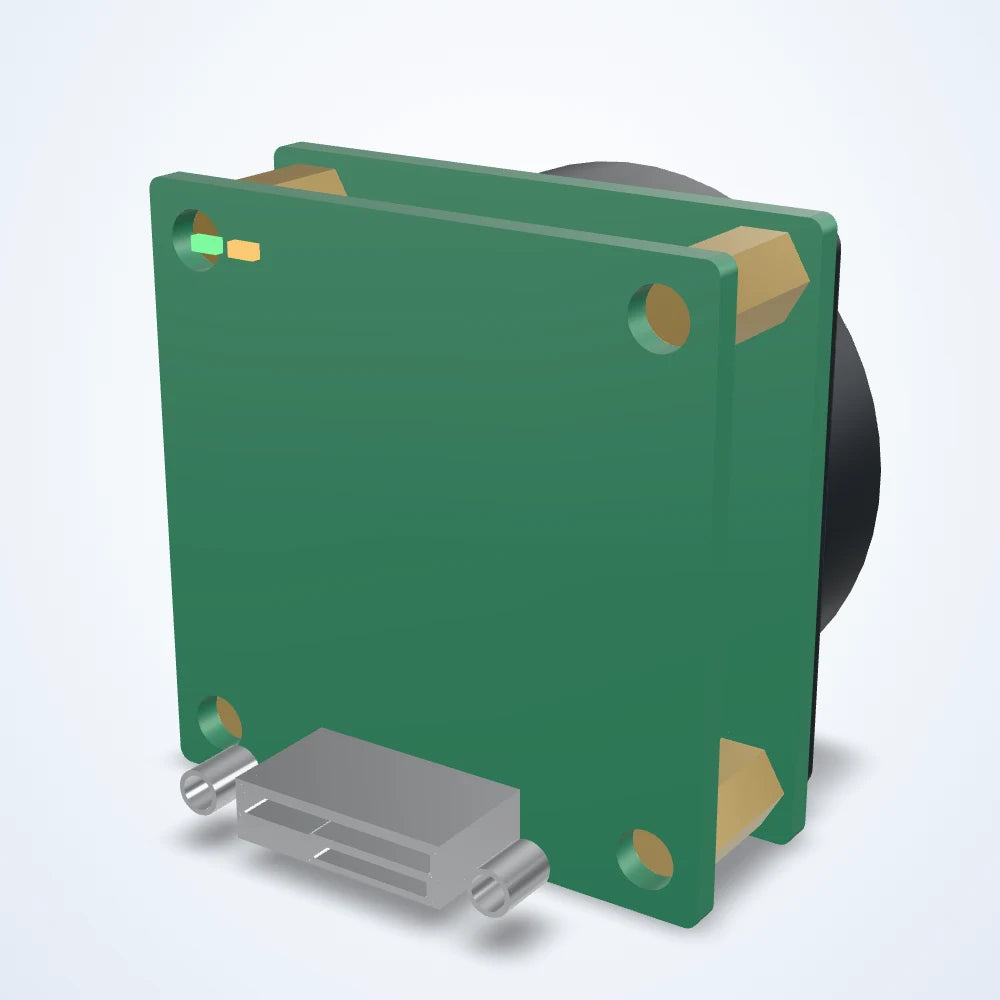

Rendered illustration: the actual product may differ in appearance.
Board-level cameras
6.3 MP USB3 board-level camera, IMX178, 1/1.8" rolling shutter, 60 fps (LS-BCM-0004)
Model LS-BCM-0004
- Resolution3072 × 2048 (6.3MP)
- Sensor1/1.8"
- InterfaceUSB3.0
- Speed60 fps
- Lens mountC-mount
- Pixel size2.4 μm
$275.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
6.3 MP board-level camera for building vision into compact machines and devices. IMX178 sensor (1/1.8"); 3072 x 2048 pixels of 2.4 μm; up to 60 frames per second; rolling shutter; USB3 interface; C-mount lens mount; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BCM-0004 |
|---|
Sensor and imaging
| Sensor model | Sony IMX178 |
|---|---|
| Resolution | 3072 × 2048 (6.3MP) |
| Max. frame rate | 60 fps |
| Pixel size | 2.4 μm |
| Sensor size | 1/1.8" |
| Shutter | Rolling |
| Pixel bit depth | 10-bit |
| Sensor make | Sony |
| Sensor type | CMOS |
| Dynamic range | 66.0 dB |
| Exposure time | 11 μs ~ 1 s |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| Digital I/O | 1 opto-isolated input lines, 1 opto-isolated output lines, 1 non-opto-isolated Configurable input and output lines |
Environment and compliance
| Operating temperature | -30 - 50°C(Operating), -30 - 80°C(Storage) |
|---|
Electrical
| Output | Mono / Color |
|---|---|
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
| Power supply | 5 V via USB3.0 port |
| Power consumption | 5 V@ ≈2.8 W |
Mechanical
| Lens mount | C-mount |
|---|---|

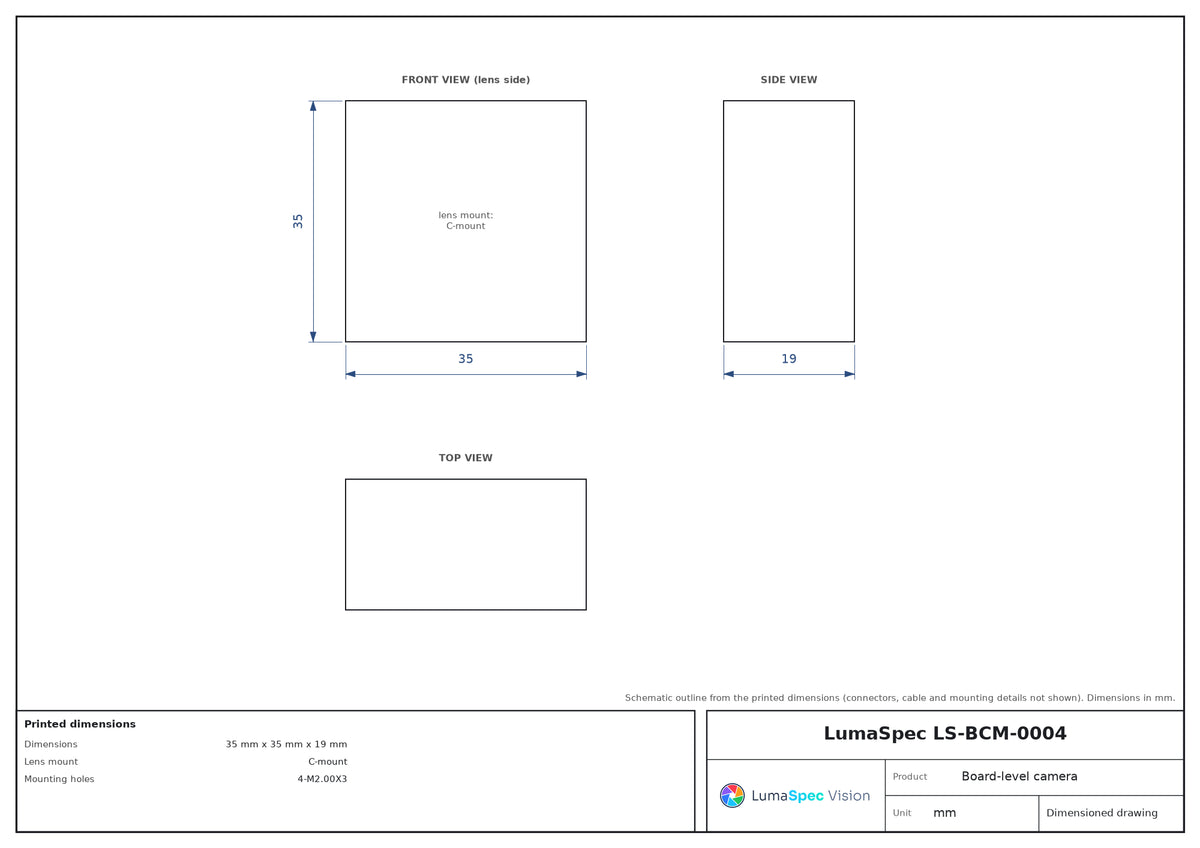

| Dimensions | 35 mm x 35 mm x 19 mm |
| Mounting holes | 4-M2.00X3 |
| Shipping weight | 2.00 kg |
Other models in the USB3 board-level cameras (LS-BCM-S02) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BCM-0005 | 6.3 MP, 1/1.8", USB3, Color | $322.00 | Ships in 3-4 weeks | View |
| LS-BCM-0003 | 3.1 MP, 1/1.8", USB3, Mono/Color | $690.00 | Ships in 3-4 weeks | View |
| LS-BCM-0002 | 2.3 MP, 1/1.2", USB3, Mono/Color | $737.00 | Ships in 3-4 weeks | View |
