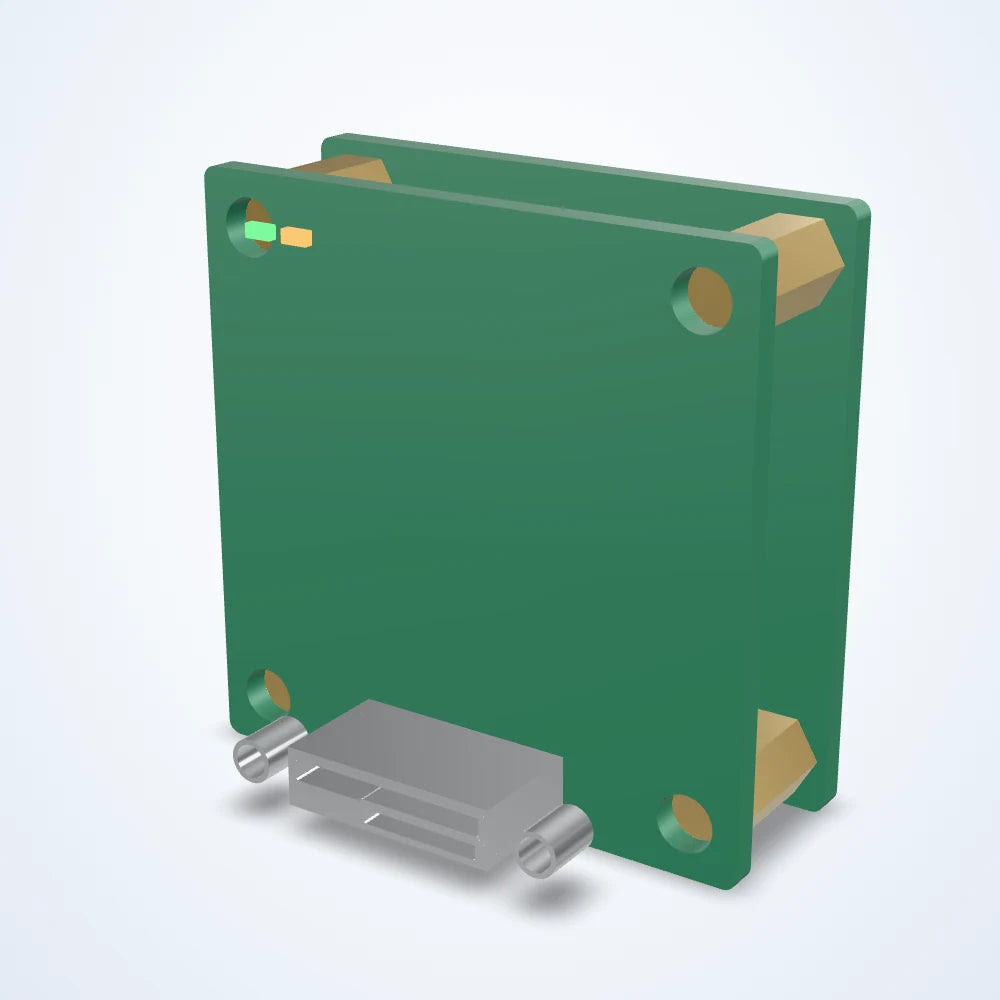

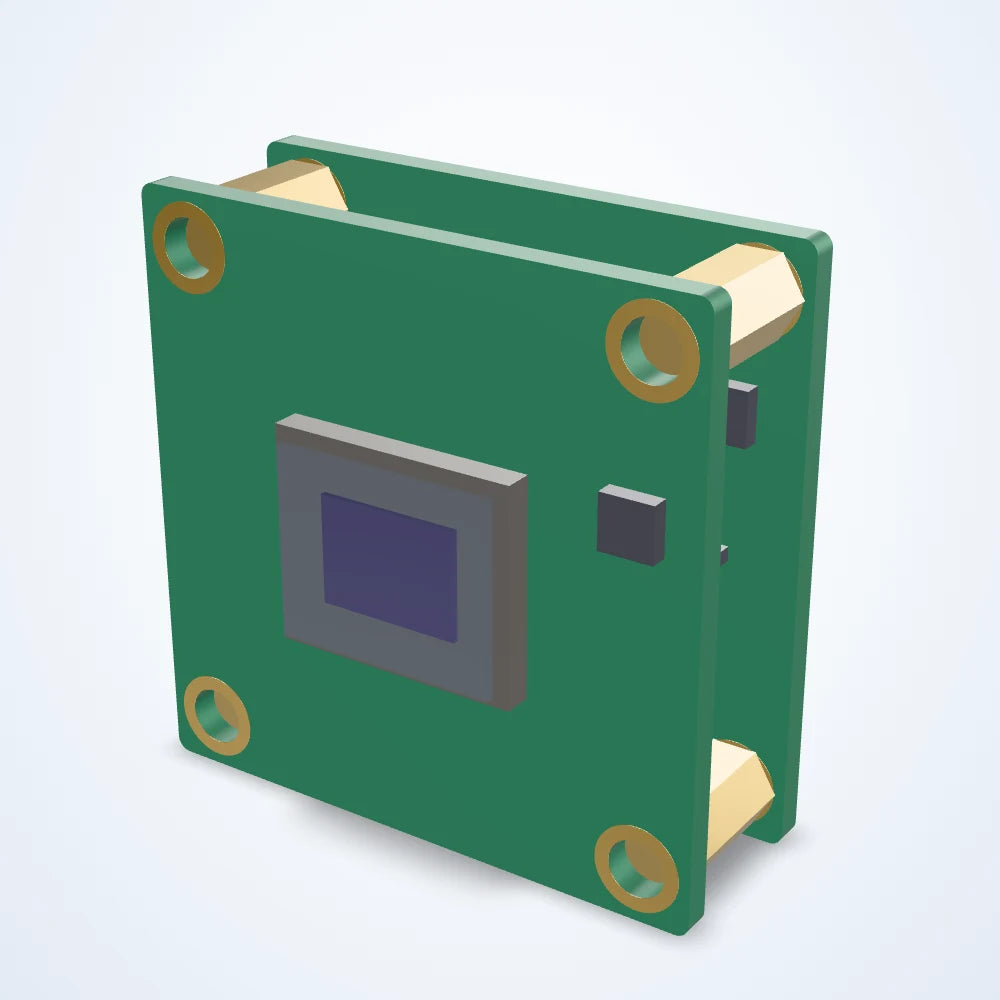

Rendered illustration: the actual product may differ in appearance.
Board-level cameras
3.1 MP USB3 board-level camera, IMX252, 1/1.8" global shutter, 120 fps (LS-BCM-0003)
Model LS-BCM-0003
- Resolution2048 × 1536 (3MP)
- Sensor1/1.8"
- InterfaceUSB3.0
- Speed120 fps
- Lens mountC-mount
- Pixel size3.45 μm
$690.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
3.1 MP board-level camera for building vision into compact machines and devices. IMX252 sensor (1/1.8"); 2048 x 1536 pixels of 3.45 μm; up to 120 frames per second; global shutter; USB3 interface; mono or colour version.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BCM-0003 |
|---|
Sensor and imaging
| Sensor model | Sony IMX252 |
|---|---|
| Resolution | 2048 × 1536 (3MP) |
| Max. frame rate | 120 fps |
| Pixel size | 3.45 μm |
| Sensor size | 1/1.8" |
| Shutter | Global |
| Pixel bit depth | 10-bit |
| Sensor make | Sony |
| Sensor type | CMOS |
| Dynamic range | >70.0 dB |
| Exposure time | 16 μs ~ 1 s |
Interfaces and I/O
| Data interface | USB3.0 |
|---|---|
| Digital I/O | 1 opto-isolated input lines, 1 opto-isolated output lines, 1 non-opto-isolated Configurable input and output lines |
Environment and compliance
| Operating temperature | -30 - 50°C(Operating), -30 - 80°C(Storage) |
|---|
Electrical
| Output | Mono / Color |
|---|---|
| Trigger mode | ● Soft Trigger ● Hardware Trigger ● Free Run |
| Power supply | 5 V via USB3.0 port |
| Power consumption | 5 V@ ≈2.8 W |
Mechanical
| Dimensions | 35 mm x 35 mm x 31 mm |
|---|---|
| Lens mount | C-Mount |
| Weight | 50g |
| Mounting holes | 4-M2X3.0; 2-M2X3.0 |
Other models in the USB3 board-level cameras (LS-BCM-S02) series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BCM-0004 | 6.3 MP, 1/1.8", USB3, Mono/Color | $275.00 | Ships in 3-4 weeks | View |
| LS-BCM-0005 | 6.3 MP, 1/1.8", USB3, Color | $322.00 | Ships in 3-4 weeks | View |
| LS-BCM-0002 | 2.3 MP, 1/1.2", USB3, Mono/Color | $737.00 | Ships in 3-4 weeks | View |
