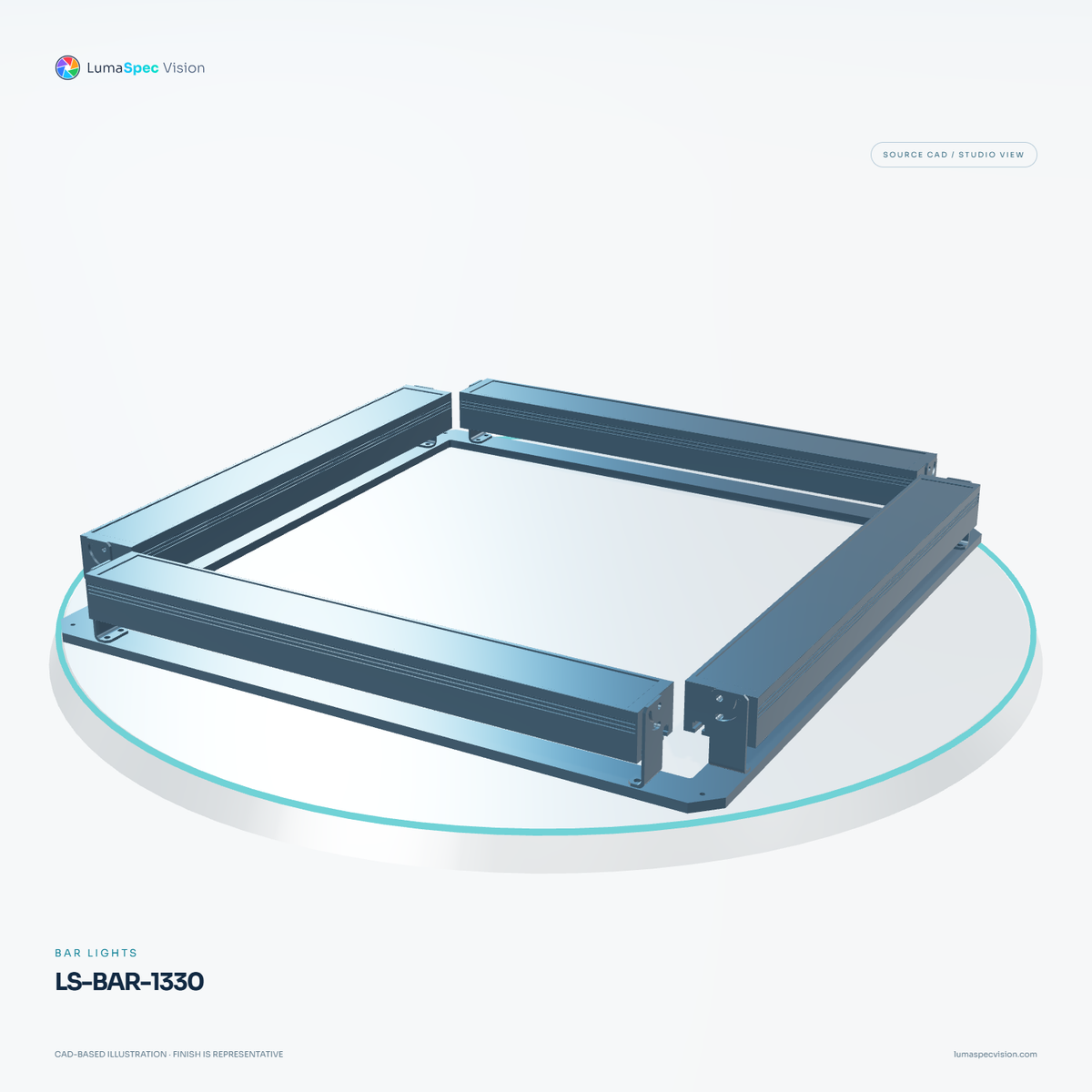

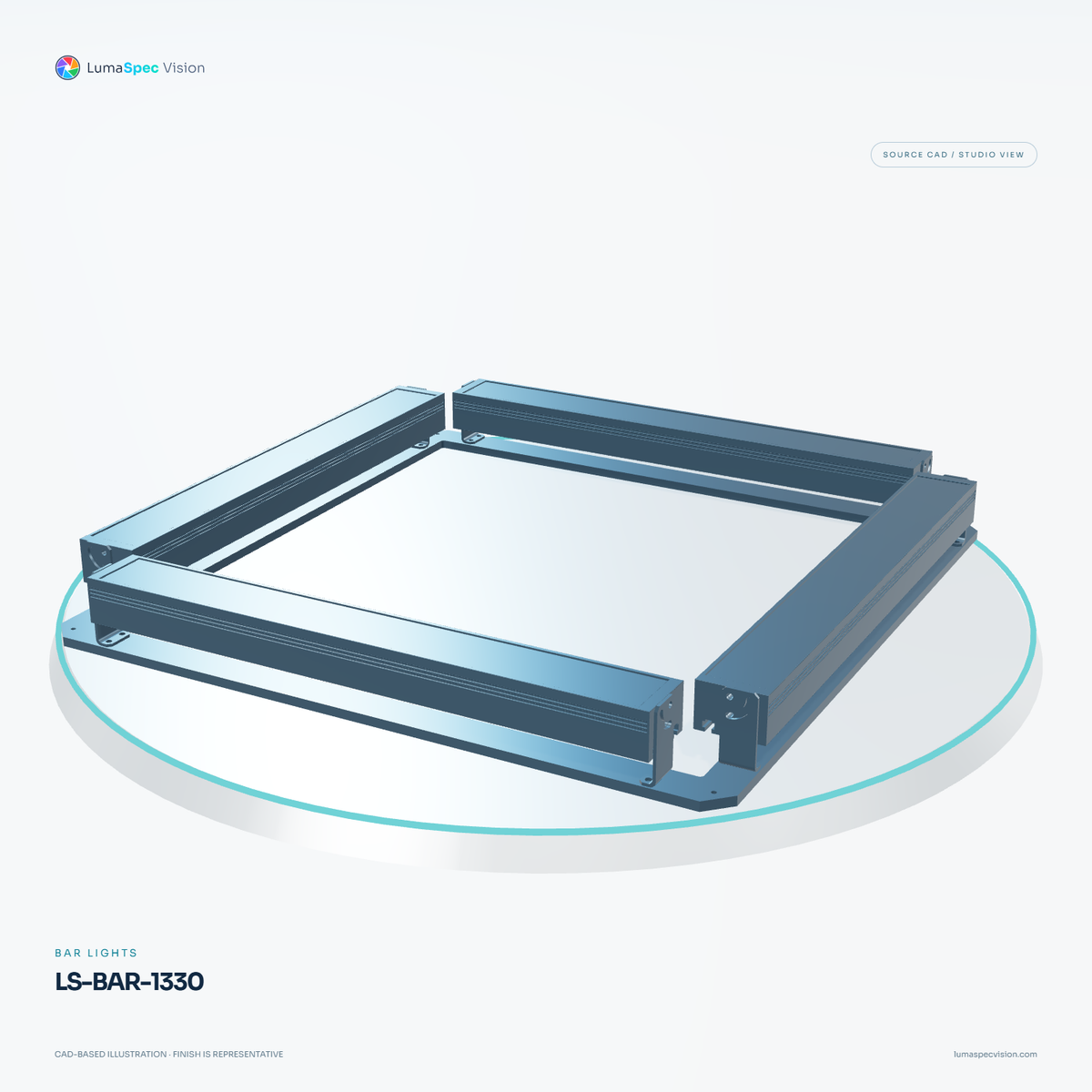

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.
Bar lights
290 x 290 mm Four-Bar Square LED Bar Light (LS-BAR-1330)
Model LS-BAR-1330
- ColourRed, Green, Blue, White
- Size377.5x377.5x43 mm
- Voltage24 V
- TypeStrip / combination
Ships in 2-3 weeks
3.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
290 x 290 mm Four-Bar Square LED Bar Light. Combined bar light (four bar lights on a square frame) for large-size product defect detection, character recognition, positioning and identification. The angle can be customized and each bar light can be controlled independently.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-1330 |
|---|
Light
| Colours | Red, Green, Blue, White |
|---|---|
| LED colour options (legend) | R / G / B / W / IR / UV |
| Colours shown per model | R, G, B, W |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R (W) | 60 |
| Power G/B/W (W) | 72 |
Mechanical
| Outer size L x W x H (mm) | 377.5x377.5x43 |
|---|---|
| Shipping weight (estimated) | 3.70 kg |
Mounting and drawing data

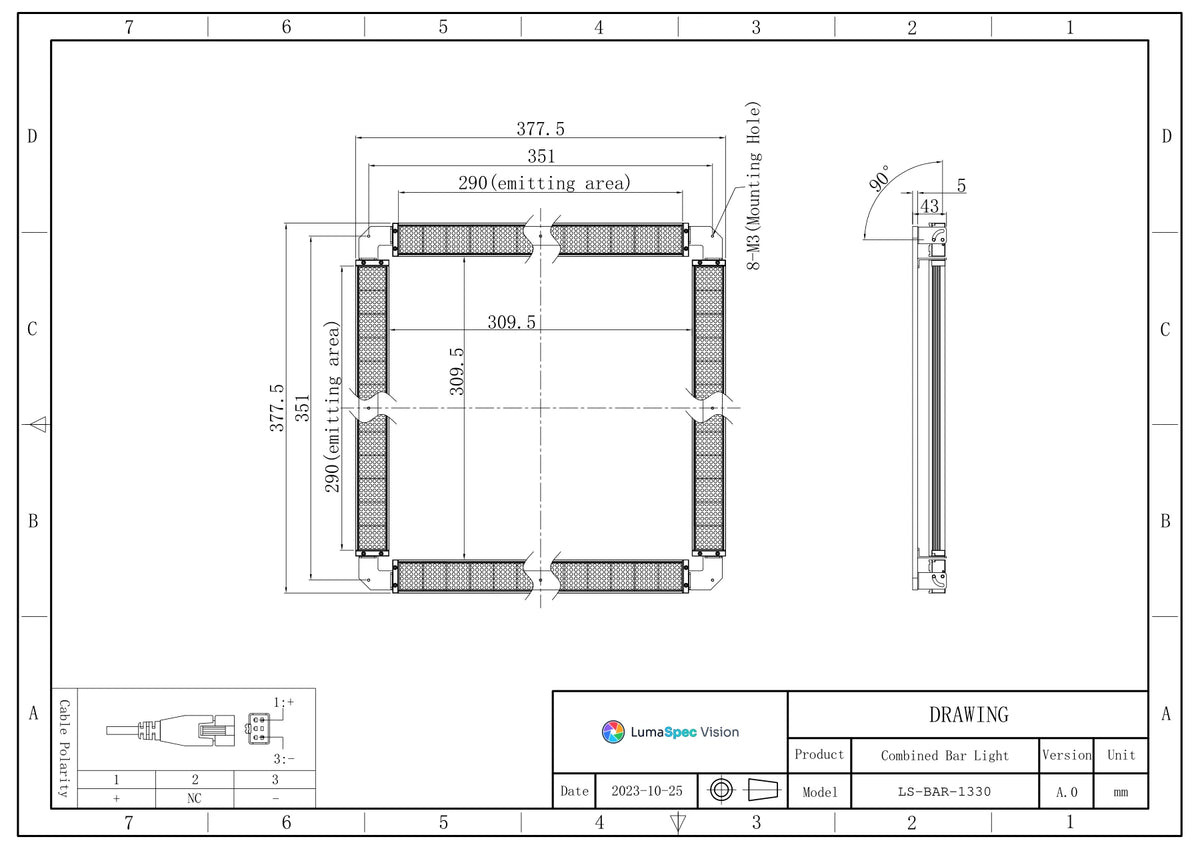

drawing: outer 377.5, mounting-hole pitch 351, emitting 290 per bar, inner opening 309.5x309.5, depth 43, 8-M3 mounting holes, bars tilt up to 90 deg, 5 offset
LS-BAR-1330

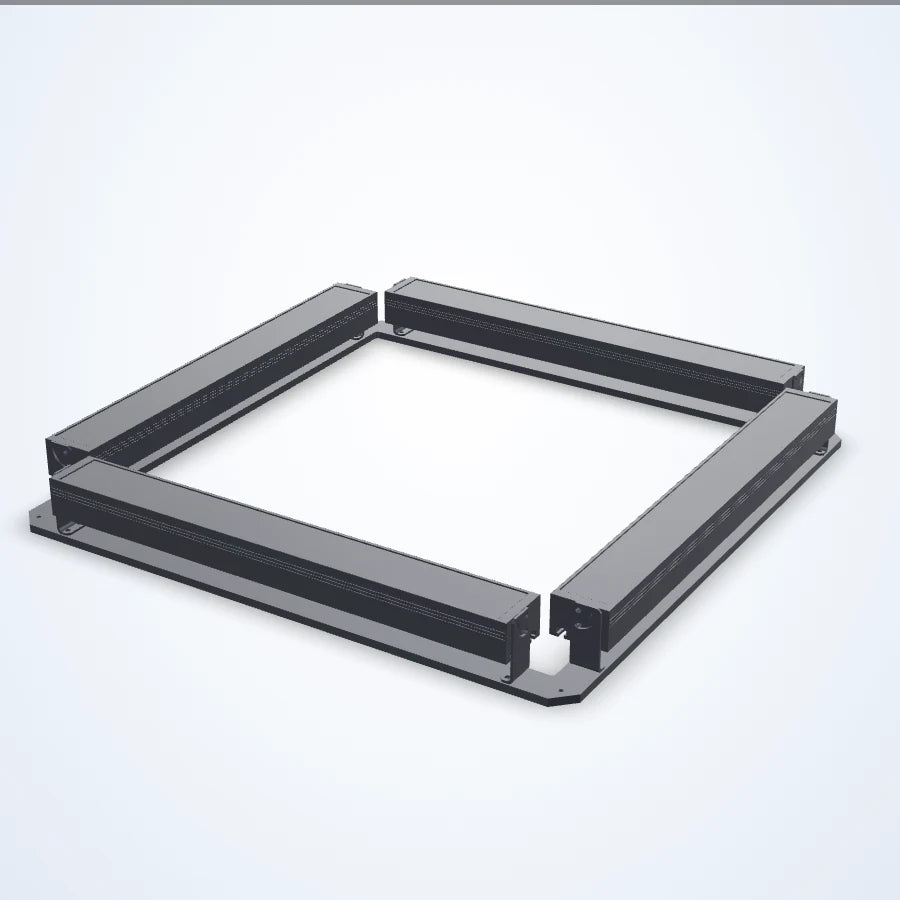

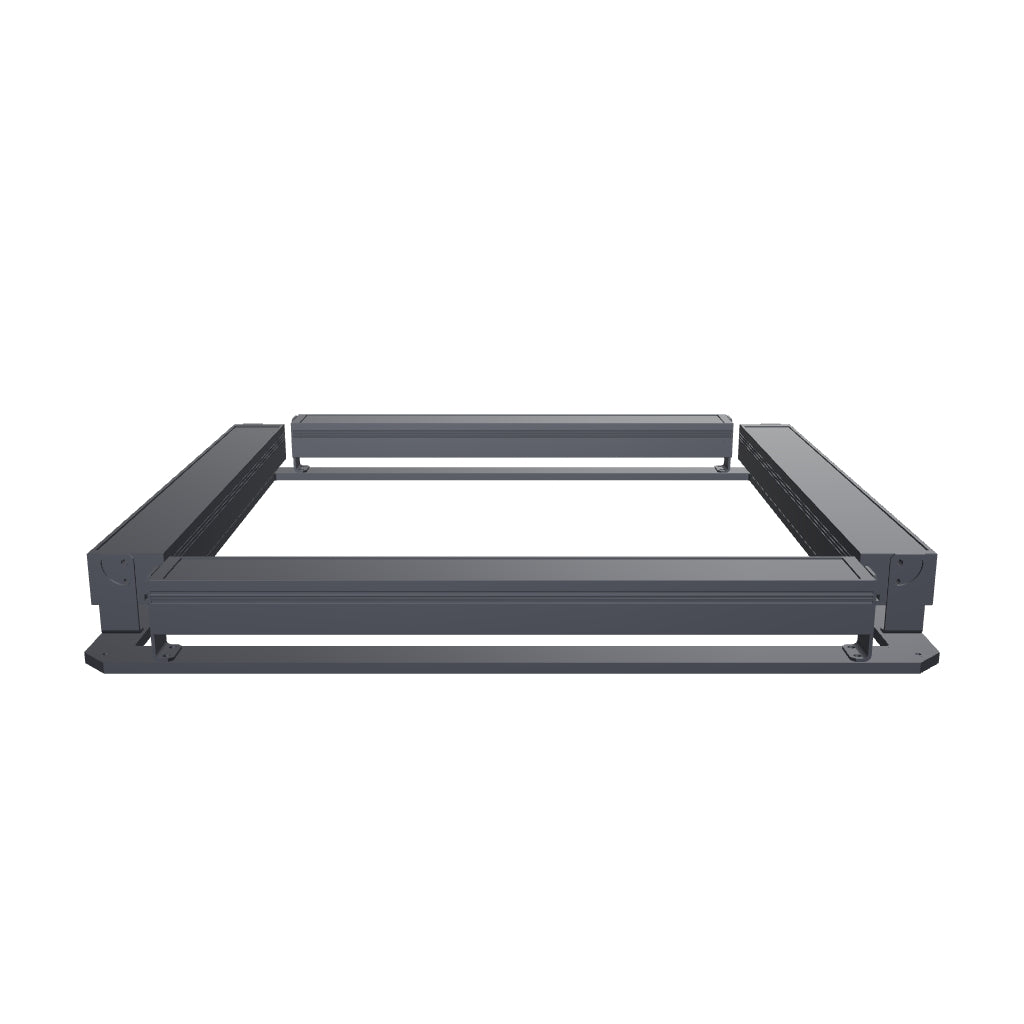

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Outer size L x W x H (mm)
- 377.5x377.5x43
- Voltage (V)
- 24
- Power R (W)
- 60
- Power G/B/W (W)
- 72
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Combined bar light (LS-BAR-S105) series
See all 7 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-BAR-1325 | 40 x 40 mm | $619.00 | Ships in 2-3 weeks | View |
| LS-BAR-1326 | 80 x 80 mm | $739.00 | Ships in 2-3 weeks | View |
| LS-BAR-1328 | 119 x 119 mm | $859.00 | Ships in 2-3 weeks | View |
| LS-BAR-1327 | 98 x 98 mm | $879.00 | Ships in 2-3 weeks | View |
| LS-BAR-1329 | 218 x 218 mm | $1,249.00 | Ships in 2-3 weeks | View |
| LS-BAR-1331 | 386 x 386 mm | $1,799.00 | Ships in 2-3 weeks | View |
