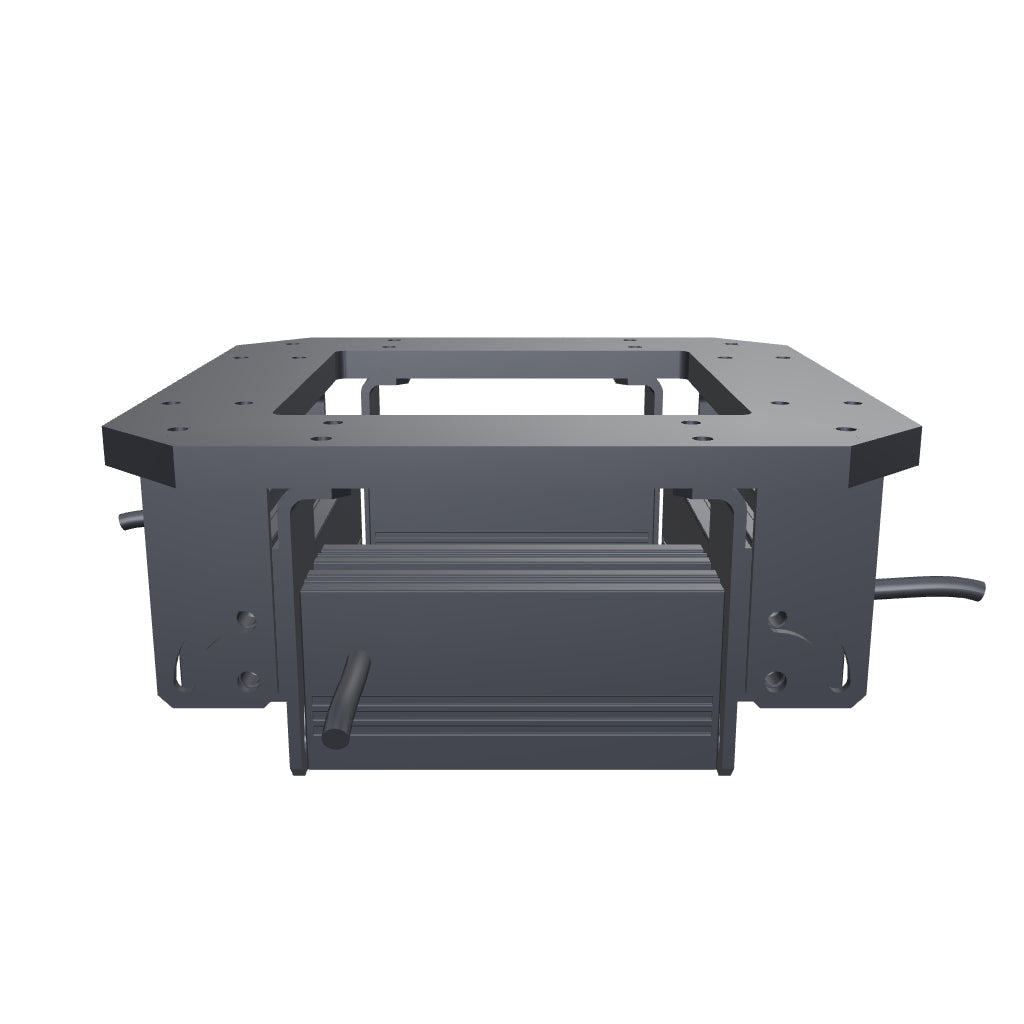

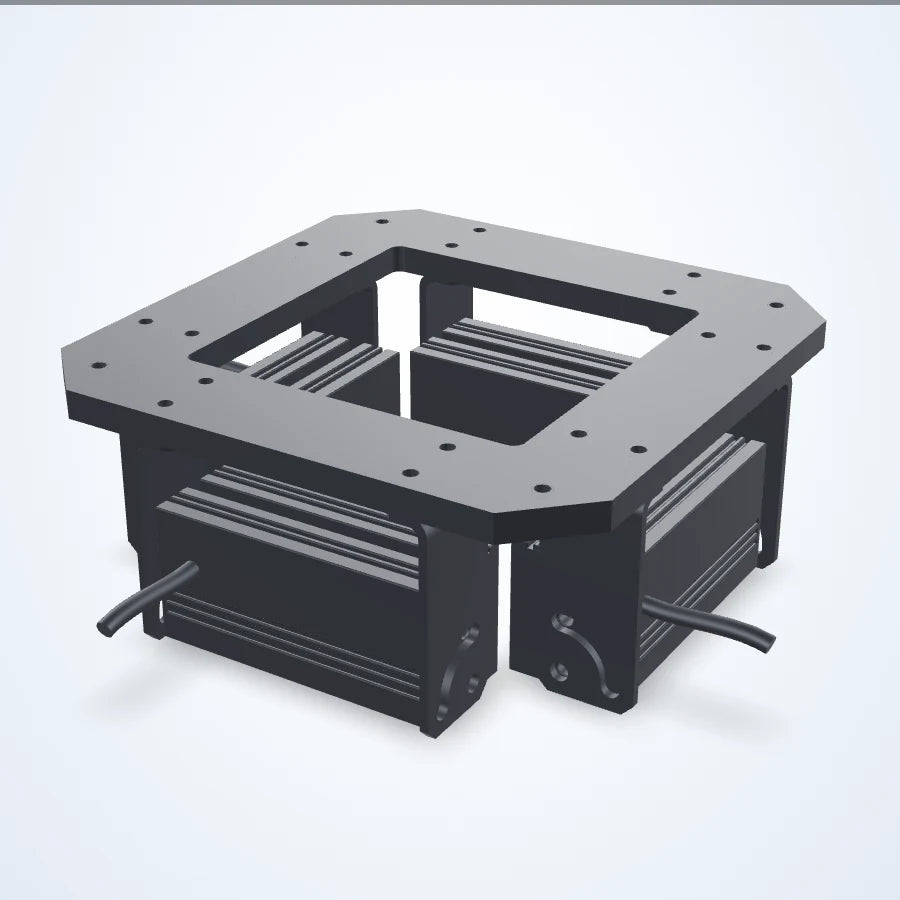

40 x 40 mm Four-Bar Square LED Bar Light (LS-BAR-1325)

Model LS-BAR-1325

ColourRed, Green, Blue, White
Size102x102x43 mm
Voltage24 V
TypeStrip / combination

$619.00

Ships in 2-3 weeks

0.55 kg shipping weight

Color Red Green Blue White

Volume pricing, Net 30 terms or a formal quote for purchasing?

40 x 40 mm Four-Bar Square LED Bar Light. Combined bar light (four bar lights on a square frame) for large-size product defect detection, character recognition, positioning and identification. The angle can be customized and each bar light can be controlled independently.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BAR-1325

Light

Colours	Red, Green, Blue, White
LED colour options (legend)	R / G / B / W / IR / UV
Colours shown per model	R, G, B, W

Electrical

Voltage (V)	24
Power R (W)	4
Power G/B/W (W)	6

Mechanical

Outer size L x W x H (mm)	102x102x43
Shipping weight (estimated)	0.55 kg

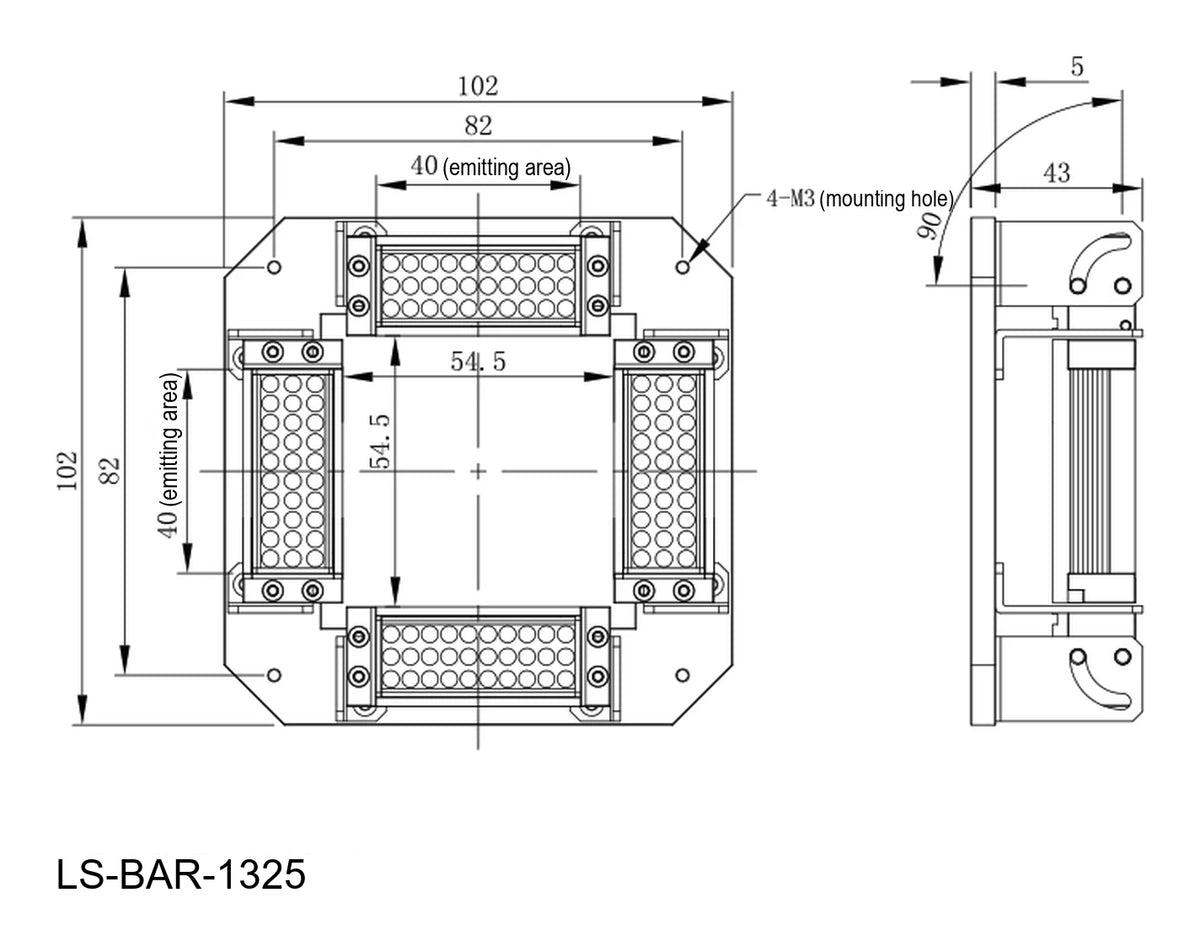

Mounting and drawing data

drawing: outer 102, mounting-hole pitch 82, emitting 40 per bar, inner opening 54.5x54.5, depth 43, 4-M3 mounting holes, bars tilt up to 90 deg, 5 offset

Other models in the Combined bar light (LS-BAR-S105) series

See all 7 models

Model	Size / key data	Price	Availability	Link
LS-BAR-1326	80 x 80 mm	$739.00	Ships in 2-3 weeks	View
LS-BAR-1328	119 x 119 mm	$859.00	Ships in 2-3 weeks	View
LS-BAR-1327	98 x 98 mm	$879.00	Ships in 2-3 weeks	View
LS-BAR-1329	218 x 218 mm	$1,249.00	Ships in 2-3 weeks	View
LS-BAR-1330	290 x 290 mm	$1,479.00	Ships in 2-3 weeks	View
LS-BAR-1331	386 x 386 mm	$1,799.00	Ships in 2-3 weeks	View
