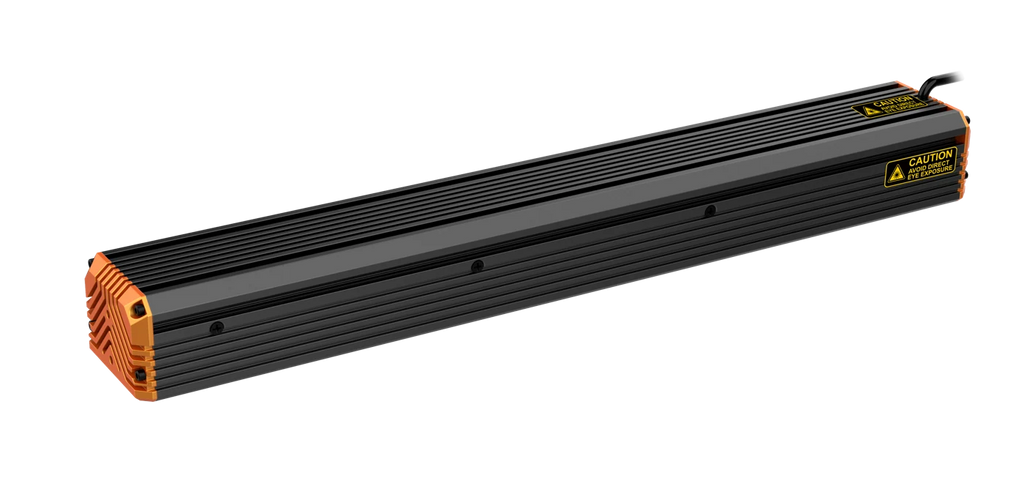

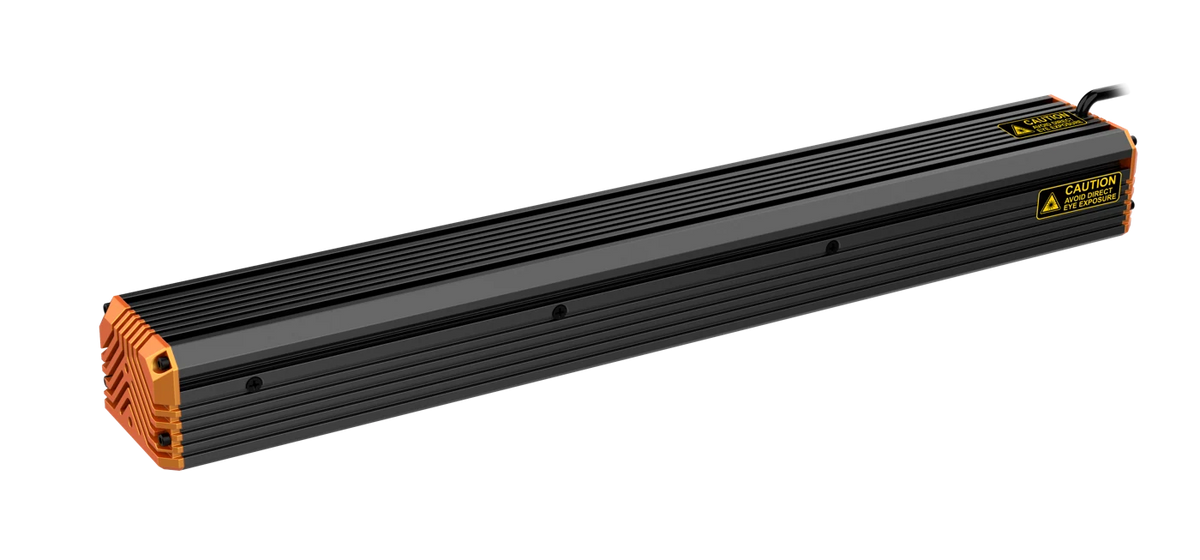

Bar Light, 1800 x 40 mm, White (LS-BAR-1251)
  • Bar Light, 1800 x 40 mm, White (LS-BAR-1251)

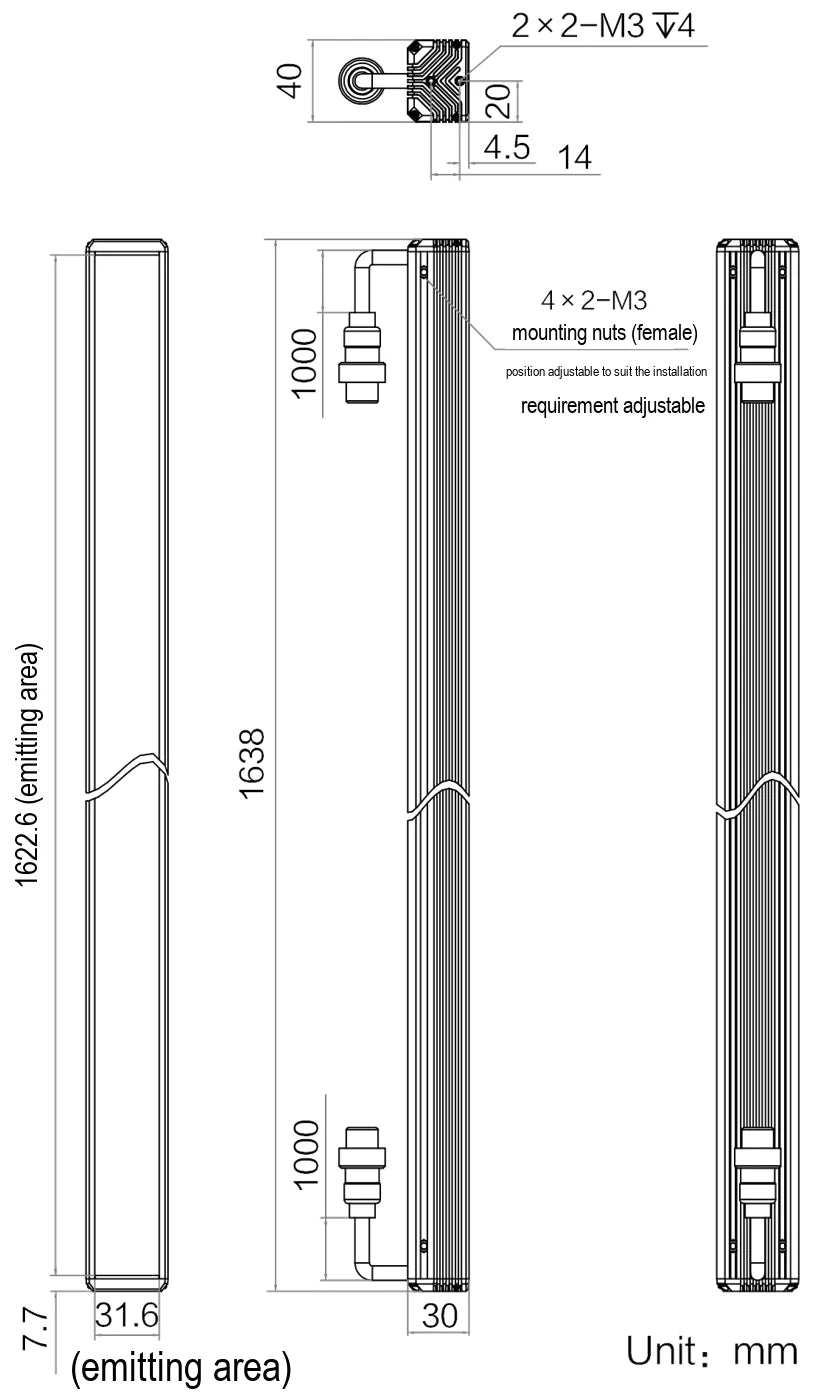

  • LS-BAR-1251 dimensions (mm)

Bar lights

Bar Light, 1800 x 40 mm, White (LS-BAR-1251)

Model LS-BAR-1251

  • ColourWhite
  • Emitting area1622.6 mm × 31.6 mm
  • Size1638 mm × 40 mm × 30 mm
  • Voltage24 VDC
  • Power162.2 W
$1,939.00
Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

4.16 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

Bar Light, 1800 x 40 mm, White (LS-BAR-1251)LS-BAR-1251

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bar Light, 1800 x 40 mm, White. Freely adjustable illumination direction and angle Multi-side mounting

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1251
Cooling modeNatural cooling

Optics

Best working distance30 ~ 500 mm

Interfaces and I/O

Connector type12M-2A(Female)
Cable length1 m

Light

ColorWhite
Color temperature6000 ~ 7500K
Emitting area dimension1622.6 mm × 31.6 mm
LED rows6
Diffuse plate includedPMMA

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power162.2 W
Input voltage24 VDC

Mechanical

Dimension1638 mm × 40 mm × 30 mm
Weight2.9 kg
Shipping weight (estimated)4.16 kg
