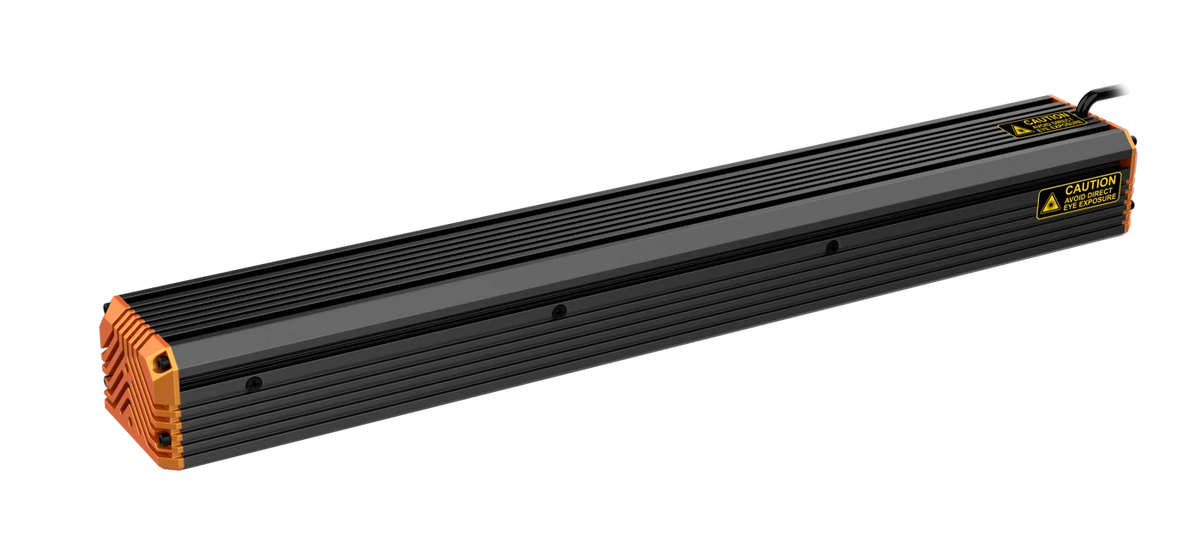

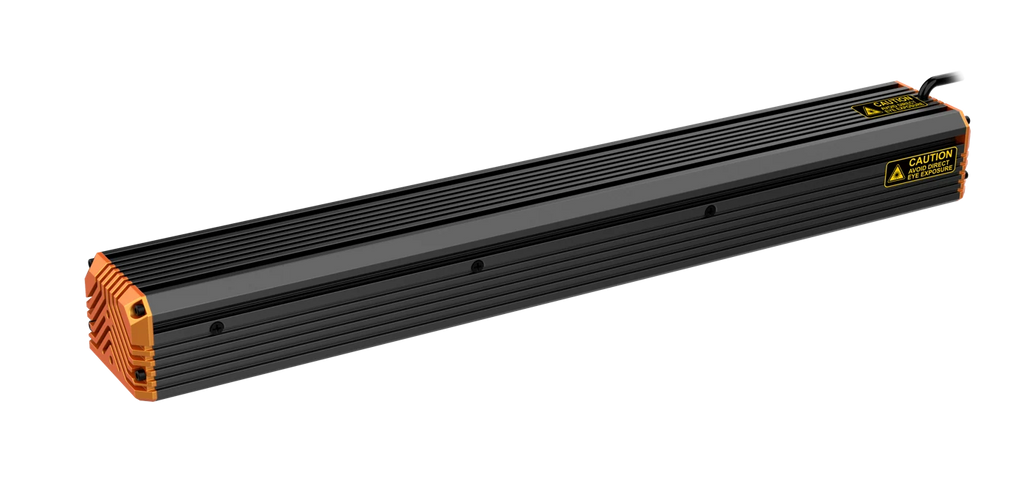

Bar Light, 1300 x 40 mm, White (LS-BAR-1240)
  • Bar Light, 1300 x 40 mm, White (LS-BAR-1240)

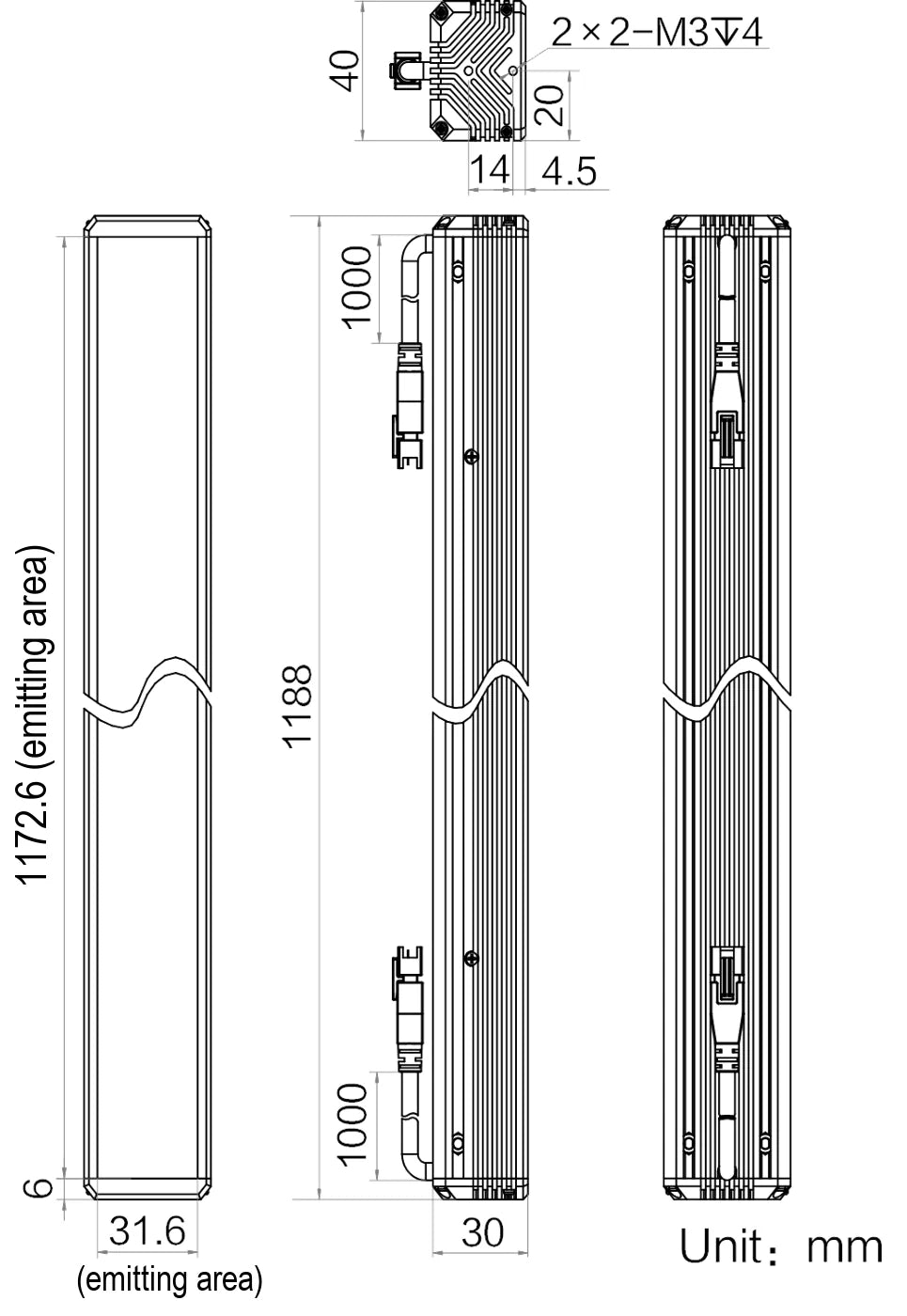

  • LS-BAR-1240 dimensions (mm)

Bar lights

Bar Light, 1300 x 40 mm, White (LS-BAR-1240)

Model LS-BAR-1240

  • ColourWhite
  • Emitting area1172.6 mm × 31.6 mm
  • Size1188 mm × 40 mm × 30 mm
  • Voltage24 VDC
  • Power116 W
$1,479.00

Ships in 2-3 weeks

2.9 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bar Light, 1300 x 40 mm, White (LS-BAR-1240)LS-BAR-1240

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Bar Light, 1300 x 40 mm, White. Freely adjustable illumination direction and angle Multi-side mounting

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1240
Cooling modeNatural cooling

Optics

Best working distance30 ~ 500 mm

Interfaces and I/O

Connector typeDual-channel SMR-03V-B
Cable length1 m

Light

ColorWhite
Color temperature6000 ~ 7500K
Emitting area dimension1172.6 mm × 31.6 mm
LED rows6
Diffuse plate includedPMMA

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power116 W
Input voltage24 VDC

Mechanical

Dimension1188 mm × 40 mm × 30 mm
Weight2 kg
Shipping weight (estimated)2.90 kg
